Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the ULF601CP from LabSupplies.com

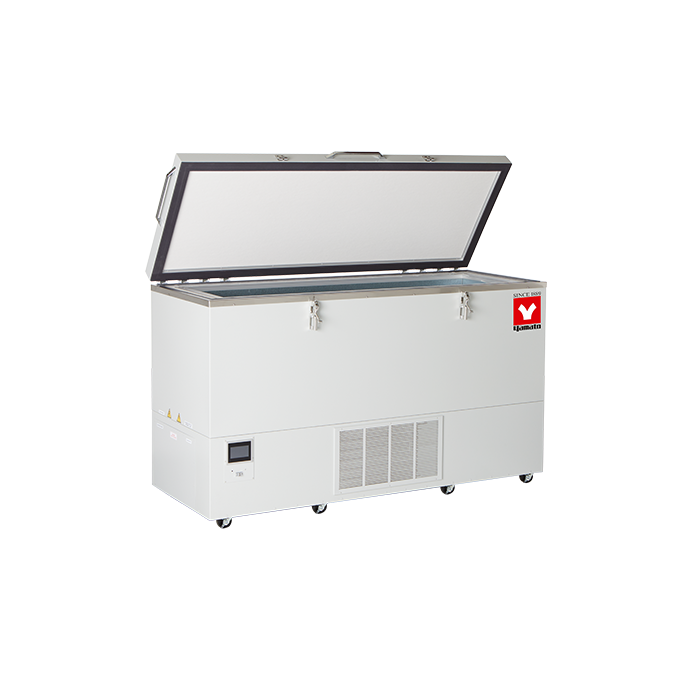

Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost Overview
The Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost (model ULF601CP) is a chest-style ultra-low laboratory freezer from Yamato Scientific. Holding 480 liters across 36 racks, it maintains chamber temperatures from -40°C to -85°C. LabSupplies.com supplies this unit as an authorized dealer. A touch-screen controller, audible and visual alarms, and battery-backed monitoring come standard.
Construction pairs a 14-gauge zinc-coated galvanized steel chamber with a 16-gauge steel exterior finished in powder-coated cool gray. Cascade refrigeration uses two hermetic compressors and CFC-free R-508B and R-404A refrigerants. Air-cooled condensing with two heavy-duty fans removes the need for liquid coolant. A 1/2-inch access port sits on the left cabinet wall with plugs.
Power options span 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz. Footprint measures 81.25 by 33.5 by 48.5 inches, and the freezer ships at 975 lbs. Manufactured in the USA, this unit carries UL Listed certification. Automatic power-failure recovery restarts operation after an outage.
Key Features
- Touch-screen controller: displays set point and chamber temperature, with multi-level security and a viewable temperature graph.
- Alarm system: battery-operated audible and visual signals on mechanical or electrical failure, plus over- and under-temperature settings, alarm silencing, and battery test switches.
- Remote notification: Hi/Low alarms send email and SMS alerts, with alarm-relay and power-failure dry contacts for remote hook-up.
- Data acquisition: data logging downloadable via USB or FTP, supported by USB and Ethernet ports.
- VNC remote access: monitor and control the freezer from a PC or smart device.
- Cascade refrigeration: two hermetic compressors with CFC- and HCFC-free refrigerants reach -85°C without liquid coolant.
How to Choose the Right Ultra-Low Freezer
Selecting an ultra-low freezer comes down to matching storage volume, temperature class, and site infrastructure to your sample workload. Weigh these axes before specifying a unit.
- Capacity: the 17 cu.ft. (480 L) chamber holds 36 racks, so confirm rack count and tube format against your sample inventory.
- Voltage: verify your circuit against the 115V, 208V, 230V, or 220V options to match available site power.
- Footprint: chest-style cabinets need overhead clearance for top-loading; confirm the 81.25 × 33.5 × 48.5 inch envelope fits your floor plan.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 17 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 480 L / 17 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 69" × 20" × 21" (175 × 50 × 53 cm) |
| Exterior Dimensions | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930463 |
| Shipping Weight | 975 lbs |
| Shipping Dimensions (L × W × H) | 84 × 42 × 58 in |
| Component Size | 17 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare ULF Series Models
| Model | Capacity | Temperature range | Racks | Interior (W × D × H) | Exterior |
|---|---|---|---|---|---|
| ULF001CP | 2 cu.ft. | -40°C to -85°C | 6 racks | 17" × 14" × 14" (43 × 35 × 35 cm) | 25.25" × 25.75" × 40" (64 × 65 × 101 cm) |
| ULF101CP | 3 cu.ft. | -40°C to -85°C | 8 racks | 24" × 12" × 18" (60 × 30 × 45 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| ULF201CP | 5 cu.ft. | -40°C to -85°C | 15 racks | 30" × 18" × 16" (76 × 45 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) |
| ULF301CP | 9 cu.ft. | -40°C to -85°C | 16 racks | 46" × 16" × 20" (116 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) |
| ULF401CP | 12 cu.ft. | -40°C to -85°C | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) |
| ULF501CP | 14 cu.ft. | -40°C to -85°C | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) |
| ULF601CP (this model) | 17 cu.ft. | -40°C to -85°C | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| ULF701CP | 21 cu.ft. | -40°C to -80°C | 36 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) |
| ULF801CP | 22 cu.ft. | -40°C to -85°C | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| ULF901CP | 27 cu.ft. | -40°C to -80°C | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| ULF-601CP | 797059930463 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | ULF-601CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.30.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato ULF Platinum Series Ultra-Low Freezer brochure (PDF, 290 KB)
- Yamato Scientific America product page
More in This Series
- Yamato ULF601UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Yamato ULF701U Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Yamato ULF701C Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
- Yamato ULF501UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Yamato ULF501CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Yamato ULF701UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
View all Ultra-Low Temperature Freezers →
Frequently Asked Questions
What temperature range does the ULF601CP maintain?
The ULF601CP maintains chamber temperatures from -40°C to -85°C. Cascade refrigeration with two hermetic compressors and CFC-free R-508B and R-404A refrigerants drives the deep-cold performance.
How much storage capacity does this freezer offer?
It provides 17 cu.ft. (480 L) of interior capacity holding up to 36 racks. Interior dimensions measure 69 × 20 × 21 inches (175 × 50 × 53 cm).
What voltage and power does the ULF601CP require?
The unit supports 115V, 208V, or 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm the configuration against your site circuit before ordering.
What materials is the cabinet made from?
The chamber is built from 14-gauge zinc-coated galvanized steel, while the exterior uses 16-gauge steel finished in powder-coated cool gray.
How does the freezer protect samples during a power failure?
A battery-operated alarm signals mechanical or electrical failure with audible and visual alerts, and an automatic timer restarts the unit after a power failure. Optional CO₂ and LN₂ back-up systems add further protection.
Can the ULF601CP be monitored remotely?
Yes. Hi/Low alarms send email and SMS notifications, data logs download via USB or FTP, and VNC remote access lets you monitor and control the freezer from a PC or smart device.
What is the UNSPSC code for the Yamato ULF601CP?
The Yamato ULF601CP is classified under UNSPSC 41103000 (ultra low freezer).
Is there a spec sheet or brochure for the Yamato ULF601CP?
Yes. The Yamato ULF Platinum Series Ultra-Low Freezer brochure (290 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato ULF601CP compare with the other ULF Series models?
Yamato builds this ULF Series line in 10 sizes: 2 cu.ft. (ULF001CP), 3 cu.ft. (ULF101CP), 5 cu.ft. (ULF201CP), 9 cu.ft. (ULF301CP), 12 cu.ft. (ULF401CP), 14 cu.ft. (ULF501CP), 17 cu.ft. (ULF601CP), 21 cu.ft. (ULF701CP), 22 cu.ft. (ULF801CP) and 27 cu.ft. (ULF901CP). The comparison table on this page lists capacity, temperature range, racks, interior (w × d × h) and exterior side by side.
Which alarms does the Yamato ULF601CP have?
Yamato lists these alarms for the ULF601CP: battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up.
What are the interior dimensions of the Yamato ULF601CP?
The Yamato ULF601CP chamber measures 69" × 20" × 21" (175 × 50 × 53 cm) inside (W × D × H).
How many storage racks does the Yamato ULF601CP hold?
Yamato rates the ULF601CP at 36 racks in 480 L / 17 cu.ft. of storage.
What refrigeration system does the Yamato ULF601CP use?
The Yamato ULF601CP uses cascade type — two hermetic compressors, CFC-free R-508B and R-404A (CFC- & HCFC-free) refrigerant and manual defrost.
What certifications does the Yamato ULF601CP carry?
Yamato lists the ULF601CP as UL Listed.
What optional accessories are available for the Yamato ULF601CP?
Yamato offers these options for the ULF601CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato ULF601CP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the ULF601CP.
What are the shipping dimensions and weight of the Yamato ULF601CP?
Yamato's shipping data lists the ULF601CP at 84 × 42 × 58 in and 975 lb packed.
