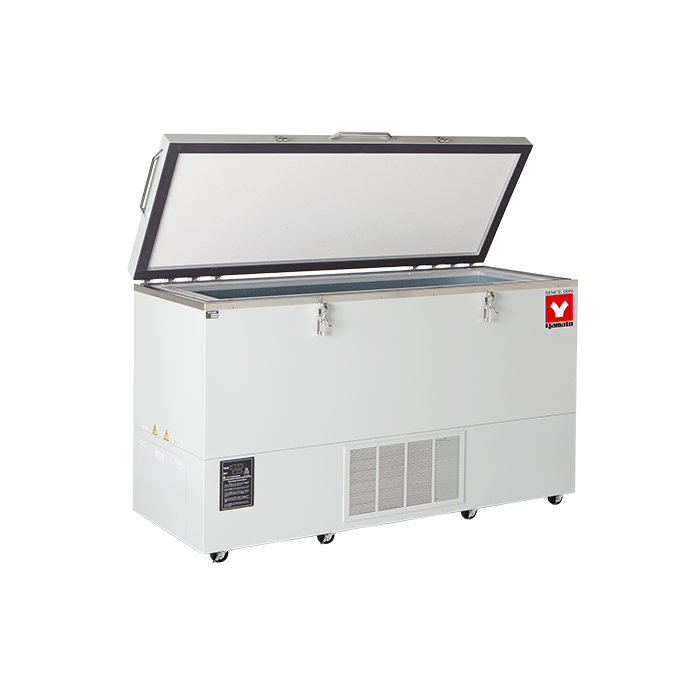

Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost Overview
The Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost (model ULF701C) is a Yamato Scientific ultra-low laboratory freezer delivering a -40°C to -80°C range across 21 cu.ft. of storage. Standard equipment covers a microprocessor digital controller, audible and visual alarms, remote alarm contacts, battery alarm back-up, and a 1/2-inch access port. LabSupplies.com supplies this freezer as an authorized dealer.
Construction pairs a 14-gauge zinc-coated galvanized steel chamber with a 16-gauge steel exterior finished in powder-coated cool gray. Refrigeration runs on a cascade system built around two hermetic compressors, charged with CFC-free R-508B and R-404A. An air-cooled condenser drives two heavy-duty fans, so no liquid coolant is required.
Electrical configurations span 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 91 × 36 × 49 inches at a shipping weight of 1,075 lbs. Built in the USA and UL Listed, this unit holds up to 36 racks within a 594 L interior.
Key Features
- Digital dual-display control: shows set point and chamber temperature, with a scan button for setting and a tamper-proof lockout.
- Cascade refrigeration: two hermetic compressors reach the -40°C to -80°C range using CFC-free R-508B and R-404A.
- Air-cooled condenser: two heavy-duty fans remove heat, eliminating any liquid coolant requirement.
- Battery-backed alarm system: audible and visual signals on mechanical or electrical failure, over- and under-temperature settings, alarm silencing, battery test switch, and a relay for remote hook-up.
- Automatic power failure recovery: a timer system restarts the unit after a power interruption.
- 36-rack capacity: 594 L of usable interior space within an 81" × 21.5" × 21" chamber.
How to Choose the Right Ultra-Low Freezer
Matching an ultra-low freezer to a lab depends on sample volume, the temperature your protocols demand, and the power available at the install site. Review these axes before specifying a unit.
- Capacity: 21 cu.ft. (594 L) and a 36-rack limit determine how many sample boxes you can consolidate into one footprint.
- Temperature range: a -40°C to -80°C span supports long-term storage of biologicals, enzymes, and other temperature-sensitive material.
- Control type: a digital dual-display controller with tamper-proof lockout protects set points from accidental changes.
- Voltage: confirm site power against the 115V, 208V, 230V (60 Hz) or 220V (50/60 Hz) single-phase options.
- Footprint: chest-style exterior dimensions of 91 × 36 × 49 inches and a 1,075 lb weight dictate floor space and load planning.
- Safety and continuity: battery-backed alarms, remote alarm contacts, and automatic power-failure recovery guard samples during faults.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 21 cu.ft. |
| Temperature Range | -40°C to -80°C |
| Defrost | Manual |
| Interior Capacity | 594 L / 21 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 81" × 21.5" × 21" (205 × 54 × 53 cm) |
| Exterior Dimensions | 91" × 36" × 49" (231 × 91 × 124 cm) |
| Temperature Control System | Digital control with dual display (set point and chamber temperature); scan button for temperature setting; tamper-proof lockout |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | Chart recorder; CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059929900 |
| Shipping Weight | 1075 lbs |
| Dimensions (L × W × H) | 101 × 43 × 53 in |
| Component Size | 21 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| ULF-701C | EA | EA |
Documentation
