Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the ULF101CP from LabSupplies.com

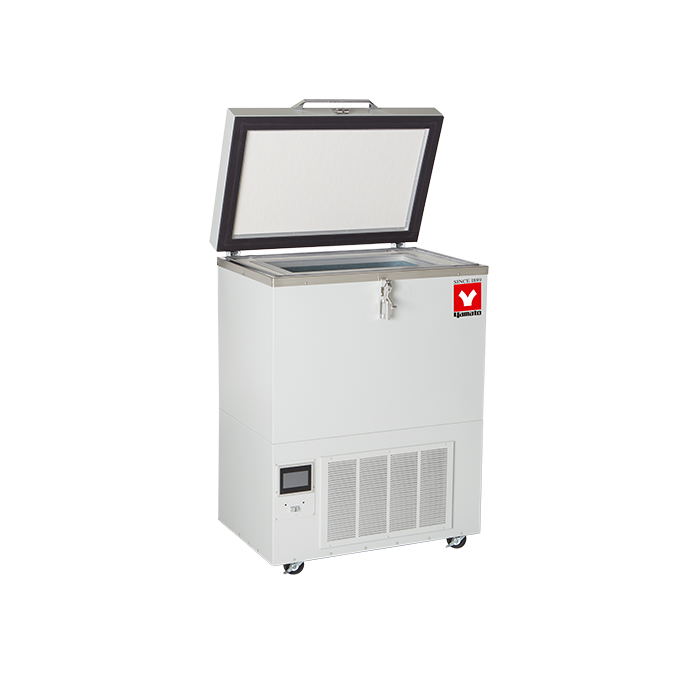

Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost Overview
Cascade refrigeration pairs two hermetic compressors with CFC-free R-508B and R-404A refrigerants, reaching ultra-low setpoints without liquid coolant. An air-cooled condenser uses two heavy-duty fans for heat rejection. The chamber is 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel powder coated cool gray. A 1/2-inch access port sits on the left-hand side with plugs.
Power options span 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz. Exterior dimensions measure 34.5 × 25.25 × 48 inches, with a shipping weight near 500 lbs. Built in the USA and UL Listed, the freezer arrives ready for installation. Automatic power-failure recovery restarts the unit after outages.
Key Features
- Touch-screen control: displays set point and chamber temperature, with Hi/Low alarms, a viewable temperature graph, and multi-level security.
- Connectivity and data logging: USB and Ethernet ports support data acquisition, downloads via USB or FTP, and VNC remote access from a PC or smart device.
- Alarm system: battery-operated audible and visual signals on mechanical or electrical failure, with over/under-temperature settings, silencing switch, and battery test switch.
- Remote notification options: email and SMS alerts, alarm-relay and power-failure dry contacts, and a relay for remote alarm hook-up.
- Cascade refrigeration: two hermetic compressors and CFC-free R-508B and R-404A refrigerants reach −85°C without liquid coolant.
How to Choose the Right Ultra-Low Freezer
Selecting an ultra-low freezer means matching storage volume, target temperature, and site infrastructure to your sample workflow. Weigh these axes before specifying a unit.
- Capacity: Match chamber volume and rack count to your sample inventory; this 3 cu.ft. chest holds up to 8 racks.
- Voltage: Verify available site power against the unit's 115V, 208V, and 230V options to avoid installation delays.
- Footprint: Check exterior dimensions and weight against your floor space and load limits before delivery.
- Safety backup: Consider CO₂ or LN₂ backup and battery-backed alarms where sample-loss risk is high.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 3 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 83 L / 3 cu.ft. |
| Rack Capacity | 8 racks |
| Interior Dimensions | 24" × 12" × 18" (60 × 30 × 45 cm) |
| Exterior Dimensions | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930418 |
| Shipping Weight | 500 lbs |
| Shipping Dimensions (L × W × H) | 46 × 41 × 55 in |
| Component Size | 3 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare ULF Series Models
| Model | Capacity | Temperature range | Racks | Interior (W × D × H) | Exterior |
|---|---|---|---|---|---|
| ULF001CP | 2 cu.ft. | -40°C to -85°C | 6 racks | 17" × 14" × 14" (43 × 35 × 35 cm) | 25.25" × 25.75" × 40" (64 × 65 × 101 cm) |
| ULF101CP (this model) | 3 cu.ft. | -40°C to -85°C | 8 racks | 24" × 12" × 18" (60 × 30 × 45 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| ULF201CP | 5 cu.ft. | -40°C to -85°C | 15 racks | 30" × 18" × 16" (76 × 45 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) |
| ULF301CP | 9 cu.ft. | -40°C to -85°C | 16 racks | 46" × 16" × 20" (116 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) |
| ULF401CP | 12 cu.ft. | -40°C to -85°C | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) |
| ULF501CP | 14 cu.ft. | -40°C to -85°C | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) |
| ULF601CP | 17 cu.ft. | -40°C to -85°C | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| ULF701CP | 21 cu.ft. | -40°C to -80°C | 36 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) |
| ULF801CP | 22 cu.ft. | -40°C to -85°C | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| ULF901CP | 27 cu.ft. | -40°C to -80°C | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| ULF-101CP | 797059930418 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | ULF-101CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.30.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato ULF Platinum Series Ultra-Low Freezer brochure (PDF, 290 KB)
- Yamato Scientific America product page
More in This Series
- Yamato ULF001CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Yamato ULF201CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 5 cu.ft., Manual Defrost
- Yamato ULF301C Chest Style Ultra Low Freezers -40°C To -85°C, 9 cu.ft., Manual Defrost
- Yamato ULF201UN Undercounter Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
- Yamato ULF101UN Undercounter Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Yamato ULF401C Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
View all Ultra-Low Temperature Freezers →
Frequently Asked Questions
What temperature range does the ULF101CP reach?
The ULF101CP operates from −40°C to −85°C. Cascade refrigeration with two hermetic compressors and CFC-free R-508B and R-404A refrigerants delivers ultra-low setpoints without liquid coolant.
How much sample capacity does this freezer hold?
Interior capacity is 83 L (3 cu.ft.), accommodating up to 8 racks. Interior dimensions measure 24 × 12 × 18 inches, and exterior dimensions are 34.5 × 25.25 × 48 inches.
What power supply does the ULF101CP require?
Electrical options include 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm your site voltage before ordering.
What materials are used in the construction?
The chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel powder coated cool gray. An air-cooled condenser with two heavy-duty fans rejects heat without liquid coolant.
How does the freezer respond to a power failure?
An automatic timer system restarts the unit after a power failure. Battery-backed alarms provide audible and visual signals, while power-failure dry contacts enable remote notification.
Can I monitor the ULF101CP remotely?
Yes. Touch-screen control supports email and SMS notifications, USB or FTP data downloads, and VNC remote access from a PC or smart device through the Ethernet port.
What is the UNSPSC code for the Yamato ULF101CP?
The Yamato ULF101CP is classified under UNSPSC 41103000 (ultra low freezer).
Where is the Yamato ULF101CP manufactured?
Yamato Scientific lists USA as the country of origin for the ULF101CP.
Is there a spec sheet or brochure for the Yamato ULF101CP?
Yes. The Yamato ULF Platinum Series Ultra-Low Freezer brochure (290 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato ULF101CP compare with the other ULF Series models?
Yamato builds this ULF Series line in 10 sizes: 2 cu.ft. (ULF001CP), 3 cu.ft. (ULF101CP), 5 cu.ft. (ULF201CP), 9 cu.ft. (ULF301CP), 12 cu.ft. (ULF401CP), 14 cu.ft. (ULF501CP), 17 cu.ft. (ULF601CP), 21 cu.ft. (ULF701CP), 22 cu.ft. (ULF801CP) and 27 cu.ft. (ULF901CP). The comparison table on this page lists capacity, temperature range, racks, interior (w × d × h) and exterior side by side.
Which alarms does the Yamato ULF101CP have?
Yamato lists these alarms for the ULF101CP: battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up.
What are the interior dimensions of the Yamato ULF101CP?
The Yamato ULF101CP chamber measures 24" × 12" × 18" (60 × 30 × 45 cm) inside (W × D × H).
How many storage racks does the Yamato ULF101CP hold?
Yamato rates the ULF101CP at 8 racks in 83 L / 3 cu.ft. of storage.
What refrigeration system does the Yamato ULF101CP use?
The Yamato ULF101CP uses cascade type — two hermetic compressors, CFC-free R-508B and R-404A (CFC- & HCFC-free) refrigerant and manual defrost.
What certifications does the Yamato ULF101CP carry?
Yamato lists the ULF101CP as UL Listed.
What optional accessories are available for the Yamato ULF101CP?
Yamato offers these options for the ULF101CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the shipping dimensions and weight of the Yamato ULF101CP?
Yamato's shipping data lists the ULF101CP at 46 × 41 × 55 in and 500 lb packed.
