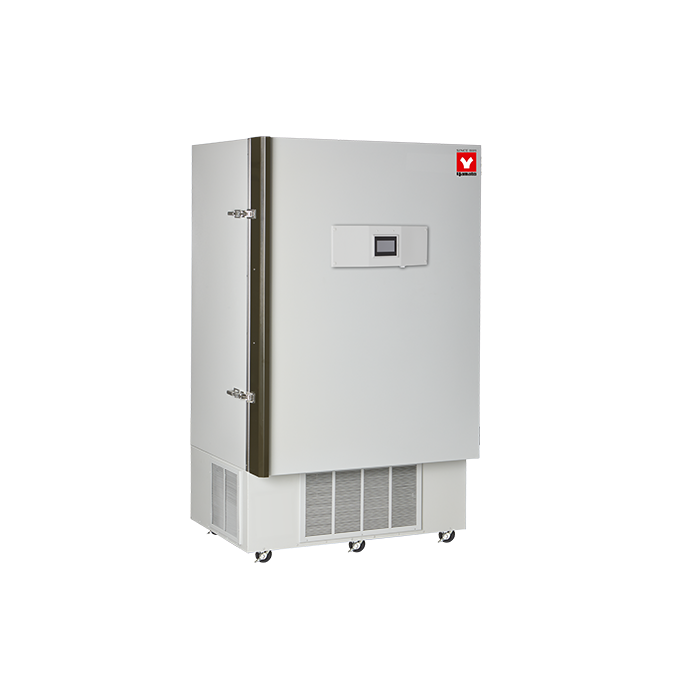

Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost Overview
The Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost (model ULF701UP) is an upright laboratory ultra-low freezer from Yamato Scientific built for long-term sample preservation. Rated across a -40°C to -85°C range, the cabinet provides 710 L (25 cu.ft.) of usable interior capacity. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
Cascade refrigeration pairs two hermetic compressors with CFC-free R-508B and R-404A refrigerants for stable pull-down without liquid coolant. An air-cooled condenser rejects heat using two heavy-duty fans. Chamber construction is 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel powder-coated in cool gray. Four adjustable shelves create five compartments and accept up to 30 racks.
Power options span 115V, 208V, and 230V at 60 Hz single-phase, plus a 220V 50/60 Hz single-phase configuration. Exterior dimensions measure 50" × 37" × 79.5", with a unit weight of 1,125 lbs. Made in the USA and UL Listed, the freezer integrates a touch-screen controller, audible and visual alarms, battery back-up, USB and Ethernet ports, and a 1/2" access port.
Key Features
- Touch-screen digital control: displays set point and chamber temperature, with viewable temperature graph, data logging, multi-level security, and VNC remote access via PC or smart devices.
- Comprehensive alarm system: battery-operated audible and visual signals on mechanical or electrical failure, with over- and under-temperature settings, silencing switch, and battery test switch.
- Cascade refrigeration: two hermetic compressors run CFC-free R-508B and R-404A refrigerants, supported by an air-cooled, dual-fan condenser that needs no liquid coolant.
- Connectivity and monitoring: USB and Ethernet ports, data acquisition, Hi/Low alarm with email and SMS notification, plus alarm-relay and power-failure dry contacts for remote hook-up.
- Power-failure recovery: an automatic timer system restarts the unit after a power interruption, backed by alarm battery back-up.
- Sample organization and access: four adjustable shelves form five compartments holding up to 30 racks, with a 1/2" porthole and plugs in the left-hand cabinet wall.
How to Choose the Right Ultra-Low Freezer
Selecting an ultra-low freezer comes down to matching sample volume, target temperature, and your facility's power and footprint constraints. Weigh the following axes .
- Capacity: match interior volume and rack count to your inventory; this unit offers 710 L (25 cu.ft.) and holds up to 30 racks across five compartments.
- Temperature range: confirm the cabinet reaches your storage class; this model operates from -40°C to -85°C for long-term biological and reagent preservation.
- Control and monitoring: decide whether you need touch-screen control, data logging, and remote email/SMS alarms for compliance and audit trails.
- Voltage and site power: verify your circuit before ordering, since this freezer is offered in 115V, 208V, and 230V 60 Hz, plus 220V 50/60 Hz single-phase.
- Footprint and weight: plan placement around the 50" × 37" × 79.5" exterior and 1,125 lb unit weight, including clearance for the air-cooled condenser fans.
- Redundancy and safety: consider optional CO₂ and LN₂ back-up systems and battery alarm back-up where sample loss carries high risk.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 25 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 710 L / 25 cu.ft. |
| Rack Capacity | 30 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 34" × 25" × 51.25" (86 × 63 × 130 cm) |
| Exterior Dimensions | 50" × 37" × 79.5" (127 × 93 × 201 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930531 |
| Shipping Weight | 1125 lbs |
| Dimensions (L × W × H) | 53 × 43 × 86 in |
| Component Size | 25 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| ULF-701UP | EA | EA |
Documentation
More in This Series
- Chest Style Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 5 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 9 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -80°C, 28 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -80°C, 31 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 30 cu.ft., Manual Defrost
- Undercounter Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Undercounter Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every ULF701UP ships as a genuine factory unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists are available for spec and configuration questions.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Ships from USA: domestic fulfillment for lab and research facilities.
- Lab-equipment specialists: direct support for temperature, voltage, and configuration questions.
Frequently Asked Questions
What temperature range does the ULF701UP reach?
The ULF701UP operates from -40°C to -85°C. Cascade refrigeration with two hermetic compressors and CFC-free R-508B and R-404A refrigerants sustains ultra-low temperatures for long-term sample storage.
How much storage capacity and how many racks does this freezer hold?
It provides 710 L (25 cu.ft.) of interior capacity and holds up to 30 racks. Four adjustable shelves divide the chamber into five compartments, with interior dimensions of 34" × 25" × 51.25".
What voltage and power does the ULF701UP require?
The unit is offered in 115V, 208V, and 230V at 60 Hz single-phase, plus a 220V 50/60 Hz single-phase configuration. Confirm your circuit before ordering.
What is the freezer constructed from?
The chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel powder-coated in cool gray. An air-cooled, dual-fan condenser handles heat rejection without liquid coolant.
What monitoring and alarm features are included?
A touch-screen controller displays set point and chamber temperature with data logging, multi-level security, and VNC remote access. Hi/Low alarms send email and SMS notifications, with battery back-up, dry contacts, and automatic power-failure recovery.
What are the exterior dimensions and shipping weight?
Exterior dimensions are 50" × 37" × 79.5" (127 × 93 × 201 cm), and the unit weighs 1,125 lbs. Plan placement with clearance for the air-cooled condenser fans.
