Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the ULF801CP from LabSupplies.com

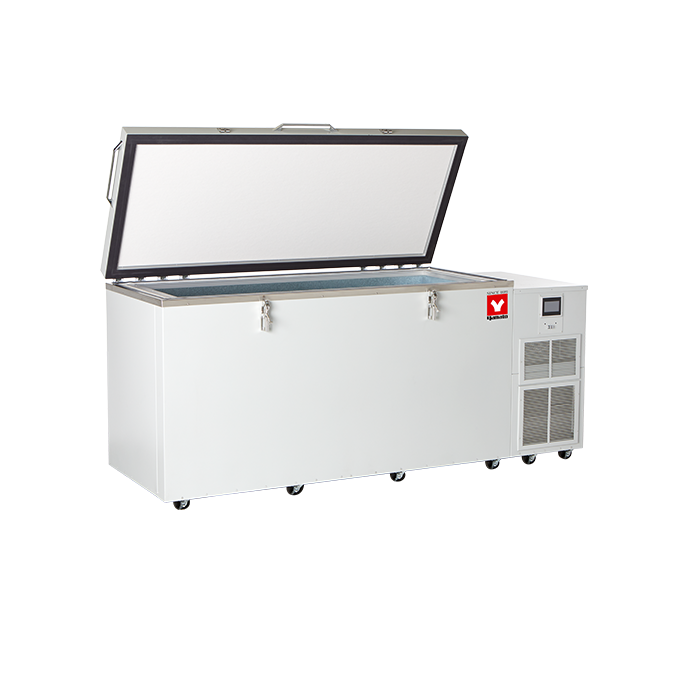

Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost Overview
The Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost (model ULF801CP) from Yamato Scientific is a cascade-cooled laboratory chest freezer holding 626 liters (22 cu.ft.) across a -40°C to -85°C range. A touch-screen digital controller manages set point, alarms, and data logging. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
Chamber walls use 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel finished in powder-coated cool gray. Cascade refrigeration pairs two hermetic compressors with CFC-free R-508B and HCFC-free R-404A refrigerants. Air-cooled condensing relies on two heavy-duty fans, so no liquid coolant is required.
Power options span 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. The cabinet measures 98 inches wide externally and weighs 1,075 pounds. Made in the USA, this freezer is UL Listed and supports up to 36 storage racks.
Key Features
- Touch-Screen Control: digital controller displays set point and chamber temperature, with multi-level security and a viewable temperature graph.
- Cascade Refrigeration: two hermetic compressors using CFC-free R-508B and HCFC-free R-404A reach the full -40°C to -85°C range.
- Comprehensive Alarms: Hi/Low audible and visual alarms with email and SMS notification, alarm-relay and power-failure dry contacts, plus battery back-up.
- Data Acquisition & Remote Access: data logging downloadable via USB or FTP, with VNC remote viewing from a PC or smart device through Ethernet.
- Power-Failure Recovery: an automatic timer system restarts the unit after power is restored.
How to Choose the Right Ultra-Low Freezer
Matching an ultra-low freezer to your lab means balancing sample volume, the temperature your protocol demands, and the power your facility can supply. Use these axes to qualify a unit before purchase.
- Capacity: rated storage of 626 L (22 cu.ft.) and up to 36 racks determines how many sample boxes or vials you can hold without a second unit.
- Voltage: confirm your circuit against the 115V/208V/230V at 60 Hz or 220V at 50/60 Hz single-phase options before installation.
- Footprint: chest-style cabinets need floor clearance for the 98-inch external width and lid access from above.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 22 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 626 L / 22 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 67" × 19" × 30" (170 × 48 × 76 cm) |
| Exterior Dimensions | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930487 |
| Shipping Weight | 1075 lbs |
| Shipping Dimensions (L × W × H) | 101 × 43 × 53 in |
| Component Size | 22 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare ULF Series Models
| Model | Capacity | Temperature range | Racks | Interior (W × D × H) | Exterior |
|---|---|---|---|---|---|
| ULF001CP | 2 cu.ft. | -40°C to -85°C | 6 racks | 17" × 14" × 14" (43 × 35 × 35 cm) | 25.25" × 25.75" × 40" (64 × 65 × 101 cm) |
| ULF101CP | 3 cu.ft. | -40°C to -85°C | 8 racks | 24" × 12" × 18" (60 × 30 × 45 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| ULF201CP | 5 cu.ft. | -40°C to -85°C | 15 racks | 30" × 18" × 16" (76 × 45 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) |
| ULF301CP | 9 cu.ft. | -40°C to -85°C | 16 racks | 46" × 16" × 20" (116 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) |
| ULF401CP | 12 cu.ft. | -40°C to -85°C | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) |
| ULF501CP | 14 cu.ft. | -40°C to -85°C | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) |
| ULF601CP | 17 cu.ft. | -40°C to -85°C | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| ULF701CP | 21 cu.ft. | -40°C to -80°C | 36 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) |
| ULF801CP (this model) | 22 cu.ft. | -40°C to -85°C | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| ULF901CP | 27 cu.ft. | -40°C to -80°C | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| ULF-801CP | 797059930487 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | ULF-801CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.30.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato ULF Platinum Series Ultra-Low Freezer brochure (PDF, 290 KB)
- Yamato Scientific America product page
More in This Series
- Yamato ULF901CP Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Yamato ULF901UP Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 30 cu.ft., Manual Defrost
- Yamato ULF901C Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Yamato ULF801UP Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 28 cu.ft., Manual Defrost
- Yamato ULF801C Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Yamato ULF701CP Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
View all Ultra-Low Temperature Freezers →
Frequently Asked Questions
What temperature range does the Yamato ULF801CP reach?
The ULF801CP operates from -40°C to -85°C. Cascade refrigeration with two hermetic compressors achieves this range using CFC-free R-508B and HCFC-free R-404A refrigerants.
How much storage capacity does this freezer provide?
Interior capacity is 626 liters (22 cu.ft.), accommodating up to 36 storage racks. Interior dimensions are 67" × 19" × 30" (170 × 48 × 76 cm).
What electrical supply does the ULF801CP require?
It accepts 115V, 208V, or 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Confirm your circuit matches the configuration ordered before installation.
What is the freezer's external footprint and weight?
Exterior dimensions are 98" × 36" × 43.5" (248 × 91 × 110 cm), and the unit weighs 1,075 lbs. Allow floor clearance for the chest-style lid opening from above.
What materials is the cabinet built from?
The chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel finished in powder-coated cool gray. An air-cooled condenser with two fans requires no liquid coolant.
How does the unit protect samples during a power failure?
Battery-backed audible and visual alarms signal mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, and a remote alarm relay. An automatic timer restarts the unit when power returns.
What is the UNSPSC code for the Yamato ULF801CP?
The Yamato ULF801CP is classified under UNSPSC 41103000 (ultra low freezer).
Where is the Yamato ULF801CP manufactured?
Yamato Scientific lists USA as the country of origin for the ULF801CP.
Is there a spec sheet or brochure for the Yamato ULF801CP?
Yes. The Yamato ULF Platinum Series Ultra-Low Freezer brochure (290 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato ULF801CP compare with the other ULF Series models?
Yamato builds this ULF Series line in 10 sizes: 2 cu.ft. (ULF001CP), 3 cu.ft. (ULF101CP), 5 cu.ft. (ULF201CP), 9 cu.ft. (ULF301CP), 12 cu.ft. (ULF401CP), 14 cu.ft. (ULF501CP), 17 cu.ft. (ULF601CP), 21 cu.ft. (ULF701CP), 22 cu.ft. (ULF801CP) and 27 cu.ft. (ULF901CP). The comparison table on this page lists capacity, temperature range, racks, interior (w × d × h) and exterior side by side.
Which alarms does the Yamato ULF801CP have?
Yamato lists these alarms for the ULF801CP: battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up.
What are the interior dimensions of the Yamato ULF801CP?
The Yamato ULF801CP chamber measures 67" × 19" × 30" (170 × 48 × 76 cm) inside (W × D × H).
How many storage racks does the Yamato ULF801CP hold?
Yamato rates the ULF801CP at 36 racks in 626 L / 22 cu.ft. of storage.
What refrigeration system does the Yamato ULF801CP use?
The Yamato ULF801CP uses cascade type — two hermetic compressors, CFC-free R-508B and R-404A (CFC- & HCFC-free) refrigerant and manual defrost.
What certifications does the Yamato ULF801CP carry?
Yamato lists the ULF801CP as UL Listed.
What optional accessories are available for the Yamato ULF801CP?
Yamato offers these options for the ULF801CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato ULF801CP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the ULF801CP.
What are the shipping dimensions and weight of the Yamato ULF801CP?
Yamato's shipping data lists the ULF801CP at 101 × 43 × 53 in and 1075 lb packed.
