Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the ULF501CP from LabSupplies.com

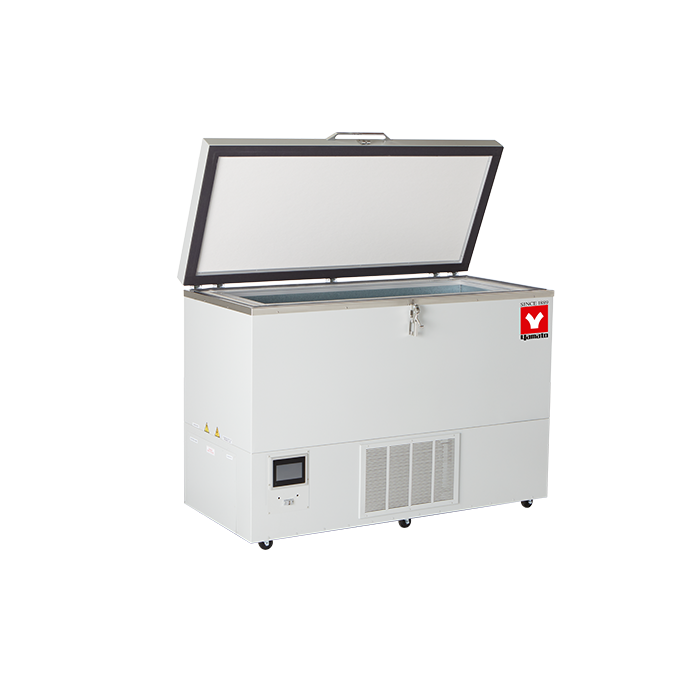

Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost Overview
Construction pairs a 14-gauge zinc-coated galvanized steel chamber with a 16-gauge steel exterior finished in powder-coated cool gray. Two hermetic compressors drive the cascade refrigeration system, using CFC-free R-508B and R-404A refrigerants. An air-cooled condenser with two heavy-duty fans removes heat, so no liquid coolant is required. A 1/2" access port sits on the left-hand side with plugs.
Electrical options cover 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 72.5" × 33" × 47.5", and shipping weight is 900 lbs. Made in the USA, the unit carries UL Listed certification. Automatic power-failure recovery restarts the freezer after an outage.
Key Features
- Touch-screen controller: displays set point and chamber temperature, with multi-level security and a viewable temperature graph.
- Alarm system: battery-operated audible and visual signal on mechanical or electrical failure, with over- and under-temperature settings, silencing switch, battery test switch, and a relay for remote hook-up.
- Data and connectivity: USB port, ethernet port, FTP and USB data logging, plus email and SMS notifications and VNC remote access from a PC or smart device.
- Cascade refrigeration: two hermetic compressors with CFC-free R-508B and R-404A, cooled by an air-cooled condenser with two heavy-duty fans.
- Battery back-up: alarm battery back-up keeps monitoring active during power interruptions, and an automatic timer restarts the unit after a power failure.
How to Choose the Right Ultra-Low Freezer
Selecting an ultra-low freezer comes down to matching storage volume, temperature class, control depth, and site power to your sample protocols. Use the criteria below to confirm the unit fits both the workflow and the facility.
- Capacity: verify usable interior volume and rack count against your sample inventory; this model holds 14 cu.ft. (400 L) and accepts 30 racks.
- Voltage and site power: match the available circuit, since this unit offers 115V, 208V, 230V at 60 Hz and 220V at 50/60 Hz single-phase.
- Footprint and weight: measure your space and floor rating against the 72.5" × 33" × 47.5" exterior and 900 lb shipping weight.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 14 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 400 L / 14 cu.ft. |
| Rack Capacity | 30 racks |
| Interior Dimensions | 62" × 20" × 20" (157 × 50 × 50 cm) |
| Exterior Dimensions | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930456 |
| Shipping Weight | 900 lbs |
| Shipping Dimensions (L × W × H) | 77 × 42 × 55 in |
| Component Size | 14 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare ULF Series Models
| Model | Capacity | Temperature range | Racks | Interior (W × D × H) | Exterior |
|---|---|---|---|---|---|
| ULF001CP | 2 cu.ft. | -40°C to -85°C | 6 racks | 17" × 14" × 14" (43 × 35 × 35 cm) | 25.25" × 25.75" × 40" (64 × 65 × 101 cm) |
| ULF101CP | 3 cu.ft. | -40°C to -85°C | 8 racks | 24" × 12" × 18" (60 × 30 × 45 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| ULF201CP | 5 cu.ft. | -40°C to -85°C | 15 racks | 30" × 18" × 16" (76 × 45 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) |
| ULF301CP | 9 cu.ft. | -40°C to -85°C | 16 racks | 46" × 16" × 20" (116 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) |
| ULF401CP | 12 cu.ft. | -40°C to -85°C | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) |
| ULF501CP (this model) | 14 cu.ft. | -40°C to -85°C | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) |
| ULF601CP | 17 cu.ft. | -40°C to -85°C | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| ULF701CP | 21 cu.ft. | -40°C to -80°C | 36 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) |
| ULF801CP | 22 cu.ft. | -40°C to -85°C | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| ULF901CP | 27 cu.ft. | -40°C to -80°C | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| ULF-501CP | 797059930456 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | ULF-501CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.30.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato ULF Platinum Series Ultra-Low Freezer brochure (PDF, 290 KB)
- Yamato Scientific America product page
More in This Series
- Yamato ULF501UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Yamato ULF701U Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Yamato ULF401UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost
- Yamato ULF401CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Yamato ULF601U Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Yamato ULF601C Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
View all Ultra-Low Temperature Freezers →
Frequently Asked Questions
What temperature range does the ULF501CP reach?
The ULF501CP operates from -40°C to -85°C. Cascade refrigeration with two hermetic compressors and CFC-free R-508B and R-404A refrigerants maintains this ultra-low range for long-term sample storage.
What is the storage capacity and footprint?
Interior capacity is 14 cu.ft. (400 L) with room for 30 racks. Interior dimensions are 62" × 20" × 20" and exterior dimensions are 72.5" × 33" × 47.5", with a shipping weight of 900 lbs.
What voltage and power does this freezer require?
The unit supports 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm the available circuit at your installation site before ordering.
What materials are used in construction?
The chamber is 14-gauge zinc-coated galvanized steel and the exterior is 16-gauge steel finished in powder-coated cool gray. An air-cooled condenser eliminates the need for liquid coolant.
Does this unit have manual or automatic defrost?
The ULF501CP uses manual defrost. Automatic power-failure recovery restarts the freezer after an outage, and battery back-up keeps the alarm system active during interruptions.
What monitoring and alarm features are included?
The freezer includes a touch-screen controller, audible and visual alarms with over- and under-temperature settings, a remote alarm relay, USB and ethernet data logging, email and SMS notifications, and VNC remote access.
What is the UNSPSC code for the Yamato ULF501CP?
The Yamato ULF501CP is classified under UNSPSC 41103000 (ultra low freezer).
Where is the Yamato ULF501CP manufactured?
Yamato Scientific lists USA as the country of origin for the ULF501CP.
Is there a spec sheet or brochure for the Yamato ULF501CP?
Yes. The Yamato ULF Platinum Series Ultra-Low Freezer brochure (290 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato ULF501CP compare with the other ULF Series models?
Yamato builds this ULF Series line in 10 sizes: 2 cu.ft. (ULF001CP), 3 cu.ft. (ULF101CP), 5 cu.ft. (ULF201CP), 9 cu.ft. (ULF301CP), 12 cu.ft. (ULF401CP), 14 cu.ft. (ULF501CP), 17 cu.ft. (ULF601CP), 21 cu.ft. (ULF701CP), 22 cu.ft. (ULF801CP) and 27 cu.ft. (ULF901CP). The comparison table on this page lists capacity, temperature range, racks, interior (w × d × h) and exterior side by side.
What are the interior dimensions of the Yamato ULF501CP?
The Yamato ULF501CP chamber measures 62" × 20" × 20" (157 × 50 × 50 cm) inside (W × D × H).
How many storage racks does the Yamato ULF501CP hold?
Yamato rates the ULF501CP at 30 racks in 400 L / 14 cu.ft. of storage.
What refrigeration system does the Yamato ULF501CP use?
The Yamato ULF501CP uses cascade type — two hermetic compressors, CFC-free R-508B and R-404A (CFC- & HCFC-free) refrigerant and manual defrost.
What certifications does the Yamato ULF501CP carry?
Yamato lists the ULF501CP as UL Listed.
What optional accessories are available for the Yamato ULF501CP?
Yamato offers these options for the ULF501CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato ULF501CP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the ULF501CP.
What are the shipping dimensions and weight of the Yamato ULF501CP?
Yamato's shipping data lists the ULF501CP at 77 × 42 × 55 in and 900 lb packed.
