Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the ULF401UP from LabSupplies.com

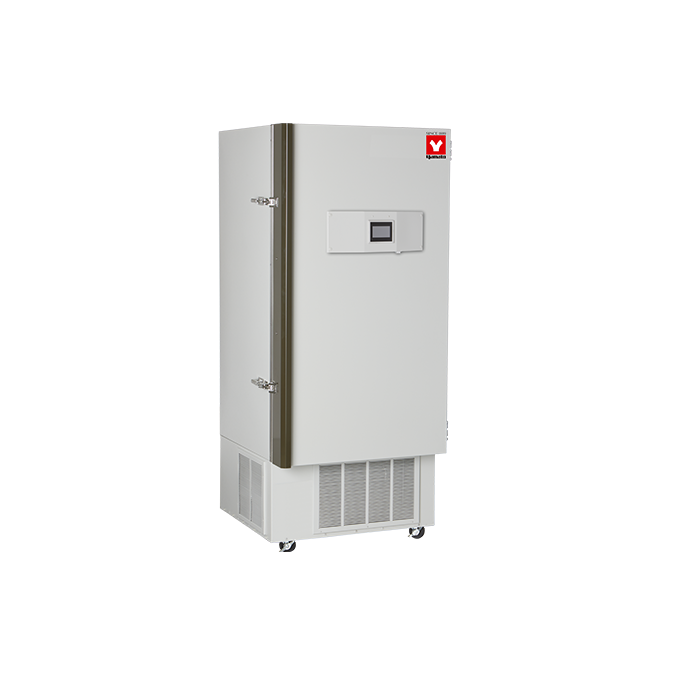

Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost Overview
The Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost (model ULF401UP) is an ultra-low laboratory freezer from Yamato Scientific, sold by LabSupplies.com as an authorized dealer. This upright unit holds 13 cu.ft. across five compartments and reaches -40°C to -85°C. A touch-screen controller manages set points, alarms, data logging, and remote access through USB, Ethernet, and FTP.
Construction pairs a 14-gauge zinc-coated galvanized steel chamber with a 16-gauge steel exterior finished in powder-coated cool gray. Cascade refrigeration uses two hermetic compressors charged with CFC-free R-508B and R-404A. Air-cooled condensing with two heavy-duty fans removes any need for liquid coolant. Four adjustable shelves create five compartments and support up to 15 racks.
Electrical options span 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 35" × 34.5" × 79.5", while shipping weight runs 850 lbs. Made in USA and UL Listed, the unit adds battery-backed alarms, dry-contact relays, and an automatic power-failure recovery timer.
Key Features
- Touch-screen control: displays set point and chamber temperature with a viewable temperature graph and multi-level security.
- Hi/Low alarm with notifications: sends email and SMS alerts, plus alarm-relay and power-failure dry contacts for remote hook-up.
- Battery-backed alarm system: emits audible and visual signals on mechanical or electrical failure, with over/under-temperature settings, silencing switch, and battery test switch.
- Cascade refrigeration: two hermetic compressors and air-cooled condensing with two heavy-duty fans, using CFC-free R-508B and R-404A.
- Data acquisition and remote access: data logging downloadable via USB or FTP, plus VNC remote access from PC or smart devices.
How to Choose the Right Ultra-Low Freezer
Matching an ultra-low freezer to your lab depends on sample volume, target temperature, site power, and the monitoring your protocols require. Weigh these axes.
- Voltage and site power: verify your outlet matches the 115V, 208V, or 230V 60 Hz option before delivery to avoid install delays.
- Footprint: exterior dimensions of 35" × 34.5" × 79.5" and 850 lbs require a planned floor location with clearance for the air-cooled condenser.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 13 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 370 L / 13 cu.ft. |
| Rack Capacity | 15 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 20" × 22" × 51.25" (50 × 55 × 130 cm) |
| Exterior Dimensions | 35" × 34.5" × 79.5" (88 × 87 × 201 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Cascade type — two hermetic compressors |
| Refrigerant | CFC-free R-508B and R-404A (CFC- & HCFC-free) |
| Condenser | Air-cooled with two heavy-duty fans; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Power Failure Recovery | Automatic timer system restarts the unit after a power failure |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930500 |
| Shipping Weight | 850 lbs |
| Shipping Dimensions (L × W × H) | 46 × 43 × 86 in |
| Component Size | 13 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare ULF Series Models
| Model | Capacity | Temperature range | Racks | Interior (W × D × H) | Exterior |
|---|---|---|---|---|---|
| ULF401UP (this model) | 13 cu.ft. | -40°C to -85°C | 15 racks | 20" × 22" × 51.25" (50 × 55 × 130 cm) | 35" × 34.5" × 79.5" (88 × 87 × 201 cm) |
| ULF501UP | 18 cu.ft. | -40°C to -85°C | 20 racks | 23" × 26" × 51.25" (58 × 66 × 130 cm) | 40" × 36" × 79.5" (101 × 91 × 201 cm) |
| ULF601UP | 22 cu.ft. | -40°C to -85°C | 25 racks | 28.5" × 26" × 51.25" (72 × 66 × 130 cm) | 43" × 37" × 79.5" (109 × 93 × 201 cm) |
| ULF701UP | 25 cu.ft. | -40°C to -85°C | 30 racks | 34" × 25" × 51.25" (86 × 63 × 130 cm) | 50" × 37" × 79.5" (127 × 93 × 201 cm) |
| ULF801UP | 28 cu.ft. | -40°C to -80°C | 30 racks | 38" × 25" × 51.25" (96 × 63 × 130 cm) | 54" × 37" × 79.5" (137 × 93 × 201 cm) |
| ULF901UP | 30 cu.ft. | -40°C to -80°C | 35 racks | 42" × 25" × 51.25" (106 × 63 × 130 cm) | 60.5" × 37" × 79.5" (153 × 93 × 201 cm) |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| ULF-401UP | 797059930500 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | ULF-401UP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.40.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato ULF Platinum Series Ultra-Low Freezer brochure (PDF, 290 KB)
- Yamato Scientific America product page
More in This Series
- Yamato ULF501CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Yamato ULF501UP Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Yamato ULF401CP Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Yamato ULF701U Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Yamato ULF601U Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Yamato ULF601C Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
View all Ultra-Low Temperature Freezers →
Frequently Asked Questions
What temperature range does the ULF401UP reach?
The ULF401UP operates from -40°C to -85°C. Cascade refrigeration with two hermetic compressors and CFC-free R-508B and R-404A refrigerants delivers this ultra-low range.
How much storage capacity does this freezer provide?
It offers 13 cu.ft. (370 L) of interior capacity. Four adjustable shelves create five compartments and support up to 15 racks, with interior dimensions of 20" × 22" × 51.25".
What voltage and power does the ULF401UP require?
Electrical options include 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm your outlet matches the chosen voltage before delivery.
What is the cabinet made of?
The chamber is 14-gauge zinc-coated galvanized steel. The exterior is 16-gauge steel finished in powder-coated cool gray, and the unit is UL Listed.
How does the freezer protect samples during alarms or power loss?
An automatic timer restarts the unit after a power failure.
Can I monitor the freezer remotely?
Yes. The touch-screen control supports data logging downloadable via USB or FTP, plus VNC remote access from a PC or smart devices, along with multi-level security.
What is the UNSPSC code for the Yamato ULF401UP?
The Yamato ULF401UP is classified under UNSPSC 41103000 (ultra low freezer).
Is there a spec sheet or brochure for the Yamato ULF401UP?
Yes. The Yamato ULF Platinum Series Ultra-Low Freezer brochure (290 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato ULF401UP compare with the other ULF Series models?
Yamato builds this ULF Series line in 6 sizes: 13 cu.ft. (ULF401UP), 18 cu.ft. (ULF501UP), 22 cu.ft. (ULF601UP), 25 cu.ft. (ULF701UP), 28 cu.ft. (ULF801UP) and 30 cu.ft. (ULF901UP). The comparison table on this page lists capacity, temperature range, racks, interior (w × d × h) and exterior side by side.
What are the interior dimensions of the Yamato ULF401UP?
The Yamato ULF401UP chamber measures 20" × 22" × 51.25" (50 × 55 × 130 cm) inside (W × D × H).
How many storage racks does the Yamato ULF401UP hold?
Yamato rates the ULF401UP at 15 racks in 370 L / 13 cu.ft. of storage.
What refrigeration system does the Yamato ULF401UP use?
The Yamato ULF401UP uses cascade type — two hermetic compressors, CFC-free R-508B and R-404A (CFC- & HCFC-free) refrigerant and manual defrost.
What certifications does the Yamato ULF401UP carry?
Yamato lists the ULF401UP as UL Listed.
What optional accessories are available for the Yamato ULF401UP?
Yamato offers these options for the ULF401UP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato ULF401UP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the ULF401UP.
What are the shipping dimensions and weight of the Yamato ULF401UP?
Yamato's shipping data lists the ULF401UP at 46 × 43 × 86 in and 850 lb packed.
