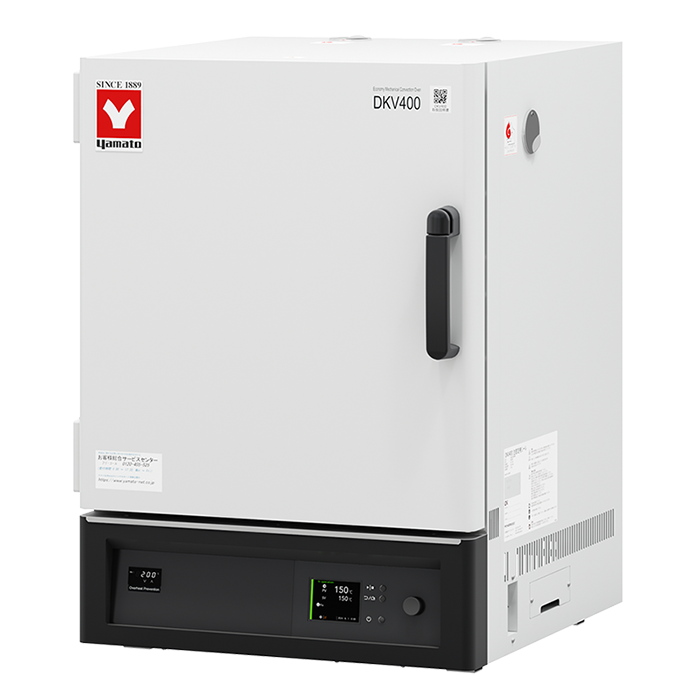

Forced Convection Oven Programmable 90L Overview
The Forced Convection Oven Programmable 90L (model DKV400) is a forced convection laboratory oven from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Built for constant-temperature work across an operating range of ambient +10 to 270°C, this 90 L unit holds samples at a stable setpoint for drying, curing, and heat-conditioning routines.
Interior surfaces use stainless steel for cleanability and corrosion resistance, while the exterior carries a baked-on finish over chromium-free electrogalvanized steel sheet. A 3.5 inch color LCD controller drives programmable temperature profiles, and click-function door hinges hold the door in place during loading. Built-in cable and exhaust ports support pass-through wiring and controlled venting.
Two voltage builds cover common lab circuits: DKV400 runs on 115V and DKV410 on 220V. Each oven measures 36 × 36 × 43 inches and weighs 190 lbs. Manufactured in Japan, this platform is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 certifications.
Key Features
- Programmable LCD control: 3.5 inch high-visibility color LCD controller for setting and running temperature profiles.
- Wide operating range: maintains temperatures from ambient +10 to 270°C for drying, curing, and conditioning.
- 90 L chamber: stainless steel interior provides usable working volume with a cleanable, corrosion-resistant surface.
- Click-function door hinges: hold the door at position during loading and unloading.
- Built-in ports: integrated cable port and exhaust ports support pass-through instrumentation and venting.
- Durable exterior: baked-on finish over chromium-free electrogalvanized steel sheet.
How to Choose the Right Convection Oven
Matching a forced convection oven to your workflow comes down to a few measurable axes. Weigh chamber size, temperature ceiling, control sophistication, and your facility's power before specifying a unit.
- Capacity: chamber volume sets how many samples or how large a load you can process per cycle; this model offers a 90 L chamber.
- Temperature range: confirm the oven reaches your process temperature with margin; this unit operates from ambient +10 to 270°C.
- Control type: programmable controllers let you run multi-step profiles and repeatable setpoints rather than manual adjustment.
- Voltage: select the build that matches your circuit, 115V (DKV400) or 220V (DKV410), to avoid retrofits.
- Footprint: verify the 36 × 36 × 43 inch dimensions and 190 lbs weight fit your bench or floor space and load path.
- Construction: a stainless steel interior aids cleaning and resists corrosion in routine lab use.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 90 L |
| Voltage | 115V |
| Circulation Method | Forced convection |
| Temperature Fluctuation | ±0.6°C (at 270°C) |
| Temperature Gradient | 9°C (at 270°C) |
| Temperature Control System | PID control by microcomputer (VSD-1 controller) |
| Temperature Display | 3.5-inch color LCD panel |
| Sensor | K-thermocouple |
| Heater | SUS tube heater, 1.5 kW |
| Chamber Material | Stainless steel |
| Exterior Material | Chromium-free electrogalvanized steel sheet with baked-on finish |
| Safety Devices | Self-diagnostic functions (overtemperature protection |
| Chamber Shelf Load | ≈15 kg per shelf (11 shelf positions) |
| Operating Temperature Range | ambient +10 to 270°C *1 |
| Material | Chromium-free electrogalvanized steel sheet, baked-on finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932795 |
| Shipping Weight | 190 lbs |
| Dimensions (L × W × H) | 36 × 36 × 43 in |
| Component Size | 90 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DKV-400 | 115V | EA |
| DKV-410 | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every oven ships as a genuine factory unit with full manufacturer warranty support. Our lab-equipment specialists can walk through specifications before you commit to a configuration.
- Authorized Yamato dealer: genuine units with manufacturer warranty coverage.
- In stock: ready to ship without backorder delays.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Specialist support: dedicated lab-equipment team for spec and configuration questions.
Frequently Asked Questions
What temperature range does the DKV400 convection oven reach?
The DKV400 operates from ambient +10 to 270°C. This forced convection range supports drying, curing, and constant-temperature conditioning across most general laboratory protocols.
What is the chamber capacity and overall footprint?
The oven provides a 90 L chamber. The full unit measures 36 × 36 × 43 inches (L × W × H) and weighs 190 lbs, so confirm bench or floor clearance and load path before installation.
What is the difference between the DKV400 and DKV410?
Voltage is the only difference: DKV400 is the 115V build and DKV410 is the 220V build. Both share the 90 L capacity, ambient +10 to 270°C range, and identical construction. Choose the model that matches your facility's circuit.
What materials are used in the oven construction?
The interior is stainless steel for cleanability and corrosion resistance. The exterior uses a baked-on finish over chromium-free electrogalvanized steel sheet for durability.
How is temperature controlled on this oven?
A 3.5 inch high-visibility color LCD controller manages temperature setpoints and programmable profiles, giving repeatable multi-step control rather than manual adjustment.
Where is the oven manufactured and is it certified?
The oven is manufactured in Japan by Yamato Scientific. The platform is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 certifications.
