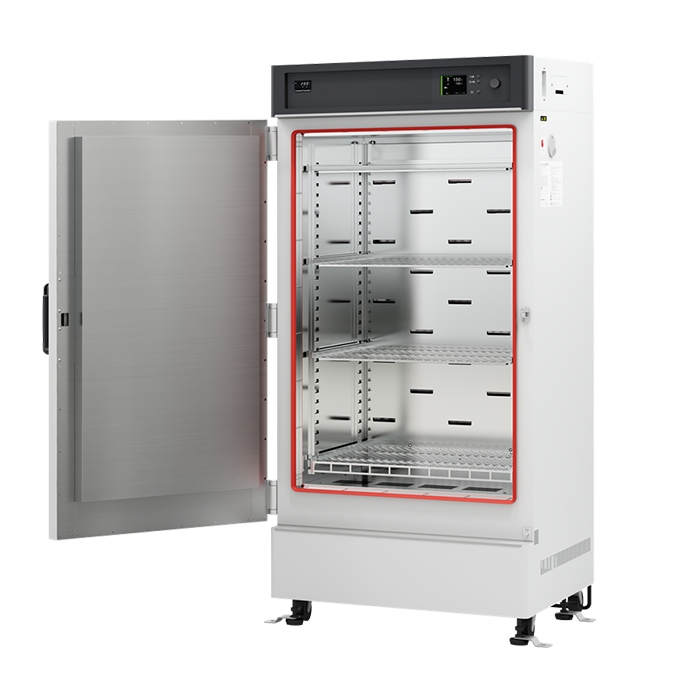

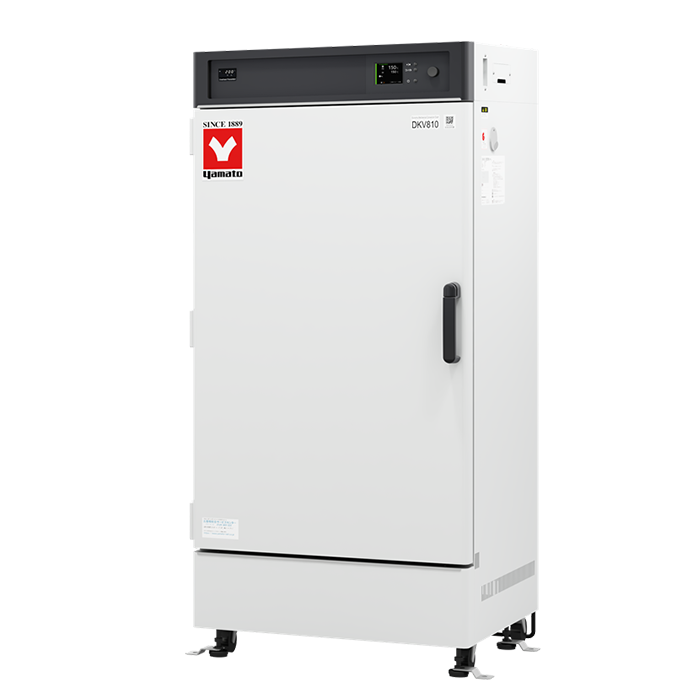

Forced Convection Oven Programmable 300L Overview
The Forced Convection Oven Programmable 300L (Yamato Scientific DKV810) is a 300 L mechanical convection oven covering an operating range of ambient +10 to 270°C. LabSupplies.com, an authorized dealer, supplies this programmable unit for constant-temperature drying, curing, and heat-treatment work where stable, repeatable airflow matters.
Forced convection circulates heated air across the chamber for uniform temperature distribution. A 3.5 in. color LCD controller drives programmable setpoints with high visibility, while door hinges with a click function ease single-hand loading. Built-in cable and exhaust ports support instrumented and vented protocols.
Construction pairs a chromium-free electrogalvanized steel exterior with a baked-on finish over a stainless steel interior. Power runs on 220V. Footprint measures 34 × 31 × 71 in. at a 284 lb operating weight. Manufactured in Japan, the unit is backed by Yamato ISO 9001:2015 and ISO 14001:2015 certifications.
Key Features
- Programmable control: 3.5 in. color LCD controller delivers high-visibility programmable temperature setpoints.
- Forced convection airflow: circulated heated air supports uniform chamber temperature distribution.
- Wide operating range: ambient +10 to 270°C covers drying, curing, and heat-treatment protocols.
- Click-function door hinges: ease single-hand loading and unloading.
- Built-in cable and exhaust ports: accommodate instrumented and vented applications.
- Durable construction: stainless steel interior with a chromium-free electrogalvanized steel exterior and baked-on finish.
How to Choose the Right Convection Oven
Matching an oven to your workflow means weighing chamber size, thermal range, control method, and site power against the protocols you run daily. Use the criteria below to confirm fit before specifying a unit.
- Capacity: a 300 L chamber suits larger batch loads and bulky labware; smaller volumes save bench space and energy.
- Temperature range: confirm your highest setpoint sits inside the ambient +10 to 270°C window with margin for stability.
- Control type: programmable LCD control supports multi-step or timed profiles versus simple fixed-setpoint operation.
- Voltage: verify your facility provides a 220V circuit before installation.
- Footprint and weight: plan for a 34 × 31 × 71 in. unit at 284 lb, including floor loading and clearance.
- Ports and venting: built-in cable and exhaust ports matter when probes or fume removal are part of the protocol.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 300 L |
| Voltage | 220V |
| Circulation Method | Forced convection |
| Temperature Fluctuation | ±0.6°C (at 270°C) |
| Temperature Gradient | 11°C (at 270°C) |
| Temperature Control System | PID control by microcomputer (VSD-1 controller) |
| Temperature Display | 3.5-inch color LCD panel |
| Sensor | K-thermocouple |
| Heater | SUS tube heater, 3.0 kW |
| Chamber Material | Stainless steel |
| Safety Devices | Self-diagnostic functions (overtemperature protection |
| Operating Temperature Range | ambient +10 to 270°C *1 |
| Material | Chromium-free electrogalvanized steel sheet, baked-on finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932832 |
| Shipping Weight | 284 lbs |
| Dimensions (L × W × H) | 34 × 31 × 71 in |
| Component Size | 300 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DKV-810 | EA | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DKV810 ships as a genuine unit with manufacturer warranty intact. Order directly and our lab-equipment specialists stand ready to answer spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for technical and fit questions.
Frequently Asked Questions
What is the operating temperature range of the Yamato DKV810?
The DKV810 operates from ambient +10 to 270°C. This forced convection range supports drying, curing, and heat-treatment protocols requiring stable elevated temperatures.
How large is the chamber and overall footprint?
The chamber capacity is 300 L. External dimensions measure 34 × 31 × 71 in. (L × W × H), and the unit weighs 284 lb, so plan floor space and loading accordingly.
What voltage does the DKV810 require?
The DKV810 runs on 220V. Confirm your facility provides a suitable 220V circuit before installation.
What materials are used in the chamber and exterior?
The interior is stainless steel, and the exterior is chromium-free electrogalvanized steel sheet with a baked-on finish. This pairing supports cleanability and durability in lab environments.
How are temperature setpoints controlled?
A 3.5 in. color LCD controller drives programmable setpoints. High visibility and programmable operation support multi-step and timed temperature profiles.
Where is the DKV810 manufactured and is it certified?
The DKV810 is manufactured in Japan. Yamato Scientific holds ISO 9001:2015 and ISO 14001:2015 certifications for quality and environmental management.
