Natural Convection Oven 153L Overview

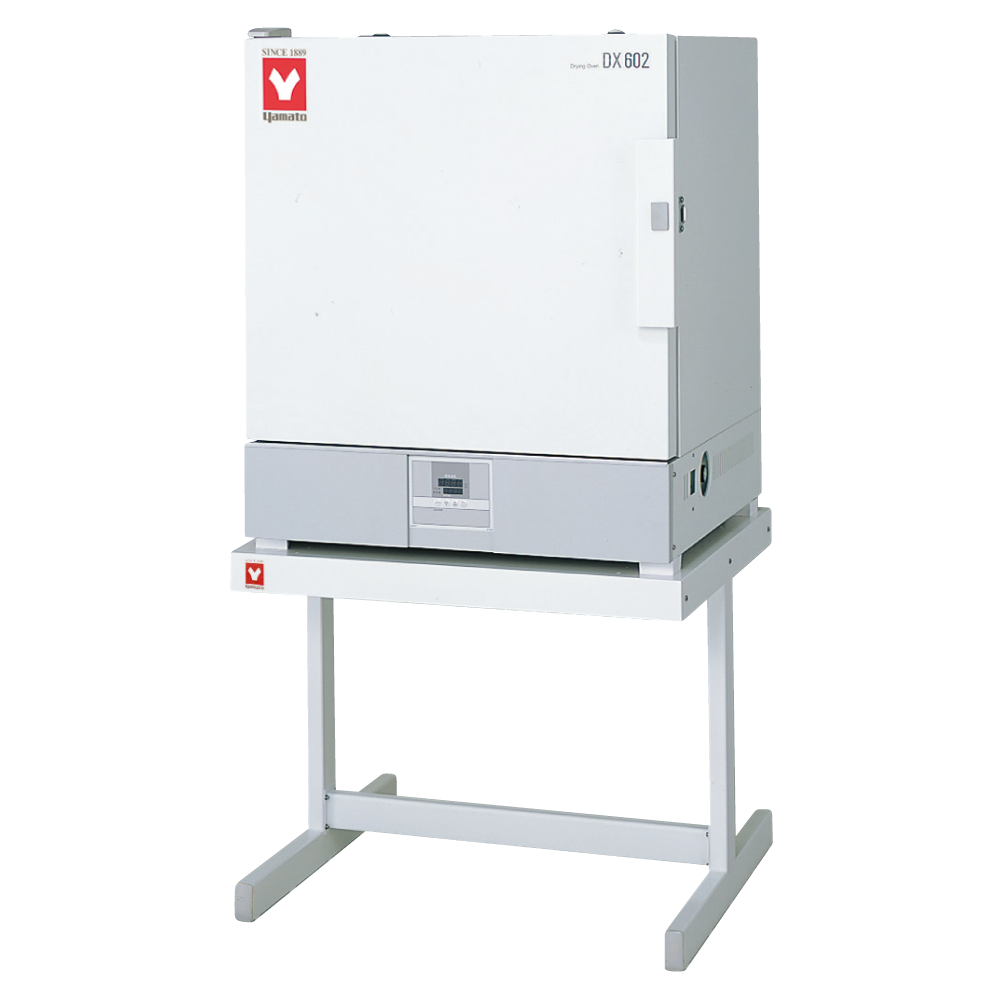

The Yamato Scientific Natural Convection Oven 153L (model DX602C) is a constant-temperature drying oven that holds an operating range of ambient +5 to 280°C across a 153-liter chamber. Lab managers reach for this convection oven when reliable drying, curing, and sample conditioning matter. LabSupplies.com supplies it as an authorized dealer.
A digital PID controller drives temperature accuracy, while calibration off-set lets technicians align readings to a reference standard. Built-in safety and self-diagnostic functions guard the load and the unit. Exterior panels use SPCC steel plate with powder coating; the interior chamber is stainless steel for cleanability and corrosion resistance.
Choose the DX602C at 115V or the DX612C at 220V to match site power. Each oven measures 36 × 36 × 43 inches and weighs 230 lbs, so plan bench or floor placement accordingly. Manufacturing operates under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified systems, and units ship from USA inventory.
Key Features
- 153 L chamber: generous natural convection capacity for batch drying, curing, and sample conditioning.
- Wide temperature range: operates from ambient +5 up to 280°C for varied protocols.
- Digital PID control: maintains excellent temperature accuracy with straightforward setpoint operation.
- Calibration off-set: lets technicians align the display to a traceable reference.
- Safety and self-diagnostic functions: protect the sample load and the instrument during unattended runs.
- Durable construction: powder-coated SPCC steel exterior with a cleanable stainless steel interior.
How to Choose the Right Convection Oven
Selecting a natural convection oven comes down to matching chamber size, temperature ceiling, and site power to your workflow. Use the criteria below to confirm the DX602C family fits before you order.
- Capacity: a 153 L chamber suits multi-batch drying; verify your largest load and tray count fit the interior.
- Temperature range: the ambient +5 to 280°C span covers most drying and curing protocols, so confirm your target setpoint sits inside it.
- Control type: the digital PID controller with calibration off-set favors labs needing repeatable, adjustable accuracy over basic analog dials.
- Voltage: pick DX602C for 115V circuits or DX612C for 220V; match the unit to available outlets and breaker capacity.
- Footprint and weight: at 36 × 36 × 43 inches and 230 lbs, plan a stable bench or floor location with clearance.
- Safety: built-in safety and self-diagnostic functions matter most for unattended or overnight runs.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 153 L |
| Voltage | 115V |
| Circulation Method | Natural gravity convection |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Electro-galvanized steel sheet with melamine resin baked finish |
| Heat Insulation | Glass wool |
| Safety Devices | Self-diagnostic functions (sensor error, memory error, input/measured temperature error, automatic overheat prevention); key lock; independent overheat prevention device; overcurrent leakage breaker |
| Temperature Accuracy | ±1°C (at 280°C) *2 |
| Temperature Distribution | ±10°C (at 280°C) *2 |
| Heater | Iron-chrome wire heater, 1.36 kW |
| Max. Temperature Reaching Time | Approx. 80 min |
| Operating Temperature Range | ambient +5 to 280°C *1 |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059926275 |
| Shipping Weight | 230 lbs |
| Dimensions (L × W × H) | 36 × 36 × 43 in |
| Component Size | 153 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DX-602C | 115V | EA |
| DX-612C | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every Natural Convection Oven 153L ships as a genuine unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists stand ready for spec questions before and after purchase.
- Authorized Yamato Scientific dealer — genuine unit with full manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Dedicated lab-equipment specialists for sizing, voltage, and application questions.
- Backed by ISO 9001, 14001, and 45001 certified manufacturing.
Frequently Asked Questions
What is the temperature range of the Yamato DX602C convection oven?
The DX602C operates from ambient +5°C up to 280°C. A digital PID controller holds the setpoint with excellent temperature accuracy across that range.
How large is the chamber and what are the overall dimensions?
The chamber capacity is 153 liters. Overall the oven measures 36 × 36 × 43 inches and weighs 230 lbs, so confirm bench or floor clearance before installation.
What is the difference between the DX602C and DX612C?
Voltage is the only difference: the DX602C runs on 115V and the DX612C runs on 220V. Both share the same 153 L capacity, temperature range, controls, and construction.
What materials are used in the oven construction?
The exterior is SPCC steel plate with a powder-coated finish. The interior chamber is stainless steel for corrosion resistance and easy cleaning.
Does the oven include calibration and safety features?
Yes. The digital PID controller offers calibration off-set to align the display to a reference, plus built-in safety and self-diagnostic functions for unattended operation.
Which voltage should I order for my lab?
Choose the DX602C for standard 115V circuits or the DX612C for 220V power. Match the model to your available outlets and breaker capacity.
