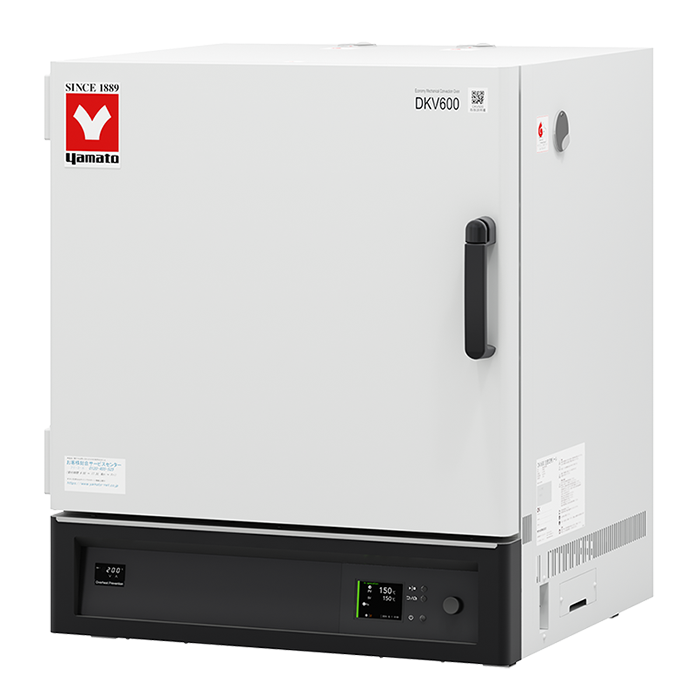

Forced Convection Oven Programmable 150L Overview
The Forced Convection Oven Programmable 150L (DKV600) is a Yamato Scientific forced convection oven delivering an operating range of ambient +10 to 270°C across a 150 L chamber. LabSupplies.com, authorized dealer, supplies the genuine programmable unit built for repeatable constant-temperature work in research, QC, and production labs.
Forced air circulation drives uniform heat distribution and accurate temperature hold. Chamber interiors use stainless steel, while the exterior is chromium-free electrogalvanized steel sheet with a baked-on finish. A built-in cable port and exhaust ports support sensor pass-through and controlled venting, and door hinges with a click function ease single-hand loading.
Operation runs through a 3.5 in. color LCD controller for programmable profiles. DKV600 runs on 115V and DKV610 on 220V, so you match the unit to your site power. The oven measures 36 × 36 × 45 in. and weighs 230 lbs. Manufactured in Japan, it ships under Yamato ISO 9001:2015 and ISO 14001:2015 quality systems.
Key Features
- Programmable LCD control: 3.5 in. color LCD controller for high-visibility setup and stored temperature programs.
- Forced convection design: fan-driven air circulation for uniform heat distribution and accurate constant-temperature hold.
- Wide operating range: ambient +10 to 270°C covers drying, curing, and elevated-temperature conditioning.
- Built-in cable and exhaust ports: route sensors and probes through the chamber and vent process air in a controlled path.
- Click-function door hinges: stable, single-hand door operation during loading and unloading.
- Durable construction: stainless steel interior with a chromium-free electrogalvanized steel exterior and baked-on finish.
How to Choose the Right Convection Oven
Matching an oven to your workflow comes down to chamber size, temperature ceiling, control sophistication, and the power available at your bench. Weigh these axes against your throughput and protocol requirements.
- Capacity: a 150 L chamber suits batch drying and multi-tray loads; size the interior to your largest routine run.
- Temperature range: the ambient +10 to 270°C span fits most drying, baking, and curing protocols, so confirm your highest setpoint falls inside it.
- Control type: a programmable color LCD controller supports stored profiles and repeatable cycles, valuable when many operators run the same method.
- Voltage: choose DKV600 for 115V circuits or DKV610 for 220V; verify your outlet before ordering.
- Footprint and weight: at 36 × 36 × 45 in. and 230 lbs, plan bench or floor clearance and confirm load-bearing support.
- Safety and venting: built-in exhaust ports matter when processing samples that off-gas or require controlled air exchange.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 150 L |
| Voltage | 115V |
| Circulation Method | Forced convection |
| Temperature Fluctuation | ±0.5°C (at 270°C) |
| Temperature Gradient | 9°C (at 270°C) |
| Temperature Control System | PID control by microcomputer (VSD-1 controller) |
| Temperature Display | 3.5-inch color LCD panel |
| Sensor | K-thermocouple |
| Heater | SUS tube heater, 2.5 kW |
| Chamber Material | Stainless steel |
| Exterior Material | Chromium-free electrogalvanized steel sheet with baked-on finish |
| Safety Devices | Self-diagnostic functions (overtemperature protection |
| Chamber Shelf Load | ≈15 kg per shelf (13 shelf positions) |
| Operating Temperature Range | ambient +10 to 270°C *1 |
| Material | Chromium-free electrogalvanized steel sheet, baked-on finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932818 |
| Shipping Weight | 230 lbs |
| Dimensions (L × W × H) | 36 × 36 × 45 in |
| Component Size | 150 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DKV-600 | 115V | EA |
| DKV-610 | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every oven ships as a genuine factory unit backed by the manufacturer warranty. Order directly and get it moving the same way you would any stocked instrument.
- Authorized dealer: genuine Yamato Scientific unit with full manufacturer warranty.
- In stock: available now, no backorder wait.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Lab-equipment specialists: dedicated support for spec, voltage, and configuration questions.
Frequently Asked Questions
What is the operating temperature range of the DKV600 oven?
The DKV600 operates from ambient +10 to 270°C. Forced convection circulation supports uniform heat distribution and accurate constant-temperature hold across that range.
What is the chamber capacity and overall size?
Chamber capacity is 150 L. The oven measures 36 × 36 × 45 in. (L × W × H) and weighs 230 lbs, so plan bench or floor clearance and confirm supporting load.
What is the difference between the DKV600 and DKV610?
The only difference is supply voltage. DKV600 runs on 115V and DKV610 runs on 220V; both share the same 150 L capacity, ambient +10 to 270°C range, and 3.5 in. color LCD control.
How is the oven controlled?
Control runs through a 3.5 in. color LCD controller supporting programmable temperature profiles, which makes repeatable cycles straightforward when multiple operators run the same protocol.
What materials are used in the chamber and exterior?
The interior is stainless steel. Exterior panels use chromium-free electrogalvanized steel sheet with a baked-on finish for durability.
Does the oven support sensor pass-through and venting?
Yes. A built-in cable port lets you route sensors and probes into the chamber, and exhaust ports provide a controlled path for process air.
