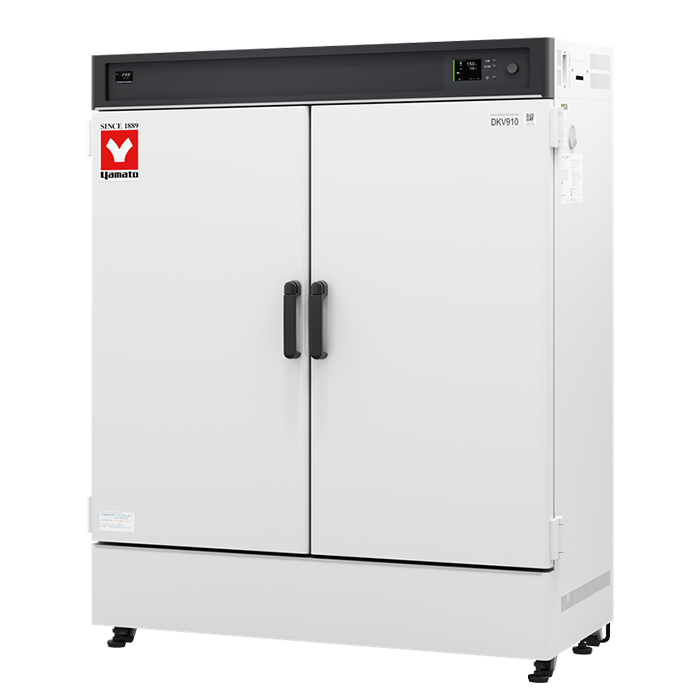

Forced Convection Oven Programmable 535L Overview
The Forced Convection Oven Programmable 535L (Yamato Scientific DKV910) is a large-capacity mechanical convection oven delivering 535 liters of working volume across an operating range of ambient +10 to 220°C. LabSupplies.com, authorized dealer, supplies this programmable unit for drying, curing, and constant-temperature processing where uniform airflow and repeatable cycles matter.
Forced air circulation drives consistent temperature distribution throughout the chamber. A 3.5-inch color LCD controller handles programmable setpoints, while click-function door hinges, a built-in cable port, and exhaust ports support routine instrumentation and venting tasks. The interior uses stainless steel; the exterior is chromium-free electrogalvanized steel sheet with a baked-on finish.
Operating on 220V, the DKV910 measures 42 × 57 × 81 inches and weighs 700 lbs, suiting a dedicated bench or floor footprint. Manufactured in Japan, the unit is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 certified production. LabSupplies.com ships it from USA inventory.
Key Features
- Forced convection design: circulated air promotes uniform temperature across the full 535 L chamber.
- Programmable LCD control: a 3.5-inch color LCD controller manages setpoints and program steps.
- Wide operating range: handles temperatures from ambient +10 up to 220°C.
- Click-function door hinges: positive door positioning for everyday loading and access.
- Built-in cable and exhaust ports: route probes and vent the chamber without aftermarket modification.
- Durable construction: stainless steel interior with a chromium-free electrogalvanized steel exterior and baked-on finish.
How to Choose the Right Convection Oven
Selecting a forced convection oven comes down to matching chamber size, temperature ceiling, control style, and site power to your workflow. Review these axes before specifying a unit.
- Capacity: the DKV910 offers 535 L, sized for batch drying, glassware processing, and larger sample loads.
- Temperature range: an ambient +10 to 220°C span covers most drying and curing protocols; confirm your process stays within it.
- Control type: programmable LCD control suits multi-step or repeatable cycles versus simple fixed-setpoint work.
- Voltage: this model runs on 220V — verify your facility provides the required circuit before installation.
- Footprint and weight: at 42 × 57 × 81 inches and 700 lbs, plan placement, access clearance, and floor loading.
- Ports and access: built-in cable and exhaust ports matter when routing probes or venting fumes.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 535 L |
| Voltage | 220V |
| Circulation Method | Forced convection |
| Temperature Fluctuation | ±0.6°C (at 220°C) |
| Temperature Gradient | 11°C (at 220°C) |
| Temperature Control System | PID control by microcomputer (VSD-1 controller) |
| Temperature Display | 3.5-inch color LCD panel |
| Sensor | K-thermocouple |
| Heater | SUS tube heater, 3.0 kW |
| Chamber Material | Stainless steel |
| Safety Devices | Self-diagnostic functions (overtemperature protection |
| Operating Temperature Range | ambient +10 to 220°C *1 |
| Material | Chromium-free electrogalvanized steel sheet, baked-on finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932849 |
| Shipping Weight | 700 lbs |
| Dimensions (L × W × H) | 42 × 57 × 81 in |
| Component Size | 545 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DKV-910 | EA | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so the DKV910 ships as a genuine unit with full manufacturer warranty. Order directly and our lab-equipment specialists can help confirm power, footprint, and configuration details.
- Authorized Yamato Scientific dealer: genuine equipment with manufacturer warranty intact.
- In stock: available now, no backorder wait.
- Ships from USA inventory: domestic dispatch on your order.
- Specialist support: dedicated lab-equipment team for spec and fit questions.
Frequently Asked Questions
What is the operating temperature range of the Yamato DKV910?
The DKV910 operates from ambient +10 up to 220°C. That range supports common drying, curing, and constant-temperature processing protocols.
How large is the chamber capacity?
The chamber provides 535 liters of working volume. This large capacity suits batch drying, glassware processing, and higher-throughput sample loads.
What voltage does the DKV910 require?
This oven runs on 220V. Verify your facility supplies the correct circuit before installation.
What are the oven's dimensions and weight?
The unit measures 42 × 57 × 81 inches and weighs 700 lbs. Plan placement, access clearance, and floor loading accordingly.
What materials are used in construction?
The interior is stainless steel and the exterior is chromium-free electrogalvanized steel sheet with a baked-on finish. This combination supports cleanability and durability.
How is the temperature controlled on this model?
A 3.5-inch color LCD controller manages programmable setpoints. Programmable control supports multi-step and repeatable cycles.
