Natural Convection Glassware Drying Oven With Sterilization Lamp 92L Overview

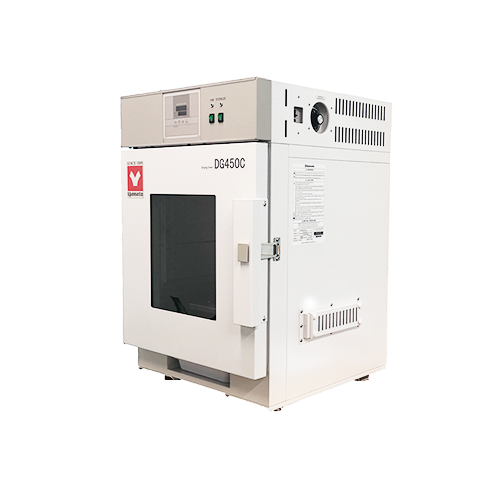

The Natural Convection Glassware Drying Oven With Sterilization Lamp 92L (Yamato Scientific DG440C/DG450C) is a 92-liter gravity convection oven engineered for drying and storing laboratory glassware across an operating range of ambient +5 to 70°C. LabSupplies.com supplies it as an authorized Yamato Scientific dealer.
A built-in germicidal lamp, intake-port air filter, and exhaust fan support fast, clean drying. Heat reaches glassware through a stainless steel pipe heater, while a bottom water-receiving plate captures runoff. The SUS304 stainless steel interior resists corrosion and wipes down easily; a large observation window lets technicians monitor loads without opening the door.
Both members share the same 92L chamber and 28 × 31 × 35 in footprint, differing only by voltage: DG440C runs on 115V, DG450C on 220V. Each unit weighs roughly 200 lbs, rests on adjustable feet for uneven floors, and is manufactured under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 systems. Ships from USA inventory.
Key Features
- 92L natural convection chamber: gravity airflow dries glassware gently across ambient +5 to 70°C.
- Germicidal sterilization lamp: integrated UV lamp supports sanitary drying and post-dry instrument storage.
- Filtered intake and exhaust fan: air-intake filter plus exhaust fan promote fast, clean moisture removal.
- SUS304 stainless interior with water-receiving plate: corrosion-resistant, easy-clean chamber that captures runoff at the bottom.
- Dial setting with digital display: temperature and timer set by dial and shown on a digital readout.
- Adjustable feet and large window: stable leveling on uneven floors and at-a-glance load monitoring.
How to Choose the Right Convection Oven
Selecting a glassware drying oven comes down to matching chamber size, temperature needs, controls, and site power to your workflow. Use the criteria below to confirm the unit fits both your bench plan and your facility.
- Capacity: a 92L chamber holds larger or batched glassware loads; size the chamber to your typical drying volume.
- Temperature range: this oven runs ambient +5 to 70°C, suited to gentle glassware drying rather than high-heat bake-out.
- Control type: dial setting with digital display balances simple operation with readable temperature and timer feedback.
- Voltage: choose DG440C for 115V circuits or DG450C for 220V to match your lab's available power.
- Footprint and weight: confirm the 28 × 31 × 35 in dimensions and ~200 lb weight suit your bench or floor space.
- Drying hygiene: the germicidal lamp, intake filter, and exhaust fan matter when clean, sanitary storage follows drying.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 92 L |
| Voltage | 115V |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple (controller); liquid-expansion (overheat protection) |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with chemical-proof coating |
| Safety Devices | Self-diagnostic functions (abnormal temperature, automatic overheat prevention, SSR short-circuit); key lock; independent overheat protector; overcurrent leakage breaker |
| Circulation Method | Natural / forced convection |
| Heater | SUS pipe heater, 1.0 kW |
| Special Features | Air-intake filter, exhaust fan, and germicidal lamp for fast drying |
| Operating Temperature Range | ambient +5 to 70°C *1 |
| Material | Bonderized steel sheet iron, melamine resin baking finish (exterior) Stainless steel SUS304 (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059926350 |
| Shipping Weight | 200 lbs |
| Dimensions (L × W × H) | 28 × 31 × 35 in |
| Component Size | 92 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DG-440C | 115V | EA |
| DG-450C | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DG440C and DG450C oven arrives as a genuine factory unit backed by the manufacturer warranty. Order directly online and ship from USA inventory.
- Authorized Yamato Scientific dealer — genuine units with manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Manufactured under ISO 9001:2015, 14001:2015, and 45001:2018 systems.
- Lab-equipment specialists available for specification questions.
Frequently Asked Questions
What is the operating temperature range of the DG440C oven?
The DG440C operates from ambient +5 to 70°C. This gentle range suits glassware drying and post-dry instrument storage rather than high-temperature bake-out applications.
What is the chamber capacity and overall size?
The chamber capacity is 92 liters. External dimensions are 28 × 31 × 35 inches (L × W × H), and the unit weighs approximately 200 lbs, so confirm bench or floor clearance before ordering.
What is the difference between the DG440C and DG450C?
Voltage is the only difference. The DG440C runs on 115V and the DG450C on 220V; both share the same 92L chamber, temperature range, materials, and footprint.
What materials are used in the oven construction?
The interior is SUS304 stainless steel for corrosion resistance and easy cleaning. The exterior is bonderized steel sheet iron with a melamine resin baking finish.
Does this oven include sterilization features?
Yes. The oven includes a germicidal sterilization lamp, an air-intake port filter, and an exhaust fan, supporting clean, fast drying and sanitary instrument storage after the drying cycle.
How are temperature and timer controlled?
Temperature and timer are set by dial and shown on a digital display. The unit also features a stainless steel pipe heater and a bottom water-receiving plate to capture runoff.
