Fine Oven Programmable 91L Overview

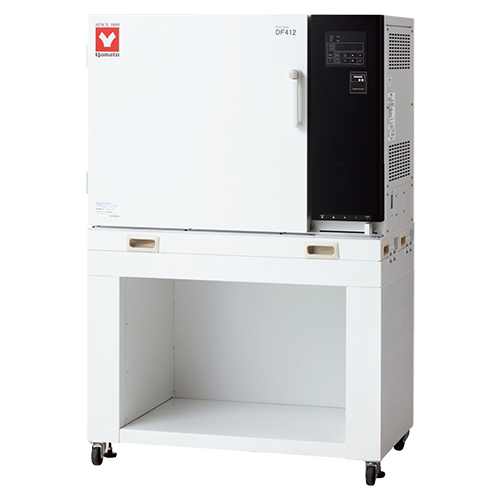

The Yamato Scientific Fine Oven Programmable 91L (model DF412) is a mechanical convection laboratory oven delivering a 91-liter chamber and an operating range from ambient +15°C to 260°C. Engineered for demanding temperature-characteristic testing, it pairs accurate thermal control with a redesigned panel for clearer readouts and faster setup. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
Construction centers on a stainless steel interior chamber paired with a chrome-free electrogalvanized carbon steel exterior, finished in a chemical-proof baked-on coating. An adjustable air-speed function manages uniformity, while an exhaust damper enables quick venting and chamber cool-down. Dedicated exhaust and cable ports support real-world test configurations.
Operating on 220V, the DF412 measures 49 × 33 × 43 inches and weighs 365 lbs, suiting permanent benchtop or floor placement. Manufactured in Japan, the oven is produced under ISO 9001:2015 and ISO 14001:2015 certified processes. Onboard displays report power consumption, CO₂ emission, and heat-timer status.
Key Features
- Programmable control: enhanced program operation supports up to 99 steps and 99 patterns with a repetitive operation function.
- Wide temperature range: operates from ambient +15°C up to 260°C with precise stability and uniformity.
- Adjustable air speed: standard air-speed control helps manage chamber temperature uniformity for varied loads.
- Monitoring displays: readouts for power consumption, CO₂ emission, and heat timer keep test conditions visible.
- Exhaust damper and ports: rapid venting plus dedicated exhaust and cable ports speed cooling and accommodate test wiring.
- Safety detection: fan motor error detection improves operational safety during unattended runs.
How to Choose the Right Fine Oven
Selecting a fine oven comes down to matching chamber size, thermal range, and control complexity to your test protocols and the power available at your site. Use the criteria below to confirm the DF412 fits your workflow.
- Capacity: the 91L chamber sets how many samples, fixtures, or trays you can process per cycle — verify your largest test load fits.
- Temperature range: ambient +15°C to 260°C covers most curing, aging, and characteristic-testing protocols; confirm your target setpoints fall inside it.
- Control type: programmable multi-step operation suits complex, repeatable temperature profiles rather than single fixed setpoints.
- Voltage: this unit requires 220V — check that the appropriate circuit and receptacle are available at the install location.
- Footprint and weight: at 49 × 33 × 43 inches and 365 lbs, plan placement and floor or bench support before delivery.
- Safety features: fan motor error detection matters for labs running long, unattended thermal cycles.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 91 L |
| Max Temperature | 260°C |
| Voltage | 220V |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Temperature Accuracy | ±0.1°C (at 260°C) *2 |
| Temperature Distribution | ±1.5°C (at 260°C) *2 |
| Heater | Stainless pipe heater with fan, 2.1 kW |
| Max. Temperature Reaching Time | Approx. 40 min |
| Operating Temperature Range | ambient +15 to 260°C *1 |
| Material | Chrome-free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Stainless steel sheet metal (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926671 |
| Shipping Weight | 365 lbs |
| Dimensions (L × W × H) | 49 × 33 × 43 in |
| Component Size | 91 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DF-412 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DF412 ships as a genuine unit backed by the manufacturer warranty. Our lab-equipment specialists can answer spec and configuration questions before you order.
- Authorized Yamato Scientific dealer — genuine unit with manufacturer warranty.
- In stock and ready to process.
- Ships from USA inventory.
- Dedicated lab-equipment specialists for spec and application questions.
Frequently Asked Questions
What is the temperature range of the Yamato DF412 fine oven?
The DF412 operates from ambient +15°C up to a maximum of 260°C. This range supports curing, aging, and temperature-characteristic testing across most laboratory protocols.
What is the chamber capacity and overall size of the DF412?
The DF412 provides a 91-liter chamber. External dimensions are 49 × 33 × 43 inches (L × W × H) and the unit weighs 365 lbs, so plan placement and support accordingly.
What voltage does the DF412 require?
The DF412 runs on 220V. Confirm an appropriate 220V circuit and receptacle are available at the installation site before delivery.
What materials are used in the DF412 construction?
The interior chamber is stainless steel sheet metal. Its exterior is chrome-free electrogalvanized carbon steel finished with a chemical-proof, baked-on coating.
Is the DF412 programmable, and how many steps does it support?
Yes, the DF412 is fully programmable. It supports up to 99 steps and 99 patterns with a repetitive operation function for complex, repeatable temperature profiles.
Where is the DF412 manufactured and is it certified?
The DF412 is manufactured in Japan. Production follows ISO 9001:2015 and ISO 14001:2015 certified processes; certificates are available on request.
