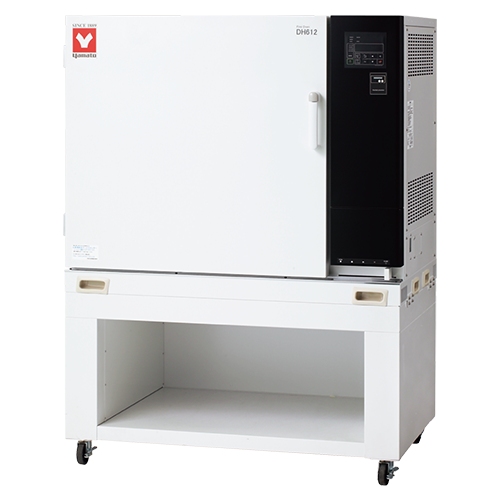

Fine Oven Programmable 216L Overview
The Yamato Scientific Fine Oven Programmable 216L (model DH612) is a mechanical convection oven built for temperature characteristic tests that demand precise, repeatable heating. Sold by LabSupplies.com as an authorized dealer, this unit delivers a 216 L chamber and an operating range from ambient +15 to 360°C. Programmable profiles run without manual oversight.
Construction pairs a stainless steel interior chamber with a chrome-free electrogalvanized carbon steel exterior, finished in a chemical-proof, baked-on coating. An adjustable air speed function tunes circulation for stability and uniformity across loads. Fan motor error detection adds a safety layer during long unattended runs.
Power draws from a 220V supply, and the cabinet measures 55 × 40 × 50 inches at a 500 lb shipping weight. Manufactured in Japan, the oven carries ISO 9001:2015 and ISO 14001:2015 certifications. An exhaust damper plus dedicated exhaust and cable ports support quick chamber cooling and instrumentation pass-through.
Key Features
- Programmable control: up to 99 steps and 99 patterns with a repetitive operation function for complex temperature profiles.
- Adjustable air speed: tunable circulation supports temperature stability and uniformity across varied loads.
- Onboard monitoring: displays power consumption, CO₂ emission, and a heat timer directly on the panel.
- Improved control panel: enhanced visibility and operability simplify setup of detailed test programs.
- Fan motor error detection: built-in safety monitoring flags fan faults during unattended runs.
- Exhaust damper and ports: rapid chamber exhaust and cooling, plus exhaust and cable ports for instrumentation.
How to Choose the Right Fine Oven
Matching a fine oven to your workflow comes down to a few measurable specs. Use these axes to confirm the DH612 fits your throughput, process, and facility power.
- Capacity: chamber volume sets batch size. The 216 L interior suits mid-to-large sample loads and multi-shelf runs.
- Temperature range: verify your protocol stays within ambient +15 to 360°C, the operating window this oven supports.
- Control type: programmable operation with 99 steps and 99 patterns favors repeatable, multi-stage profiles over manual setpoint work.
- Voltage: confirm your bench or room circuit supplies 220V before installation.
- Footprint: plan for the 55 × 40 × 50 inch cabinet and 500 lb weight when allocating floor and service space.
- Safety features: fan motor error detection and exhaust control matter for long, unattended thermal testing.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 216 L |
| Max Temperature | 360°C |
| Voltage | 220V |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Temperature Accuracy | ±0.2°C (at 360°C) *2 |
| Temperature Distribution | ±2.5°C (at 360°C) *2 |
| Heater | Stainless pipe heater with fan, 3.75 kW |
| Operating Temperature Range | ambient +15 to 360°C *1 |
| Material | Chrome-free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Stainless steel sheet metal (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926725 |
| Shipping Weight | 500 lbs |
| Dimensions (L × W × H) | 55 × 40 × 50 in |
| Component Size | 216 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DH-612 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
Procurement teams order the DH612 directly through LabSupplies.com and receive a genuine, factory-backed unit ready for installation.
- Authorized Yamato Scientific dealer: every oven is a genuine unit covered by the manufacturer warranty.
- In stock: available now, no backorder wait.
- Ships from USA inventory: domestic fulfillment shortens lead time.
- Lab-equipment specialists: dedicated support answers spec and configuration questions before you order.
Frequently Asked Questions
What is the temperature range of the Yamato DH612 fine oven?
The DH612 operates from ambient +15°C up to a maximum of 360°C. This range covers most temperature characteristic and thermal testing protocols requiring high-heat convection.
What is the chamber capacity and overall size of the DH612?
The chamber holds 216 L. The full cabinet measures 55 × 40 × 50 inches (L × W × H) and weighs approximately 500 lb, so plan floor and service space accordingly.
What voltage does the DH612 require?
The DH612 runs on a 220V supply. Confirm your facility circuit matches this requirement before installation.
What materials are used in the oven construction?
The interior chamber is stainless steel sheet metal. The exterior is chrome-free electrogalvanized carbon steel finished in a chemical-proof, baked-on coating.
Can the DH612 run multi-stage temperature programs?
Yes. The DH612 supports programmable operation with up to 99 steps and 99 patterns, plus a repetitive operation function for complex, repeatable profiles.
Is the Yamato DH612 a certified product?
Yes. The DH612 is manufactured in Japan under ISO 9001:2015 and ISO 14001:2015 certified processes, with documentation available on request.
