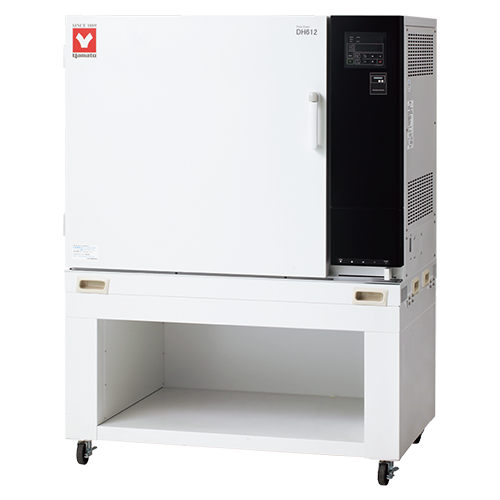

Fine Oven Programmable 216L Overview
The Fine Oven Programmable 216L (model DF612) from Yamato Scientific is a programmable mechanical convection oven built for temperature characteristic testing that demands repeatable, multi-step profiles. This unit offers 216 liters of chamber capacity and operates from ambient +15°C up to a 260°C maximum. LabSupplies.com supplies it as an authorized Yamato Scientific dealer.
Inside, stainless steel sheet metal lines the chamber for chemical resistance and straightforward cleaning. Exterior panels use chrome-free electrogalvanized carbon steel finished in a baked-on, chemical-proof coating. An exhaust damper enables quick venting and rapid cooling of the chamber, while integrated exhaust and cable ports support flexible test configurations.
Power is supplied at 220V, suiting a dedicated laboratory circuit. Footprint measures 55 × 40 × 55 inches at roughly 500 lb shipping weight, so plan bench or floor space accordingly. Manufactured in Japan, the oven is produced under ISO 9001:2015 and ISO 14001:2015 certified processes.
Key Features
- Enhanced program operation: up to 99 steps and 99 patterns with a repetitive operation function for complex temperature profiles.
- Adjustable air speed: standard-equipped airflow control to tune uniformity for different load types.
- Energy and usage displays: on-panel readouts for power consumption, CO₂ emission, and a heat timer.
- Fan motor error detection: built-in safety monitoring that flags fan motor faults.
- Exhaust damper: allows quick exhaust and faster cooling of the interior chamber, plus exhaust and cable ports.
- Improved control panel: upgraded visibility and operability simplify setup and daily operation.
How to Choose the Right Fine Oven
A fine oven selection comes down to matching chamber size, temperature reach, and control sophistication to your test protocol. Use these axes to confirm the DF612 fits your workflow before ordering.
- Capacity: the 216 L chamber suits larger batch loads or bigger fixtures; size it to your maximum sample volume plus airflow clearance.
- Temperature range: an ambient +15°C to 260°C span covers most curing, drying, and characteristic-test work; verify your protocol stays within it.
- Control type: programmable operation with 99 steps and 99 patterns matters when tests require multi-stage or repeating profiles rather than a single setpoint.
- Voltage: the DF612 runs on 220V, so confirm an available dedicated circuit at the installation point.
- Footprint: at 55 × 40 × 55 inches and about 500 lb, plan placement, access, and load-bearing support in advance.
- Safety features: fan motor error detection and an exhaust damper support unattended runs and faster cooldowns.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 216 L |
| Max Temperature | 260°C |
| Voltage | 220V |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Temperature Accuracy | ±0.1°C (at 260°C) *2 |
| Temperature Distribution | ±1.5°C (at 260°C) *2 |
| Heater | Stainless pipe heater with fan, 3.0 kW |
| Operating Temperature Range | ambient +15 to 260°C *1 |
| Material | Chrome-free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Stainless steel sheet metal (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926688 |
| Shipping Weight | 500 lbs |
| Dimensions (L × W × H) | 55 × 40 × 55 in |
| Component Size | 216 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DF-612 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DF612 arrives as a genuine unit backed by the manufacturer warranty. Orders ship directly from USA inventory, and our lab-equipment specialists are ready to confirm specifications before you order.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for spec and compatibility questions.
Frequently Asked Questions
What is the maximum operating temperature of the DF612?
The DF612 reaches a 260°C maximum. Its full working range runs from ambient +15°C up to 260°C, covering common curing, drying, and temperature characteristic tests.
How large is the chamber capacity?
The chamber holds 216 liters. That volume accommodates larger batch loads and bigger fixtures while leaving room for the airflow the convection design needs.
What voltage does the DF612 require?
The DF612 operates on 220V. Confirm an available dedicated 220V circuit at the installation location before delivery.
What materials are used in the chamber and exterior?
The interior is stainless steel sheet metal for chemical resistance and easy cleaning. Exterior panels are chrome-free electrogalvanized carbon steel finished in a baked-on, chemical-proof coating.
Can the DF612 run multi-step temperature programs?
Yes. The enhanced program operation function supports up to 99 steps and 99 patterns, plus a repetitive operation function for repeating cycles.
What are the dimensions and weight of the unit?
The DF612 measures 55 × 40 × 55 inches with a shipping weight of about 500 lb. Plan placement, access, and floor support accordingly.
