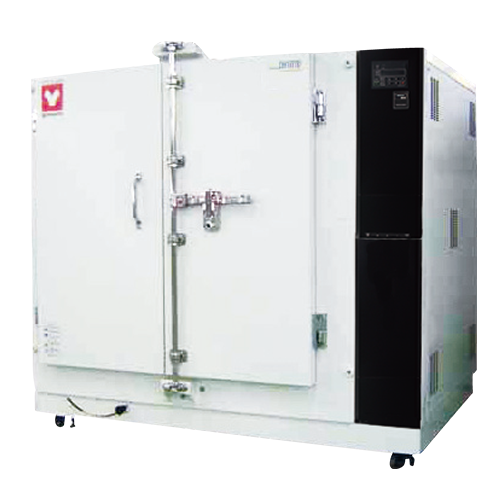

Fine Oven Programmable 512L 3 Phase Overview
The Fine Oven Programmable 512L 3 Phase (Yamato Scientific DF832) is a 512-liter laboratory mechanical convection oven engineered for high-throughput drying and heat treatment from ambient +15°C up to 200°C. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
A motorized exhaust damper drives quick air exchange and rapid in-chamber cooling, while precise convection holds large parts at a constant temperature. Interactive key entry on the control panel pairs with a green LED digital display, making programmable setup and temperature adjustment straightforward for daily operation.
Built for installations needing serious capacity, the DF832 measures 68 × 56 × 69 inches and weighs 940 lbs. Power runs on 220V 3-phase service. Manufactured in Japan, the oven is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 certified production.
Key Features
- 512L capacity: large chamber supports high-throughput drying and heat treatment of bulky or numerous parts in a single run.
- Exhaust damper: motorized damper enables quick air exchange and faster in-chamber cooling between cycles.
- Programmable control: interactive key entry with a green LED digital display for easy temperature and program settings.
- 200°C max temperature: operating range of ambient +15 to 200°C with high-accuracy temperature control.
- Energy monitoring: built-in power consumption and CO₂ emission monitoring for operational tracking.
- Safety systems: increased safety features plus self-diagnostic functions to support reliable unattended runs.
How to Choose the Right Fine Oven
Selecting a fine oven comes down to matching chamber capacity, temperature ceiling, control type, and your site's electrical service to the work the oven will run. Use these axes to confirm fit before ordering.
- Capacity: the 512L chamber suits high-volume batches and large parts; match interior volume to your throughput and part dimensions.
- Temperature range: an ambient +15 to 200°C window covers most drying, curing, and heat-treatment protocols. Confirm your process peak falls within it.
- Control type: programmable key entry with digital display supports repeatable, documented cycles versus simple manual dials.
- Voltage and power: this unit requires 220V 3-phase service. Verify your facility supplies matching power before installation.
- Footprint and weight: at 68 × 56 × 69 in and 940 lbs, plan floor space, access, and load path in advance.
- Air management: the exhaust damper aids fume clearance and faster cooling, important for solvent-bearing or temperature-sensitive work.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 512 L |
| Max Temperature | 200°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Operating Temperature Range | ambient +15 to 200°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet coated w/ chemical-proof baking finish (exterior) Stainless steel plate (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926695 |
| Shipping Weight | 940 lbs |
| Dimensions (L × W × H) | 68 × 56 × 69 in |
| Component Size | 512 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DF-832 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com sells the Yamato Scientific DF832 as a stocked, ready-to-ship laboratory oven backed by direct support from lab-equipment specialists.
- Authorized Yamato Scientific dealer: a genuine factory unit with full manufacturer warranty.
- In stock: ships from USA inventory, no special-order wait.
- Specialist support: dedicated lab-equipment specialists answer spec and installation questions before you order.
- Certified manufacturing: produced under Yamato's ISO 9001:2015 and ISO 14001:2015 quality and environmental systems.
Frequently Asked Questions
What is the temperature range of the Yamato DF832 fine oven?
The DF832 operates from ambient +15°C up to a maximum of 200°C. High-accuracy convection control maintains a constant set temperature across the chamber for consistent drying and heat treatment.
How large is the chamber capacity?
The DF832 offers a 512-liter chamber, sized for high-throughput batches and large parts. The unit's overall dimensions are 68 × 56 × 69 inches and it weighs 940 lbs.
What electrical service does the DF832 require?
The DF832 requires 220V 3-phase power. Confirm your facility provides matching 3-phase service before installation, as this is a large-capacity oven.
What materials are used in the oven construction?
The interior is stainless steel plate, and the exterior is chrome-free electrogalvanized carbon steel sheet coated with a chemical-proof baking finish, giving durable resistance to lab environments.
Does the DF832 offer programmable control?
Yes. The DF832 uses interactive key entry on the control panel with a green LED digital display, allowing programmable temperature settings and repeatable cycle control.
Where is the Yamato DF832 manufactured?
The DF832 is manufactured in Japan by Yamato Scientific under ISO 9001:2015 and ISO 14001:2015 certified production systems. LabSupplies.com ships it from USA inventory.
