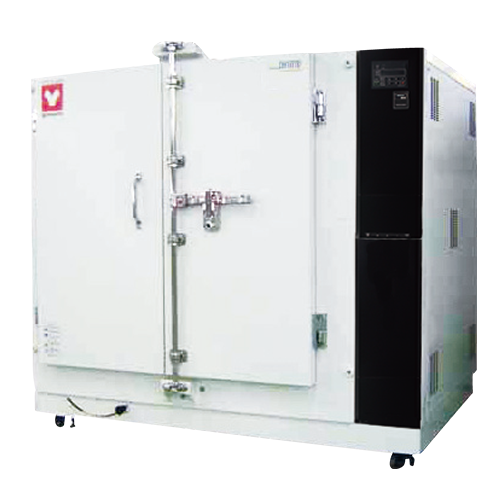

Fine Oven Programmable 1000L 3 Phase Overview
The Fine Oven Programmable 1000L 3 Phase (model DF1032) is a large-capacity mechanical convection oven from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This 1000-liter unit delivers an ambient +15 to 200°C operating range with high-accuracy temperature control for constant-temperature drying and heat treatment of large parts.
Construction pairs a stainless steel interior chamber with a chrome-free electrogalvanized carbon steel exterior finished in a chemical-proof baking coat. An exhaust damper drives quick venting and in-chamber cooling, while interactive key entry and a green LED digital display simplify program setup and recall.
Running on 220V 3-phase power, the DF1032 measures 68 × 78 × 78 inches and weighs 1370 lbs. Power consumption and CO₂ emissions monitoring support facility reporting. Manufactured in Japan, the oven carries ISO 9001:2015 and ISO 14001:2015 certification alongside self-diagnostic functions for added operational safety.
Key Features
- 1000 L chamber: high-throughput capacity for batching and constant-temperature maintenance of large parts.
- High-accuracy temperature control: precise regulation across an ambient +15 to 200°C operating range.
- Exhaust damper: enables quick venting and in-chamber cooling during and after cycles.
- Programmable control panel: interactive key entry with a green LED digital display for easy program setup.
- Energy monitoring: tracks power consumption and CO₂ emissions for facility reporting.
- Self-diagnostic safety functions: increased safety with built-in fault detection.
How to Choose the Right Fine Oven
Matching a fine oven to your workflow comes down to chamber size, thermal range, and the site power and footprint your facility can support. Evaluate these axes against your throughput and the parts you process.
- Capacity: the 1000 L chamber suits high-volume batches and large parts; confirm your typical load volume before sizing.
- Temperature range: an ambient +15 to 200°C range covers most drying and heat-treatment tasks; verify your protocol's setpoints fall inside it.
- Control type: programmable key entry with LED display supports repeatable, multi-step cycles versus simple fixed-setpoint operation.
- Voltage and power: this model requires 220V 3-phase service; confirm your facility supplies matching circuits before purchase.
- Footprint: at 68 × 78 × 78 inches and 1370 lbs, plan floor space, clearance, and delivery access in advance.
- Safety features: self-diagnostic functions and exhaust control matter for unattended runs and operator protection.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1000 L |
| Max Temperature | 200°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Operating Temperature Range | ambient +15 to 200°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet coated w/ chemical-proof baking finish (exterior) Stainless steel plate (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926701 |
| Shipping Weight | 1370 lbs |
| Dimensions (L × W × H) | 68 × 78 × 78 in |
| Component Size | 1000 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DF-1032 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DF1032 ships as a genuine factory unit backed by the manufacturer warranty. Our lab-equipment specialists answer spec and configuration questions before you order.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for technical and spec questions.
Frequently Asked Questions
What is the operating temperature range of the Yamato DF1032 fine oven?
The DF1032 operates from ambient +15°C up to a maximum of 200°C. This range covers standard drying, curing, and heat-treatment protocols for laboratory and industrial parts.
What is the chamber capacity and overall footprint?
The DF1032 offers a 1000-liter chamber capacity. The unit measures 68 × 78 × 78 inches (L × W × H) and weighs 1370 lbs, so plan floor space, clearance, and delivery access accordingly.
What voltage and power supply does the DF1032 require?
The DF1032 runs on 220V 3-phase power. Confirm your facility provides matching 3-phase service and circuits before installation.
What materials are used in the oven's construction?
The interior chamber is stainless steel plate. The exterior is chrome-free electrogalvanized carbon steel coated with a chemical-proof baking finish for durability.
Is the control panel programmable?
Yes, the DF1032 features interactive key entry with a green LED digital display for programmable, repeatable cycle setup. It also monitors power consumption and CO₂ emissions.
Where is the DF1032 manufactured and is it certified?
The DF1032 is manufactured in Japan by Yamato Scientific. Production is backed by ISO 9001:2015 and ISO 14001:2015 certification.
