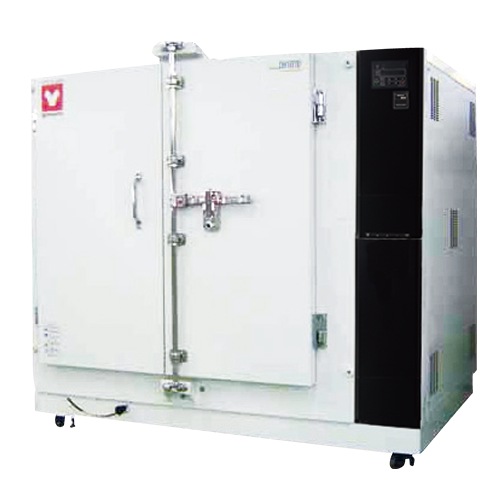

Fine Oven Programmable 512L 3 Phase Overview
The Fine Oven Programmable 512L 3 Phase (model DH832) is a large mechanical convection oven from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Holding 512 liters, this unit maintains precise temperatures from ambient +15°C up to 300°C, supporting high-throughput processing of large parts and batches.
Construction pairs a stainless steel interior chamber with a chrome-free electrogalvanized carbon steel exterior finished in a chemical-proof baking coating. An exhaust damper drives quick exhaust and in-chamber cooling, while high-accuracy control holds large loads at a constant set temperature.
Power requirements are 220V, 3-phase, matching the demands of this 512-liter platform. Footprint measures 68 × 56 × 69 inches with a 940 lb shipping weight. Manufactured in Japan, the DH832 ships with ISO 9001:2015 and ISO 14001:2015 certification documentation.
Key Features
- Exhaust damper: enables quick exhaust and in-unit cooling for faster cycle turnover.
- High-accuracy control: maintains large parts at a constant temperature across the full ambient +15 to 300°C range.
- Programmable digital panel: interactive key entry with a green LED digital display for straightforward setting changes.
- Energy monitoring: tracks power consumption and CO₂ emissions during operation.
- Safety systems: increased safety features paired with self-diagnostic functions.
- 512L capacity: large chamber sized for high-throughput batch processing.
How to Choose the Right Fine Oven
Selecting a fine oven comes down to matching chamber size, temperature performance, control style, and site power to your workflow. Use these criteria to confirm the DH832 fits your application.
- Capacity: 512 liters suits large parts and high-volume batches; confirm the chamber accommodates your load size and throughput.
- Temperature range: ambient +15 to 300°C covers most drying, curing, and heat-treatment processes — verify your protocol stays within this band.
- Control type: programmable digital entry supports repeatable multi-step profiles versus simple fixed-point setups.
- Voltage and power: the DH832 requires 220V, 3-phase service; confirm your facility provides matching electrical infrastructure.
- Footprint: at 68 × 56 × 69 inches and 940 lb, plan floor space, clearance, and delivery access in advance.
- Safety and monitoring: self-diagnostics and power/CO₂ tracking matter for unattended runs and energy reporting.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 512 L |
| Max Temperature | 300°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Operating Temperature Range | ambient +15 to 300°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet coated w/ chemical-proof baking finish (exterior) Stainless steel plate (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926732 |
| Shipping Weight | 940 lbs |
| Dimensions (L × W × H) | 68 × 56 × 69 in |
| Component Size | 512 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DH-832 | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 1000L 3 Phase
- High Temperature Fine Oven Programmable 216L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DH832 ships as a genuine unit backed by the manufacturer warranty. Order directly and receive your oven from USA inventory.
- Authorized Yamato Scientific dealer — genuine unit with manufacturer warranty.
- In stock and ready to ship.
- Ships from USA inventory.
- Lab-equipment specialists available for specification questions.
Frequently Asked Questions
What is the temperature range of the Yamato DH832 fine oven?
The DH832 operates from ambient +15°C up to a maximum of 300°C. High-accuracy control holds large loads at a constant set temperature across that range.
What is the chamber capacity and overall size of the DH832?
The chamber holds 512 liters. External dimensions are 68 × 56 × 69 inches, and shipping weight is 940 lb, so plan floor space and delivery access accordingly.
What electrical service does the DH832 require?
The DH832 requires 220V, 3-phase power. Confirm your facility provides matching electrical infrastructure before installation.
What materials are used in the oven's construction?
The interior chamber is stainless steel plate. The exterior is chrome-free electrogalvanized carbon steel sheet coated with a chemical-proof baking finish.
Does the DH832 track energy use?
Yes. The DH832 monitors power consumption and CO₂ emissions during operation, and it includes self-diagnostic functions for added safety.
Where is the DH832 manufactured and what certifications apply?
Yamato Scientific manufactures the DH832 in Japan. The unit ships with ISO 9001:2015 and ISO 14001:2015 certification documentation.
