High Temperature Fine Oven Programmable 216L 3 Phase Overview

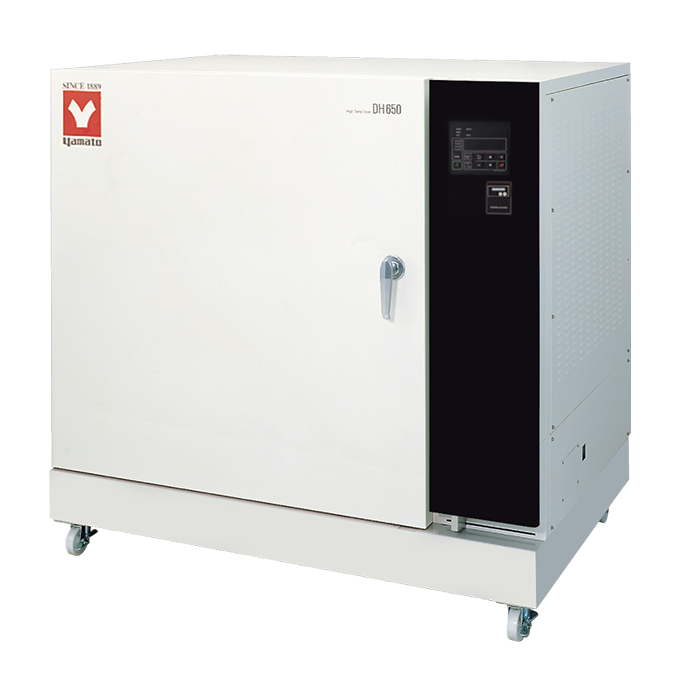

The High Temperature Fine Oven Programmable 216L 3 Phase (Yamato Scientific DH650Z) is a 216 L mechanical convection oven rated to a 500°C maximum temperature. Designed for demanding heat-treatment and high-temperature drying, this fine oven supports fixed-temperature, programmed, quick auto-stop, auto-stop, and auto-start operation. LabSupplies.com supplies it as an authorized Yamato Scientific dealer.
Built with a stainless steel interior chamber, the DH650Z resists the corrosion and oxidation that accompany sustained high-temperature cycles. Its exterior uses bonderized steel sheet with a melamine resin baking finish for durability. An exhaust damper enables rapid in-chamber exhaust and cooling between runs, shortening turnaround on sequential batches.
Power requirements are 220V, 3 phase, matching the load of high-temperature equipment. Footprint measures 65 × 52 × 67 in with a shipping weight of 1003 lbs, so site planning and circuit verification should precede installation. Manufactured in Japan, the unit is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 quality and environmental certifications.
Key Features
- 500°C maximum temperature: high-temperature capability for demanding heat treatment, drying, and curing applications.
- 216 L chamber: large working volume for batch processing and bulk loads.
- Multi-mode operation: fixed-temperature, program, quick auto-stop, auto-stop, and auto-start functions cover routine and unattended cycles.
- Programmable control: stored temperature profiles support repeatable, multi-step thermal processes.
- Exhaust damper: enables quick exhaust and in-chamber cooling between runs.
- Stainless steel interior: corrosion-resistant chamber built for sustained high-temperature service.
How to Choose the Right Fine Oven
Selecting a fine oven comes down to matching chamber size, temperature ceiling, and electrical supply to your workflow and facility. Use the criteria below to confirm the DH650Z fits your process and your site.
- Capacity: a 216 L chamber suits larger batch loads; confirm your sample volume and tray layout against the working space.
- Temperature range: a 500°C ceiling covers high-temperature heat treatment and curing that standard drying ovens cannot reach.
- Control type: programmable, multi-mode operation matters when you run repeatable profiles or unattended auto-stop and auto-start cycles.
- Voltage and power: 220V 3-phase service is required, so verify available circuits before ordering.
- Footprint and weight: at 65 × 52 × 67 in and 1003 lbs, plan floor space, clearance, and delivery access in advance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 216 L |
| Max Temperature | 500°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced air circulation and ventilation |
| Temperature Control System | PID-Z control |
| Sensor | Double K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Variable air-flow function; power/CO₂ monitoring; up to 99 program steps |
| Material | Bonderized steel sheet, melamine resin baking finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059933242 |
| Shipping Weight | 1003 lbs |
| Dimensions (L × W × H) | 65 × 52 × 67 in |
| Component Size | 216 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DH-650Z | EA | EA |
Documentation
More in This Series
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
- Fine Oven Programmable 91L
- Fine Oven Programmable 216L
- Fine Oven Programmable 512L 3 Phase
- Fine Oven Programmable 1000L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com ships the Yamato Scientific DH650Z direct from USA inventory, so you order and receive a genuine, warranty-backed unit without going through a quote process.
- Authorized Yamato Scientific dealer: genuine equipment covered by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated support for spec, electrical, and site-fit questions.
- Direct ordering: place your order online without a back-and-forth sales process.
Frequently Asked Questions
What is the maximum temperature of the Yamato DH650Z fine oven?
The DH650Z reaches a maximum temperature of 500°C. This high ceiling supports heat treatment, curing, and high-temperature drying that standard convection ovens cannot achieve.
What is the chamber capacity and overall size of the DH650Z?
The DH650Z provides a 216 L chamber capacity. External dimensions are 65 × 52 × 67 in (L × W × H), and the unit weighs 1003 lbs, so confirm floor space and delivery access before installation.
What electrical supply does the DH650Z require?
The DH650Z requires 220V, 3-phase power. Verify that the correct 3-phase circuit is available at the installation site prior to ordering.
What operating modes does the DH650Z support?
The DH650Z supports fixed-temperature, program, quick auto-stop, auto-stop, and auto-start operation. Programmable control allows repeatable multi-step thermal profiles, including unattended cycles.
What materials are used in the DH650Z construction?
The interior chamber is stainless steel for corrosion resistance under sustained high heat. The exterior is bonderized steel sheet with a melamine resin baking finish for durability.
Where is the DH650Z manufactured and is it certified?
The DH650Z is manufactured in Japan by Yamato Scientific. The manufacturer holds ISO 9001:2015 and ISO 14001:2015 certifications for quality and environmental management.
