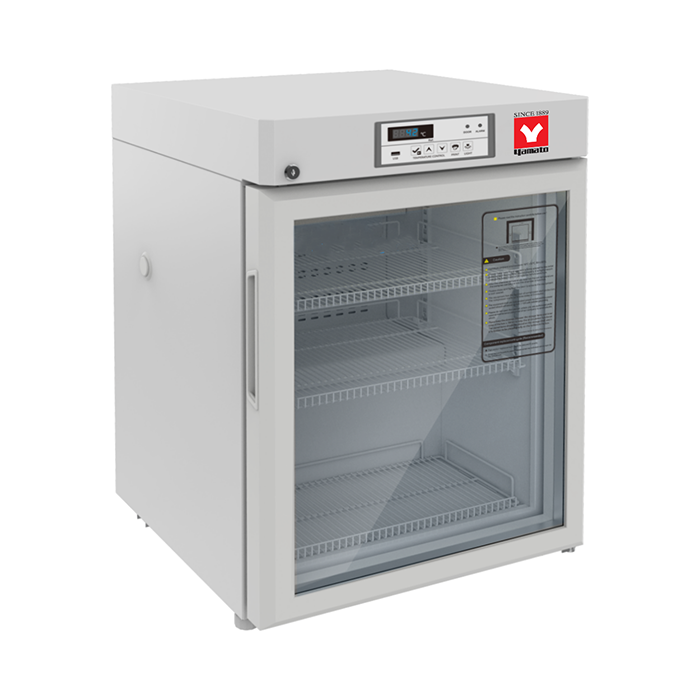

Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost Overview
The Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost (model UCR101G) from Yamato Scientific holds laboratory and pharmacy samples within a controlled 2°C to 8°C range across 4.6 cubic feet. LabSupplies.com, authorized dealer, supplies this single glass-door unit for safe storage averaging +4°C. Microprocessor control and a keyed lockable door protect temperature-sensitive inventory.
Painted white steel forms the exterior, while the lockable glass door allows visual stock checks without breaking the cold chain. Forced-air circulation paired with a hermetic R600a compressor maintains even temperatures across two adjustable shelves and one basket. Cycle defrost and US EPA / SNAP-approved insulation support stable, low-maintenance operation.
Power runs on 115V, 60 Hz single-phase through a standard NEMA 5-15 plug. Exterior dimensions measure 25.75" × 24.75" × 32", and the 150 lb cabinet rides on two rear casters with leveling feet. Manufactured in China, this unit is UL listed, Energy Star rated, and CDC/VFC compliant, with a 1" access porthole and multi-point alarm system.
Key Features
- Temperature range: microprocessor-driven digital control holds 2°C to 8°C for vaccine, reagent, and sample storage.
- Multi-point alarms: hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure warnings.
- Lockable glass door: single keyed glass door enables visual checks while securing contents.
- Forced-air cooling: hermetic compressor and R600a refrigerant deliver even circulation throughout the cabinet.
- Configurable storage: two adjustable shelves, one basket, and a 1" access porthole for probes or recorders.
- Compliance: UL listed, Energy Star rated, CDC and VFC compliant for regulated storage programs.
How to Choose the Right Undercounter Fridge/Freezer
Selecting an undercounter laboratory refrigerator comes down to matching storage volume, temperature precision, and site requirements to your protocol. Weigh these axes before specifying a unit.
- Capacity: 4.6 cu.ft. suits benchtop or undercounter footprints; confirm shelf and basket layout matches your sample mix.
- Temperature range: a 2°C to 8°C window is the standard band for vaccines, reagents, and biologics requiring +4°C average storage.
- Control type: microprocessor digital control with multi-point alarms provides traceable monitoring for regulated workflows.
- Voltage and power: verify a 115V, 60 Hz, single-phase circuit with a NEMA 5-15 outlet is available at the install location.
- Footprint and mobility: exterior dimensions and rear casters with leveling feet determine fit beneath counters or against walls.
- Compliance: UL, Energy Star, and CDC/VFC requirements may dictate eligibility for vaccine storage programs.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 4.6 cu.ft. |
| Temperature Range | 2°C to 8°C |
| Voltage | 115V |
| Defrost | Cycle |
| Material | Glass |
| Door | Single glass, lockable (keyed) |
| Interior Dimensions | 21.5" × 20" × 23.25" (55 × 51 × 59 cm) |
| Exterior Dimensions | 25.75" × 24.75" × 32" (65 × 63 × 81 cm) |
| Temperature Control | Microprocessor, digital |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure |
| Access Port | 1" porthole |
| Storage | 2 adjustable shelves, 1 basket |
| Refrigerant | R600a |
| Compressor | Hermetic compressor |
| Air Circulation | Forced air |
| Insulation | US EPA / SNAP approved |
| Exterior Construction | Painted steel, white |
| Casters | 2 rear, with leveling feet |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves; extra shelves |
| Country of Origin | China |
| GTIN (Barcode) | 797059930333 |
| Shipping Weight | 150 lbs |
| Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 4.6 CF |
| Other Certification | UL listed, Energy Star,CDC and VFC compliant |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| UCR-101G | EA | EA |
Documentation
More in This Series
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
- Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every UCR101G ships as a genuine, factory-warranted unit backed by manufacturer support. Order directly and route spec questions to our lab-equipment specialists.
- Authorized dealer: genuine Yamato Scientific unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for configuration and compliance questions.
Frequently Asked Questions
What temperature range does the UCR101G maintain?
The UCR101G holds a controlled 2°C to 8°C range, averaging +4°C, managed by a microprocessor digital temperature controller for laboratory and pharmacy sample storage.
What is the storage capacity and footprint?
The unit offers 4.6 cubic feet of interior capacity. Interior dimensions are 21.5" × 20" × 23.25" and exterior dimensions are 25.75" × 24.75" × 32", with two adjustable shelves and one basket.
What power supply does this refrigerator require?
It runs on 115V, 60 Hz, single-phase power using a standard NEMA 5-15 plug. Confirm a matching outlet is available at the install location.
What alarms and monitoring features are included?
The UCR101G includes hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms, plus a 1" access porthole for external probes or chart recorders.
Is the UCR101G compliant for vaccine storage programs?
Yes. The unit is UL listed, Energy Star rated, and CDC and VFC compliant, supporting regulated vaccine and biologic storage requirements.
What refrigerant and cooling system does it use?
It uses a hermetic compressor with R600a refrigerant and forced-air circulation. Cycle defrost and US EPA / SNAP-approved insulation maintain stable interior temperatures.
