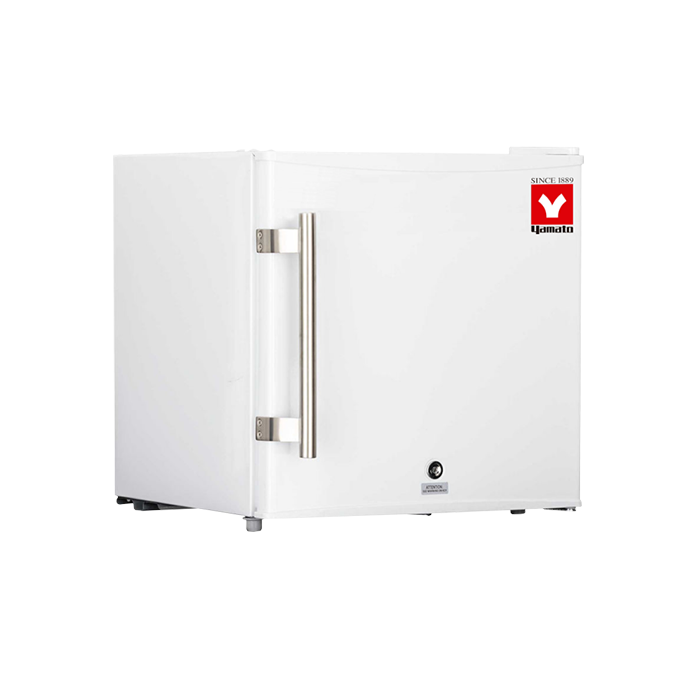

Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost Overview
The Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost (model UCF000) is a compact laboratory freezer from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Rated at 1.5 cubic feet of usable volume, this upright unit holds a -20°C / -4°F setpoint for pharmacy and lab cold storage.
A white powder-coated steel cabinet encloses a steel interior fitted with one fixed shelf behind a solid, keyed-lockable door. Cooling runs on a hermetic compressor and R600a refrigerant, with gravity-flow air circulation governed by a mechanical dial thermostat. Urethane-foam insulation (US EPA / SNAP approved) surrounds the chamber, and a 3/8" access port routes external probes.
Power draws from a 115V, 60 Hz, single-phase supply through a NEMA 5-15 plug. Four leveling legs seat the 18.5" × 19.5" × 19.5" cabinet on a benchtop or beneath a counter. Manufactured in China and UL Listed, the freezer ships at 150 lb and accepts an optional chart recorder or cold-safety gloves.
Key Features
- Temperature: -20°C / -4°F setpoint held by a mechanical dial thermostat.
- Capacity: 1.5 cu.ft. steel interior with one fixed shelf; 14" × 13.25" × 14.5" usable space.
- Cooling system: hermetic compressor, R600a refrigerant, and gravity-flow air circulation.
- Security: solid, keyed-lockable door restricts access to stored materials.
- Monitoring access: 3/8" access port for external probes and chart-recorder leads.
- Installation: four leveling legs, 115V NEMA 5-15 plug, UL Listed and SNAP-approved insulation.
How to Choose the Right Undercounter Fridge/Freezer
Specifying an undercounter freezer means matching internal volume, target temperature, and site power to the materials you store and the space you have. Use the criteria below to confirm fit .
- Capacity: 1.5 cu.ft. suits modest sample loads; verify your inventory footprint against the 14" × 13.25" × 14.5" interior.
- Temperature range: the -20°C / -4°F rating fits reagents, samples, and pharmacy stock that require frozen storage but not ultra-low temperatures.
- Control type: a mechanical dial thermostat gives simple manual adjustment; pair it with the access port if you need independent temperature logging.
- Voltage: confirm a standard 115V, 60 Hz, single-phase outlet with a NEMA 5-15 receptacle is available at the install point.
- Footprint: the 18.5" × 19.5" × 19.5" cabinet and four leveling legs allow benchtop or under-counter placement in tight labs.
- Security: the keyed-lockable solid door matters where controlled or sensitive materials are stored.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1.5 cu.ft. |
| Voltage | 115V |
| Defrost | Manual |
| Temperature Range | -20°C / -4°F |
| Temperature Control | Mechanical dial thermostat |
| Refrigerant | R600a |
| Air Circulation | Gravity flow |
| Interior Construction | Steel |
| Shelves | 1 fixed shelf |
| Access Port | 3/8" access port |
| Leveling / Casters | 4 leveling legs |
| Interior Dimensions | 14" × 13.25" × 14.5" (35 × 33 × 36 cm) |
| Exterior Dimensions | 18.5" × 19.5" × 19.5" (46 × 49 × 49 cm) |
| Door Type | Solid, lockable (keyed) |
| Compressor | Hermetic compressor |
| Insulation | Urethane foam (US EPA / SNAP approved) |
| Exterior Construction | Painted steel |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves |
| Country of Origin | China |
| Material | Cabinet constructed of white powder-coated steel |
| GTIN (Barcode) | 797059930364 |
| Shipping Weight | 150 lbs |
| Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 1.5 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| UCF-000 | EA | EA |
Documentation
More in This Series
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every UCF000 ships as a genuine factory unit backed by the manufacturer warranty. Order directly and ship from USA inventory.
- Authorized dealer: genuine Yamato Scientific equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory, no back-order wait.
- Lab-equipment specialists: a dedicated team answers spec and configuration questions.
- Accessory support: optional chart recorder and cold-safety gloves available for the same unit.
Frequently Asked Questions
What temperature does the UCF000 freezer maintain?
The UCF000 maintains a -20°C / -4°F setpoint, controlled by a mechanical dial thermostat. It is designed for frozen reagent, sample, and pharmacy storage that does not require ultra-low temperatures.
What is the capacity and footprint of this freezer?
Internal capacity is 1.5 cubic feet, with usable interior dimensions of 14" × 13.25" × 14.5". The exterior cabinet measures 18.5" × 19.5" × 19.5", suiting benchtop or under-counter placement.
What power supply does the UCF000 require?
The UCF000 runs on 115V, 60 Hz, single-phase power through a NEMA 5-15 plug. Confirm a standard 115V outlet is available at the installation site before ordering.
Does this freezer have automatic or manual defrost?
This unit uses manual defrost. Cooling is provided by a hermetic compressor with R600a refrigerant and gravity-flow air circulation.
What materials is the cabinet made from, and can it be locked?
The exterior is white powder-coated steel and the interior is steel with one fixed shelf. The solid door is keyed-lockable, restricting access to stored materials.
Is the UCF000 certified, and can external monitoring be added?
The UCF000 is UL Listed, with US EPA / SNAP-approved urethane-foam insulation. A 3/8" access port allows external probes, and an optional chart recorder and cold-safety gloves are available.
