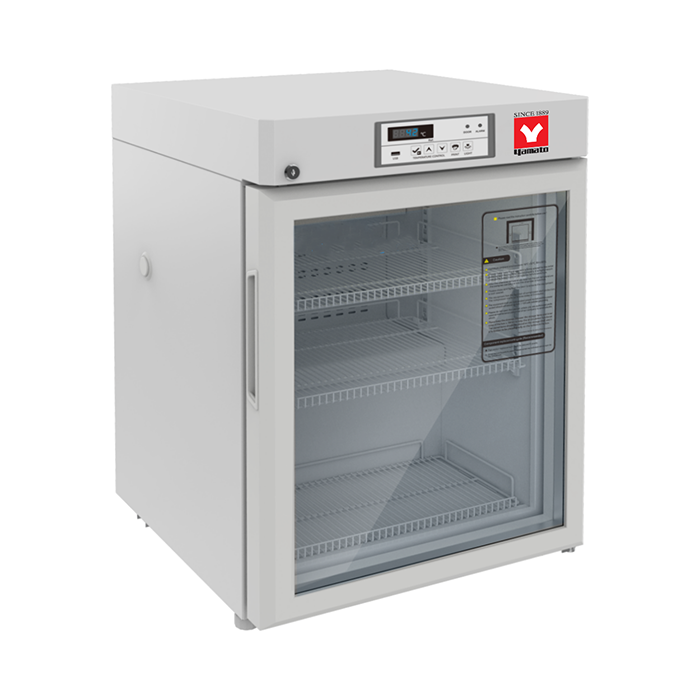

Why order the UCR001G from LabSupplies.com
Key Features
- Microprocessor temperature control: digital regulation across a 2°C to 8°C range with cycle defrost.
- Multi-point alarm system: hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alerts.
- Lockable glass door: single keyed glass door for content visibility and secured access.
- Hydrocarbon refrigeration: R600a refrigerant, hermetic compressor, and forced-air circulation with EPA/SNAP-approved insulation.
- Mobile placement: two rear casters with leveling feet for undercounter or benchtop positioning.
How to Choose the Right Undercounter Fridge/Freezer
Matching a compact refrigerator to your workflow comes down to a few measurable specs. Weigh these axes against your samples, site power, and available space before committing.
- Control and monitoring: microprocessor digital control with a multi-point alarm suite matters where excursion tracking is required.
- Voltage and power: verify your circuit; this unit draws 115V, 60 Hz single-phase through a NEMA 5-15 plug.
- Footprint: exterior dimensions of 21.25" × 22" × 30" determine whether it slides under a counter or sits on a bench.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 2.64 cu.ft. |
| Temperature Range | 2°C to 8°C |
| Voltage | 115V |
| Defrost | Cycle |
| Material | Glass |
| Door | Single glass, lockable (keyed) |
| Interior Dimensions | 17.5" × 17.5" × 21.75" (44 × 44 × 54 cm) |
| Exterior Dimensions | 21.25" × 22" × 30" (54 × 56 × 76 cm) |
| Temperature Control | Microprocessor, digital |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure |
| Access Port | 1" porthole |
| Storage | 2 adjustable shelves, 1 basket |
| Refrigerant | R600a |
| Compressor | Hermetic compressor |
| Air Circulation | Forced air |
| Insulation | US EPA / SNAP approved |
| Exterior Construction | Painted steel, white |
| Casters | 2 rear, with leveling feet |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves; extra shelves |
| Country of Origin | China |
| GTIN (Barcode) | 797059930319 |
| Shipping Weight | 150 lbs |
| Shipping Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 2.64 CF |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare UCR Series Models
| Model | Capacity | Interior (W × D × H) | Exterior |
|---|---|---|---|
| UCR001G (this model) | 2.64 cu.ft. | 17.5" × 17.5" × 21.75" (44 × 44 × 54 cm) | 21.25" × 22" × 30" (54 × 56 × 76 cm) |
| UCR101G | 4.6 cu.ft. | 21.5" × 20" × 23.25" (55 × 51 × 59 cm) | 25.75" × 24.75" × 32" (65 × 63 × 81 cm) |
All models in this group share: temperature range 2°C to 8°C; shipping weight 150 lbs.
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| UCR-001G | 797059930319 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | UCR-001G |
| UNSPSC | 41103000 — Undercounter Refrigerator |
| HTS code | 8418.69.0180 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
More in This Series
- Yamato UCR001 Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Yamato UCR101 Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Yamato UCR101G Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Yamato UCF000 Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost
- Yamato UCF001 Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Yamato UCF101A Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Frequently Asked Questions
How much storage capacity does this refrigerator provide?
Interior capacity is 2.64 cu.ft. Interior dimensions measure 17.5" × 17.5" × 21.75", and the cabinet includes two adjustable shelves and one basket for organizing stock.
What power supply does the unit require?
The unit runs on 115V, 60 Hz single-phase power through a NEMA 5-15 plug. Confirm your circuit matches this configuration before installation.
What are the exterior dimensions and weight?
Exterior dimensions are 21.25" × 22" × 30", suiting undercounter or benchtop placement. Shipping weight is 150 lbs, and two rear casters with leveling feet aid positioning.
Which alarms and monitoring features are included?
The UCR001G includes hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms. A microprocessor digital controller manages temperature with cycle defrost.
What is the UNSPSC code for the Yamato UCR001G?
The Yamato UCR001G is classified under UNSPSC 41103000 (undercounter refrigerator).
Where is the Yamato UCR001G manufactured?
Yamato Scientific lists China as the country of origin for the UCR001G.
How does the Yamato UCR001G compare with the other UCR Series models?
Yamato builds this UCR Series line in 2 sizes: 2.64 cu.ft. (UCR001G) and 4.6 cu.ft. (UCR101G). All share temperature range 2°C to 8°C. The comparison table on this page lists capacity, interior (w × d × h) and exterior side by side.
What are the interior dimensions of the Yamato UCR001G?
The Yamato UCR001G chamber measures 17.5" × 17.5" × 21.75" (44 × 44 × 54 cm) inside (W × D × H).
What refrigeration system does the Yamato UCR001G use?
The Yamato UCR001G uses R600a refrigerant and cycle defrost.
What optional accessories are available for the Yamato UCR001G?
Yamato offers these options for the UCR001G: chart recorder; cold safety gloves; extra shelves.
What are the shipping dimensions and weight of the Yamato UCR001G?
Yamato's shipping data lists the UCR001G at 32 × 32 × 46 in and 150 lb packed.
