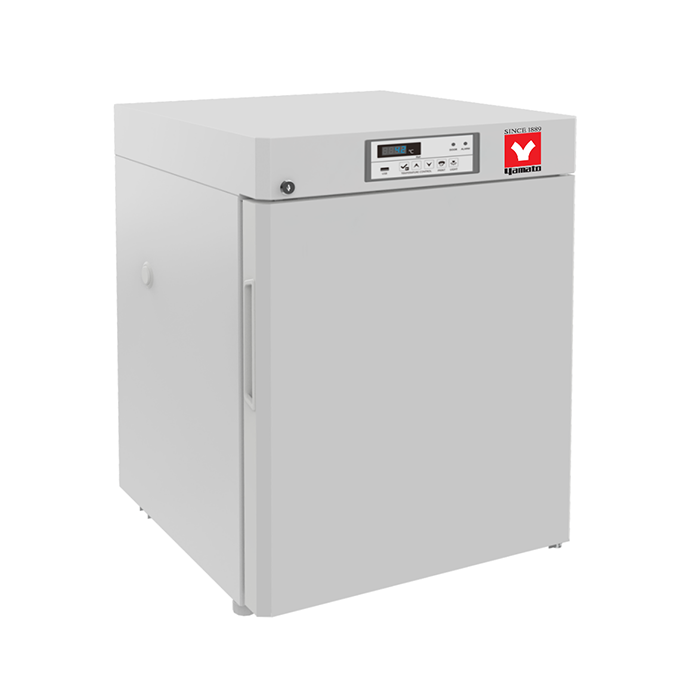

Why order the UCR101 from LabSupplies.com
Key Features
- Temperature range: maintains 2°C to 8°C for vaccine, reagent, and sample storage.
- Digital control: microprocessor temperature controller with digital readout.
- Comprehensive alarms: hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alerts.
- Forced-air cooling: hermetic compressor and R600a refrigerant deliver uniform circulation.
- Configurable interior: two adjustable shelves, one basket, and a 1" access porthole.
- Security and mobility: single solid keyed-lockable door, two rear casters, and leveling feet.
How to Choose the Right Undercounter Fridge/Freezer
Selecting an undercounter laboratory refrigerator means matching the cabinet to your sample volume, temperature requirements, and site power. Review these axes before purchase:
- Capacity: 4.6 cu.ft. fits compact undercounter footprints; confirm the shelf and basket layout against your sample load.
- Voltage and power: verify 115V, 60 Hz single-phase service and a NEMA 5-15 outlet at the install site.
- Footprint and placement: exterior dimensions and rear casters determine undercounter or benchtop fit.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 4.6 cu.ft. |
| Temperature Range | 2°C to 8°C |
| Voltage | 115V |
| Defrost | Cycle |
| Door | Single solid, lockable (keyed) |
| Interior Dimensions | 21.5" × 20" × 23.25" (55 × 51 × 59 cm) |
| Exterior Dimensions | 25.75" × 24.75" × 32" (65 × 63 × 81 cm) |
| Temperature Control | Microprocessor, digital |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure |
| Access Port | 1" porthole |
| Storage | 2 adjustable shelves, 1 basket |
| Refrigerant | R600a |
| Compressor | Hermetic compressor |
| Air Circulation | Forced air |
| Insulation | US EPA / SNAP approved |
| Exterior Construction | Painted steel, white |
| Casters | 2 rear, with leveling feet |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves; extra shelves |
| Country of Origin | China |
| GTIN (Barcode) | 797059930326 |
| Shipping Weight | 150 lbs |
| Shipping Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 4.6 CF |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare UCR Series Models
| Model | Capacity | Interior (W × D × H) | Exterior |
|---|---|---|---|
| UCR001 | 2.64 cu.ft. | 17.5" × 17.5" × 21.75" (44 × 44 × 54 cm) | 21.25" × 22" × 30" (54 × 56 × 76 cm) |
| UCR101 (this model) | 4.6 cu.ft. | 21.5" × 20" × 23.25" (55 × 51 × 59 cm) | 25.75" × 24.75" × 32" (65 × 63 × 81 cm) |
All models in this group share: temperature range 2°C to 8°C; shipping weight 150 lbs.
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| UCR-101 | 797059930326 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | UCR-101 |
| UNSPSC | 41103000 — Undercounter Refrigerator |
| HTS code | 8418.69.0180 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
More in This Series
- Yamato UCR001G Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Yamato UCR101G Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Yamato UCR001 Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Yamato UCF001 Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Yamato UCF101A Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
- Yamato UCF000 Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Frequently Asked Questions
How much storage capacity and what are the interior dimensions?
Capacity is 4.6 cu.ft. with interior dimensions of 21.5" × 20" × 23.25" (55 × 51 × 59 cm). The interior holds two adjustable shelves and one basket.
What power supply does the UCR101 require?
The unit requires 115V, 60 Hz single-phase power and ships with a NEMA 5-15 plug. Confirm a matching outlet is available at the installation site.
What is the UNSPSC code for the Yamato UCR101?
The Yamato UCR101 is classified under UNSPSC 41103000 (undercounter refrigerator).
Where is the Yamato UCR101 manufactured?
Yamato Scientific lists China as the country of origin for the UCR101.
How does the Yamato UCR101 compare with the other UCR Series models?
Yamato builds this UCR Series line in 2 sizes: 2.64 cu.ft. (UCR001) and 4.6 cu.ft. (UCR101). All share temperature range 2°C to 8°C. The comparison table on this page lists capacity, interior (w × d × h) and exterior side by side.
What optional accessories are available for the Yamato UCR101?
Yamato offers these options for the UCR101: chart recorder; cold safety gloves; extra shelves.
What are the shipping dimensions and weight of the Yamato UCR101?
Yamato's shipping data lists the UCR101 at 32 × 32 × 46 in and 150 lb packed.
