Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost Overview

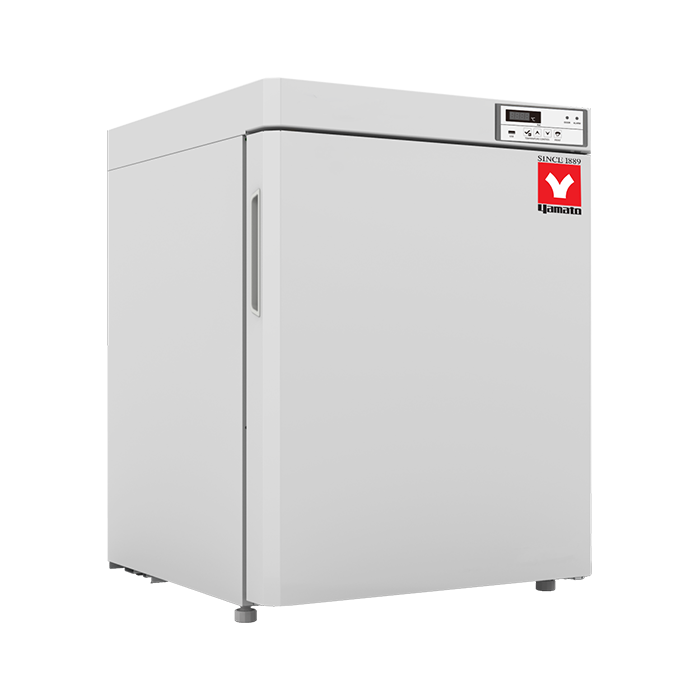

The Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost (model UCF101A) is a compact upright laboratory freezer from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This unit delivers 3.2 cu.ft. of storage across a -10°C to -25°C range. Pharmacy, vaccine, and research teams choose it for benchtop or undercounter placement where floor space stays tight.
Cabinet construction uses white powder-coated steel with a painted aluminum interior and urethane foam insulation approved under US EPA SNAP. R290 refrigerant pairs with a hermetic compressor and direct cooling. Two adjustable shelves plus a base shelf organize inventory, while a 1" access port routes external probes through the wall.
Power comes from a 115V, 60 Hz, single-phase supply via a NEMA 5-15 plug. Exterior dimensions measure 23.75" × 21.5" × 32", and the unit ships at 150 lbs. Manufactured in China, the freezer carries UL listing plus Energy Star, CDC, and VFC compliance. Digital temperature display and a multi-point alarm suite round out monitoring.
Key Features
- Digital temperature control: on-board display sets and monitors the -10°C to -25°C range.
- Multi-point alarm suite: hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alerts, plus dry-contact alarm relay.
- USB data logging: records at adjustable intervals and downloads as PDF for documentation and audits.
- R290 refrigerant system: hermetic compressor with direct cooling and US EPA SNAP-approved urethane foam insulation.
- Flexible interior: two adjustable shelves plus a base shelf, with a 1" access port for external probes.
- Secure, mobile design: solid keyed-lock door, two front leveling legs, and two rear casters.
How to Choose the Right Undercounter Fridge/Freezer
Selecting an undercounter freezer means matching cold storage to your samples, your bench space, and your facility power. Weigh these factors before ordering.
- Capacity: 3.2 cu.ft. suits small to moderate sample loads in pharmacies and research labs.
- Temperature range: confirm your samples store safely within the -10°C to -25°C window this unit holds.
- Control and monitoring: a digital display plus alarms and USB data logging support compliance documentation.
- Voltage: verify a standard 115V, 60 Hz circuit and NEMA 5-15 outlet at the install point.
- Footprint: check exterior dimensions of 23.75" × 21.5" × 32" against undercounter or benchtop clearance.
- Security and safety: a lockable keyed door and UL listing matter for controlled-access storage.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 3.2 cu.ft. |
| Voltage | 115V |
| Defrost | Manual |
| Temperature Range | -10°C to -25°C / 14°F to -13°F |
| Temperature Control | Digital display |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure; alarm relay dry contacts |
| Data Logging | Yes, adjustable intervals; downloadable via USB (PDF) |
| Refrigerant | R290 |
| Air Circulation | Direct cooling |
| Interior Construction | Painted aluminum |
| Shelves | 2 adjustable shelves plus base shelf |
| Access Port | 1" access port |
| Leveling / Casters | 2 front leveling legs, 2 rear casters |
| Interior Dimensions | 19.5" × 15.75" × 22" (50 × 40 × 56 cm) |
| Exterior Dimensions | 23.75" × 21.5" × 32" (60 × 64 × 84 cm) |
| Certification | UL listed |
| Door Type | Solid, lockable (keyed) |
| Compressor | Hermetic compressor |
| Insulation | Urethane foam (US EPA / SNAP approved) |
| Exterior Construction | Painted steel |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves |
| Country of Origin | China |
| Material | Cabinet constructed of white powder-coated steel |
| GTIN (Barcode) | 797059930388 |
| Shipping Weight | 150 lbs |
| Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 3.2 CF |
| Other Certification | UL listed, Energy Star,CDC and VFC compliant |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| UCF-101A | EA | EA |
Documentation
More in This Series
- Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Why Buy From LabSupplies.com
Order the UCF101A directly from LabSupplies.com and skip the back-and-forth of a quote request. We stock genuine Yamato Scientific equipment and ship from USA inventory, so your freezer arrives ready to install.
- Authorized Yamato Scientific dealer: genuine unit backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: on hand for spec and compatibility questions.
- Direct purchase: order online without procurement delays.
Frequently Asked Questions
What temperature range does the UCF101A reach?
The UCF101A operates from -10°C to -25°C (14°F to -13°F). A digital display sets and monitors the setpoint, and the unit uses manual defrost.
What is the storage capacity and footprint?
The freezer offers 3.2 cu.ft. of interior storage. Interior dimensions are 19.5" × 15.75" × 22", and exterior dimensions are 23.75" × 21.5" × 32". Shipping weight is 150 lbs.
Does the UCF101A run on a standard 115V circuit?
Yes. It runs on 115V, 60 Hz, single-phase power through a standard NEMA 5-15 plug, so no special wiring is required.
What materials are used in the cabinet and interior?
The cabinet is white powder-coated steel with a painted aluminum interior. Urethane foam insulation is US EPA SNAP-approved, and R290 refrigerant pairs with a hermetic compressor and direct cooling.
What alarm and data-logging features are included?
The freezer includes hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms, plus dry-contact alarm relay. Data logging records at adjustable intervals and downloads via USB as PDF.
Is the UCF101A certified for laboratory and vaccine use?
Yes. The unit is UL listed and noted as Energy Star, CDC, and VFC compliant, with a solid keyed-lock door for controlled-access storage.
