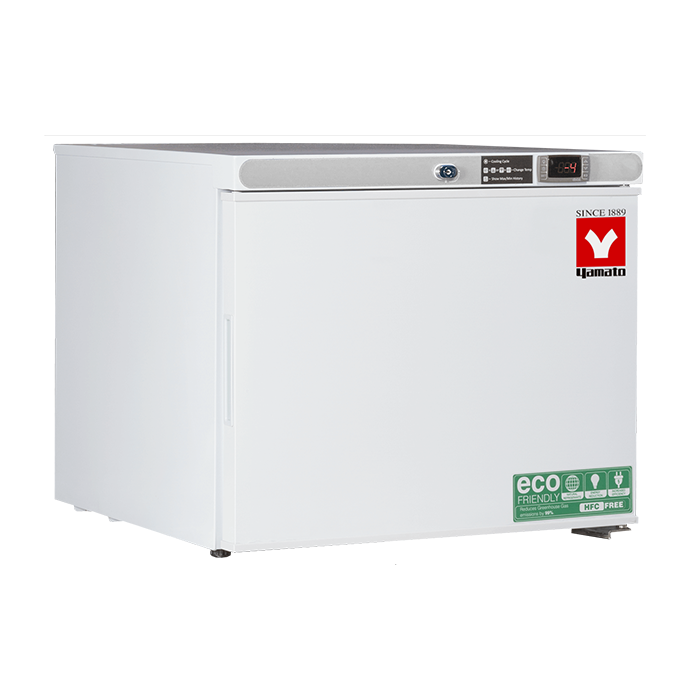

Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost Overview
The Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost (model UCF001) from Yamato Scientific delivers a -15°C to -25°C operating range inside a 1.7 cu.ft. cabinet. LabSupplies.com supplies this laboratory freezer as an authorized Yamato Scientific dealer. Pharmacy and research teams gain reliable cold storage that fits beneath a bench or on a countertop.
White powder-coated steel forms the exterior cabinet, while painted aluminum lines the interior. Two adjustable shelves plus a base shelf organize inventory, and a 1" access port routes external probes. Urethane foam insulation (US EPA/SNAP approved) and an R290 hermetic compressor drive direct cooling. Digital display controls regulate the set point.
Power draws from a 115V, 60 Hz single-phase circuit through a NEMA 5-15 plug. Exterior dimensions measure 28.75" × 24" × 20.5", and the unit weighs 150 lbs. UL listed, C-UL, and Energy Star certifications apply. Manufactured in China, this freezer ships with a solid lockable keyed door and two front leveling legs.
Key Features
- Digital temperature control: digital display regulates the -15°C to -25°C range with adjustable-interval data logging.
- Multi-point alarm system: hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alerts, plus alarm relay dry contacts for remote monitoring.
- R290 refrigerant cooling: hermetic compressor and direct-cooling design backed by urethane foam insulation.
- Flexible interior: two adjustable shelves plus a base shelf, with a 1" access port for external probes.
- Solid lockable door: keyed security on a painted-steel cabinet with white powder-coated finish.
- Certified construction: UL listed, C-UL, and Energy Star rated for laboratory and pharmacy use.
How to Choose the Right Undercounter Fridge/Freezer
Selecting an undercounter freezer means matching storage demand, sample sensitivity, and site power to the right cabinet. Evaluate these axes .
- Temperature range: confirm the unit reaches your protocol set point. This model holds -15°C to -25°C for general frozen sample storage.
- Capacity: a 1.7 cu.ft. interior suits compact benchtop or undercounter footprints; size to peak inventory, not average.
- Control type: digital display and data logging support compliance documentation that analog dials cannot provide.
- Voltage and power: verify available circuits match the 115V, 60 Hz single-phase NEMA 5-15 requirement.
- Footprint: measure exterior clearance (28.75" × 24" × 20.5") against bench or undercounter space.
- Safety and monitoring: multi-point alarms, a lockable door, and dry-contact relays protect sensitive material and enable remote oversight.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1.7 cu.ft. |
| Voltage | 115V |
| Defrost | Manual |
| Temperature Range | -15°C to -25°C / 5°F to -13°F |
| Temperature Control | Digital display |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure; alarm relay dry contacts |
| Data Logging | Yes, adjustable intervals |
| Refrigerant | R290 |
| Air Circulation | Direct cooling |
| Interior Construction | Painted aluminum |
| Shelves | 2 adjustable shelves plus base shelf |
| Access Port | 1" access port |
| Leveling / Casters | 2 front leveling legs |
| Interior Dimensions | 17.75" × 13.75" × 16" (45 × 34 × 40 cm) |
| Exterior Dimensions | 28.75" × 24" × 20.5" (74 × 61 × 53 cm) |
| Certification | UL listed, C-UL, Energy Star |
| Door Type | Solid, lockable (keyed) |
| Compressor | Hermetic compressor |
| Insulation | Urethane foam (US EPA / SNAP approved) |
| Exterior Construction | Painted steel |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves |
| Country of Origin | China |
| Material | Cabinet constructed of white powder-coated steel |
| GTIN (Barcode) | 797059930371 |
| Shipping Weight | 150 lbs |
| Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 1.7 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| UCF-001 | EA | EA |
Documentation
More in This Series
- Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
- Undercounter & Countertop Freezer -20°C, 1.5 cu.ft., Manual Defrost
View all Undercounter Refrigerators & Freezers →
Why Buy From LabSupplies.com
LabSupplies.com ships the Yamato Scientific UCF001 freezer directly from USA inventory, so you order without delay or back-and-forth.
- Authorized Yamato Scientific dealer: every unit is genuine and carries the full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated team answers spec and configuration questions before you order.
Frequently Asked Questions
What temperature range does the UCF001 freezer reach?
The UCF001 operates from -15°C to -25°C (5°F to -13°F). A digital display controls the set point, and adjustable-interval data logging records performance over time.
What is the storage capacity and footprint?
Storage capacity is 1.7 cu.ft. Interior dimensions are 17.75" × 13.75" × 16" and exterior dimensions are 28.75" × 24" × 20.5", with the unit weighing 150 lbs.
What power supply does this freezer require?
It requires 115V, 60 Hz single-phase power and ships with a NEMA 5-15 plug. Confirm your bench or undercounter location has a matching circuit before installation.
What materials are used in the cabinet and interior?
The exterior cabinet is white powder-coated painted steel, and the interior is painted aluminum. Urethane foam insulation, US EPA/SNAP approved, surrounds the storage compartment.
What alarms and monitoring features are included?
The freezer includes hi/low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms. Alarm relay dry contacts allow connection to remote or building monitoring systems.
Is the freezer certified and lockable?
Yes. The UCF001 is UL listed, C-UL, and Energy Star certified, and ships with a solid, keyed lockable door for sample security.
