Undercounter & Countertop Freezer -40°C, 3.2 cu.ft., Manual Defrost Overview

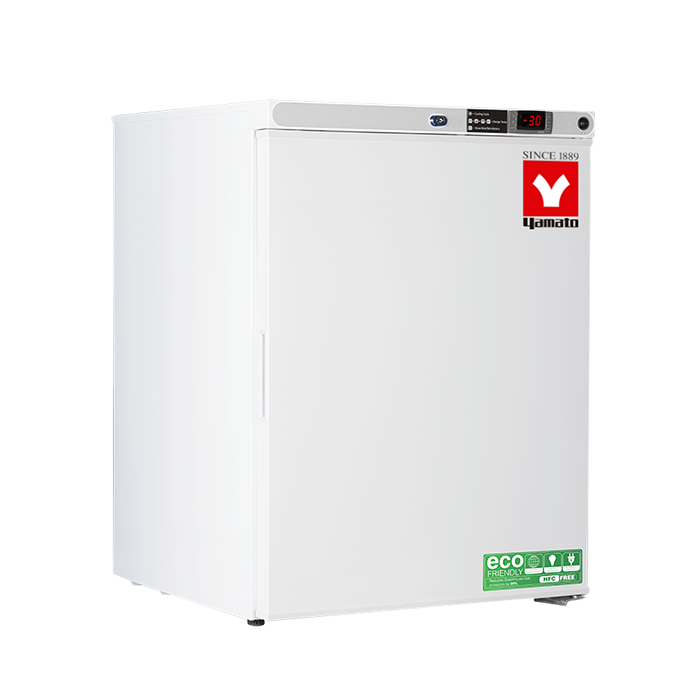

The Undercounter & Countertop Freezer -40°C, 3.2 cu.ft., Manual Defrost (model UCF101B) from Yamato Scientific is an upright laboratory freezer built for benchtop and undercounter installation. Reaching a control range of -20°C to -40°C, it serves pharmacy and research storage where deep-freeze temperatures matter. LabSupplies.com stocks this unit as an authorized Yamato Scientific dealer.
Construction pairs a painted steel exterior with a painted aluminum interior, while high-density urethane foam insulation (US EPA/SNAP approved) holds thermal stability. Two adjustable shelves plus a base shelf organize samples, and a 1" access port accepts external probes. Direct cooling and an R290 hermetic compressor drive the refrigeration system.
Power comes from a 115V, 60 Hz single-phase supply through a NEMA 5-15 plug. Exterior dimensions of 24" × 24" × 33" and a 150 lb shipping weight fit standard lab casework, aided by two front leveling legs and two rear casters. Built in China, the unit carries UL listing and Energy Star recognition.
Key Features
- Temperature Range: -20°C to -40°C controlled through a digital display.
- Alarm System: Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms, plus dry-contact alarm relay.
- Data Logging: Adjustable-interval logging, downloadable via USB as PDF.
- Refrigeration: R290 refrigerant with hermetic compressor and direct cooling.
- Storage: Two adjustable shelves plus a base shelf, with a 1" access port for external probes.
- Security: Solid, keyed lockable door for controlled access.
How to Choose the Right Undercounter Fridge/Freezer
Matching a freezer to a lab or pharmacy starts with the storage temperature your samples demand, then balances footprint, power, and monitoring against your site constraints.
- Temperature Range: Confirm the unit reaches the deep-freeze setpoint your protocol requires; this model controls down to -40°C.
- Capacity: Size the interior to your inventory; 3.2 cu.ft. with adjustable shelving suits compact benchtop and undercounter loads.
- Control Type: Digital display control and adjustable shelving simplify daily operation and organization.
- Voltage: Verify circuit compatibility; this freezer runs on a standard 115V, 60 Hz NEMA 5-15 outlet.
- Footprint: Check exterior dimensions and leveling against your casework; rear casters and front leveling legs aid placement.
- Safety & Monitoring: Prioritize multi-condition alarms, a lockable door, and data logging when storing regulated or high-value samples.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 3.2 cu.ft. |
| Voltage | 115V |
| Defrost | Manual |
| Temperature Range | -20°C to -40°C / -4°F to -40°F |
| Temperature Control | Digital display |
| Alarm System | Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, USB-failure; alarm relay dry contacts |
| Data Logging | Yes, adjustable intervals; downloadable via USB (PDF) |
| Refrigerant | R290 |
| Air Circulation | Direct cooling |
| Interior Construction | Painted aluminum |
| Shelves | 2 adjustable shelves plus base shelf |
| Access Port | 1" access port |
| Leveling / Casters | 2 front leveling legs, 2 rear casters |
| Interior Dimensions | 20" × 19.5" × 24.25" (50 × 49 × 61 cm) |
| Exterior Dimensions | 24" × 24" × 33" (61 × 61 × 83 cm) |
| Certification | UL listed |
| Door Type | Solid, lockable (keyed) |
| Compressor | Hermetic compressor |
| Insulation | Urethane foam (US EPA / SNAP approved) |
| Exterior Construction | Painted steel |
| Power Supply | 115V, 60 Hz, 1-phase; NEMA 5-15 plug |
| Optional Accessories | Chart recorder; cold safety gloves |
| Country of Origin | China |
| Material | White cabinet and door High density urethane foam cabinet and door insulation |
| GTIN (Barcode) | 797059930395 |
| Shipping Weight | 150 lbs |
| Dimensions (L × W × H) | 32 × 32 × 46 in |
| Component Size | 3.2 CF |
| Other Certification | UL listed, Energy Star,CDC and VFC compliant |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| UCF-101B | EA | EA |
Documentation
More in This Series
- Undercounter & Countertop Freezer -25°C, 3.2 cu.ft., Manual Defrost
- Undercounter & Countertop Freezer -25°C, 1.7 cu.ft., Manual Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 4.6 cu.ft., Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., With Glass Door Cycle Defrost
- Undercounter & Countertop Refrigerator 2°C To 8°C, 2.64 cu.ft., Cycle Defrost
View all Undercounter Refrigerators & Freezers →
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every UCF101B ships as a genuine unit backed by manufacturer warranty. Order directly and our lab-equipment specialists stand ready for spec questions before and after purchase.
- Authorized dealer: Genuine Yamato Scientific freezer with full manufacturer warranty.
- In stock: Ready to order, no waiting on backorder.
- Ships from USA inventory: Domestic fulfillment for faster delivery.
- Specialist support: Dedicated lab-equipment team for technical and spec questions.
Frequently Asked Questions
What temperature range does the UCF101B reach?
The UCF101B controls from -20°C to -40°C (-4°F to -40°F), making it suitable for deep-freeze pharmacy and laboratory storage. Temperature is managed through a digital display.
What is the storage capacity and footprint?
Storage capacity is 3.2 cu.ft. Interior dimensions are 20" × 19.5" × 24.25" (50 × 49 × 61 cm), and exterior dimensions are 24" × 24" × 33" (61 × 61 × 83 cm), fitting standard undercounter and benchtop spaces.
Does the UCF101B run on a standard 115V circuit?
Yes. The unit operates on a 115V, 60 Hz single-phase supply with a NEMA 5-15 plug, compatible with standard North American lab outlets.
Is the freezer manual or automatic defrost?
The UCF101B uses manual defrost. It relies on direct cooling with an R290 refrigerant and hermetic compressor.
What materials and insulation does the cabinet use?
The exterior is painted steel and the interior is painted aluminum. High-density urethane foam insulation, US EPA/SNAP approved, surrounds the cabinet and door.
What monitoring and safety features are included?
The freezer includes Hi/Low temperature, door-ajar, power-failure, low-battery, sensor-failure, and USB-failure alarms, plus dry-contact alarm relay, adjustable-interval USB data logging, and a keyed lockable door.
