In stock (US) — ships in 2–5 business daysSM-501 · Yamato Scientific America US stock report
Factory order — approx. 20 weeks lead timeSM-511 · Yamato Scientific America US stock report
Why order the SM501 from LabSupplies.com

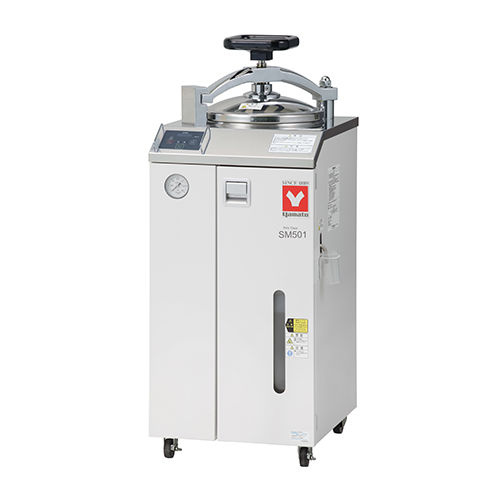

Sterilizer With Dryer 47L Overview
This SM501 runs on 115V; the matching SM511 covers 220V installations. Yamato lists external dimensions (W × D × H) of 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in); packed for shipping it measures 36 × 36 × 54 in at 271 lb.
Key Features
- Sterilization plus drying: high-pressure steam sterilization followed by an automatic drying step delivers samples ready to use right after the cycle.
- Interactive key control: an interactive key input system runs every stage from sterilization through drying without manual intervention.
- Adjustable drying: drying temperature sets to suit sample material and quantity, with a timer range of 1 to 999 hours.
- Front-panel serviceability: drain bottle water level reads on a front indicator, and the drain valve mounts up front for quick access.
- Self-diagnostics: built-in self-diagnostic functions make operation safer and speed error recovery.
- Safe exhaust: a condensation collector neutralizes high-temperature exhaust steam before release.
How to Choose the Right Sterilizer / Autoclave
Matching an autoclave to your workload means weighing chamber size, process capability, and site power against the loads you run daily. Use these axes to confirm fit before issuing a PO.
- Temperature range: a 105 to 128°C sterilizing range and 150 to 180°C drying range determine which media, glassware, and instruments you can process.
- Drying capability: integrated drying returns samples ready to use immediately, which matters when turnaround drives throughput.
- Voltage: confirm 115V versus 220V against your bench circuit before ordering to avoid an installation mismatch.
- Footprint and weight: Yamato lists external dimensions (W × D × H) of 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in); packed for shipping it measures 36 × 36 × 54 in at 271 lb.
- Safety features: self-diagnostics and a condensation collector for exhaust steam support safer daily operation.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 47 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer with dryer |
| Drying Temperature Range | 150 to 180°C |
| Temperature Control System | PID control by microprocessor |
| Interior Material | Stainless steel |
| Safety Devices | Self-diagnostic functions (sensor error, SSR short-circuit, heater disconnection, faulty main relay, dry-run detection); safety valve; electric leakage breaker; drain-bottle set-fail switch |
| Operating Temperature Range | 105 to 128°C (sterilization) *1 |
| Max. Operating Pressure | 0.2 MPa |
| Heater | Sterilization 2.0 kW; drying 1.5 kW |
| Internal Capacity | 47 L |
| Included Accessories | 2 stainless steel mesh baskets; drain board; drain bottle; condensation container |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059927296 |
| Shipping Weight | 271 lbs |
| External Dimensions (W × D × H) | 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in) |
| Shipping Dimensions (L × W × H) | 36 × 36 × 54 in |
| Component Size | 47 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
| Power Source (SM501) | AC115V 15A (no plug, round terminal) |
| Power Source (SM511) | AC220V 9.5A (no plug, round terminal) |
Compare SM Series Models
| Model | Capacity | Temperature range | Exterior | Shipping weight |
|---|---|---|---|---|
| SM201 | 20 L | 105 to 123°C (sterilization) | 410 × 470 × 957 mm (16.1 × 18.5 × 37.7 in) | 216 lbs |
| SM301 | 32 L | 105 to 128°C (sterilization) | 440 × 530 × 968 mm (17.3 × 20.9 × 38.1 in) | 250 lbs |
| SM501 (this model) | 47 L | 105 to 128°C (sterilization) | 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in) | 271 lbs |
| SM520 | 50 L | — | 520 × 660 × 881 mm (20.5 × 26.0 × 34.7 in) | 342 lbs |
| SM820 | 80 L | — | 520 × 660 × 1161 mm (20.5 × 26.0 × 45.7 in) | 405 lbs |
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| SM-501 | 115V | 797059927296 |
| SM-511 | 220V | 797059927302 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | SM-501, SM-511 |
| UNSPSC | 42281508 — Autoclaves or steam sterilizers |
| HTS code | 8419.20.0020 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato SM Series Steam Sterilizer with Dryer brochure (PDF, 1.2 MB)
- Yamato Scientific America product page
Parts & Accessories for the SM501
Genuine Yamato SM-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato SN300C Sterilizer Without Dryer 32L
- Yamato SN500C Sterilizer Without Dryer 47L
- Yamato SN510C Sterilizer Without Dryer 47L 220V
- Yamato SK801 Forced Convection Dry Sterilizer 300L
- Yamato SM301 Sterilizer With Dryer 32L
- Yamato SQ500C Large Capacity Sterilizer Without Dryer 50L
View all Laboratory Autoclaves & Sterilizers →
Frequently Asked Questions
What is the sterilizing temperature range of the SM501?
The SM501 sterilizes from 105 to 128°C using high-pressure steam. Its separate drying step operates from 150 to 180°C, with drying temperature adjustable to the sample material and quantity.
What is the chamber capacity and overall footprint?
The chamber holds 47 L. Yamato lists external dimensions (W × D × H) of 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in); packed for shipping it measures 36 × 36 × 54 in at 271 lb.
Does the unit dry samples after sterilization?
Yes. The SM501 runs an automatic drying step after high-pressure steam sterilization, leaving samples ready to use immediately. Drying runs 150 to 180°C with a timer range of 1 to 999 hours.
What is the UNSPSC code for the Yamato SM501?
The Yamato SM501 is classified under UNSPSC 42281508 (autoclaves or steam sterilizers).
Is there a spec sheet or brochure for the Yamato SM501?
Yes. The Yamato SM Series Steam Sterilizer with Dryer brochure (1.2 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato SM501 compare with the other SM Series models?
Yamato builds this SM Series line in 5 sizes: 20 L (SM201), 32 L (SM301), 47 L (SM501), 50 L (SM520) and 80 L (SM820). The comparison table on this page lists capacity, temperature range, exterior and shipping weight side by side.
What safety devices does the Yamato SM501 have?
Yamato lists these safety devices for the SM501: self-diagnostic functions (sensor error, SSR short-circuit, heater disconnection, faulty main relay, dry-run detection); safety valve; electric leakage breaker; drain-bottle set-fail switch.
