Why order the SM301 from LabSupplies.com
Sterilizer With Dryer 32L Overview

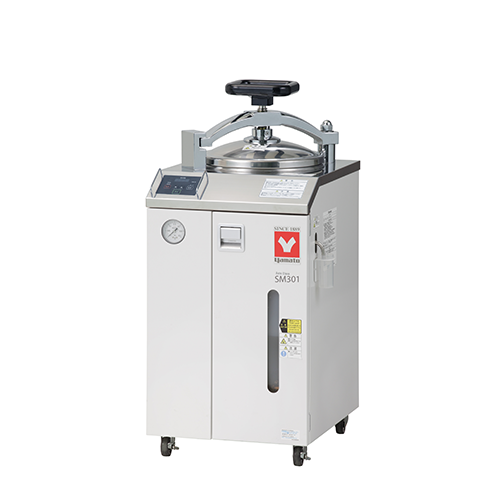

The Sterilizer With Dryer 32L (model SM301) from Yamato Scientific is a fully automatic steam autoclave that carries samples from high-pressure sterilization through drying in one cycle. Sterilizing temperature spans 105 to 128°C and drying spans 150 to 180°C across a 32 L chamber. LabSupplies.com supplies this unit as an authorized dealer.
Key Features
- Automatic sterilize-to-dry cycle: high-pressure steam sterilization and a dedicated drying step run start to finish without operator intervention.
- Interactive key-input control: guided setup sequences the full cycle and lets drying temperature be set to sample material and quantity.
- Adjustable timer range: programmable from 1 to 999 hours for flexible cycle scheduling.
- Front-panel drain management: a level indicator confirms drain bottle water at a glance and a front-mounted drain valve gives easy access.
- Built-in safety systems: self-diagnostic functions speed error recovery and a condensation collector neutralizes high-temperature exhaust steam.
How to Choose the Right Sterilizer / Autoclave
Matching an autoclave to a lab means weighing chamber size, achievable temperatures, control style, and site power. Use the criteria below to confirm fit.
- Capacity: chamber volume determines how many baskets or flasks process per cycle; size it to peak daily throughput rather than average load.
- Temperature range: verify the sterilizing band covers your protocol and that a drying stage is included if loads must be ready immediately.
- Voltage: confirm whether your facility supplies 115V or 220V so the ordered model matches the available circuit.
- Footprint and weight: check bench or floor clearance and load-bearing capacity against the unit dimensions and shipping weight.
- Safety features: self-diagnostics and exhaust-steam neutralization protect operators and ease maintenance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 32 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer with dryer |
| Drying Temperature Range | 150 to 180°C |
| Temperature Control System | PID control by microprocessor |
| Interior Material | Stainless steel |
| Safety Devices | Self-diagnostic functions (sensor error, SSR short-circuit, heater disconnection, faulty main relay, dry-run detection); safety valve; electric leakage breaker; drain-bottle set-fail switch |
| Operating Temperature Range | 105 to 128°C (sterilization) *1 |
| Max. Operating Pressure | 0.2 MPa |
| Heater | Sterilization 1.7 kW; drying 1.0 kW |
| Internal Capacity | 32 L |
| Included Accessories | 2 stainless steel mesh baskets; drain board; drain bottle; condensation container |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059927272 |
| Shipping Weight | 250 lbs |
| External Dimensions (W × D × H) | 440 × 530 × 968 mm (17.3 × 20.9 × 38.1 in) |
| Shipping Dimensions (L × W × H) | 36 × 36 × 49 in |
| Component Size | 32 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
| Power Source (SM301) | AC115V 15A (no plug, round terminal) |
| Power Source (SM311) | AC220V 9.5A (no plug, round terminal) |
Compare SM Series Models
| Model | Capacity | Temperature range | Exterior | Shipping weight |
|---|---|---|---|---|
| SM201 | 20 L | 105 to 123°C (sterilization) | 410 × 470 × 957 mm (16.1 × 18.5 × 37.7 in) | 216 lbs |
| SM301 (this model) | 32 L | 105 to 128°C (sterilization) | 440 × 530 × 968 mm (17.3 × 20.9 × 38.1 in) | 250 lbs |
| SM501 | 47 L | 105 to 128°C (sterilization) | 440 × 530 × 1088 mm (17.3 × 20.9 × 42.8 in) | 271 lbs |
| SM520 | 50 L | — | 520 × 660 × 881 mm (20.5 × 26.0 × 34.7 in) | 342 lbs |
| SM820 | 80 L | — | 520 × 660 × 1161 mm (20.5 × 26.0 × 45.7 in) | 405 lbs |
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| SM-301 | 115V | 797059927272 |
| SM-311 | 220V | 797059927289 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | SM-301, SM-311 |
| UNSPSC | 42281508 — Autoclaves or steam sterilizers |
| HTS code | 8419.20.0020 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato SM Series Steam Sterilizer with Dryer brochure (PDF, 1.2 MB)
- Yamato Scientific America product page
Parts & Accessories for the SM301
Genuine Yamato SM-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato SK801 Forced Convection Dry Sterilizer 300L
- Yamato SM201 Sterilizer With Dryer 20L
- Yamato SM501 Sterilizer With Dryer 47L
- Yamato SN300C Sterilizer Without Dryer 32L
- Yamato SN500C Sterilizer Without Dryer 47L
- Yamato SN510C Sterilizer Without Dryer 47L 220V
View all Laboratory Autoclaves & Sterilizers →
Frequently Asked Questions
What is the sterilizing temperature range of the SM301?
The SM301 sterilizes across a range of 105 to 128°C. A separate drying stage operates from 150 to 180°C, and the drying temperature can be set according to sample material and quantity.
What is the chamber capacity and unit footprint?
The chamber holds 32 L. Yamato lists external dimensions (W × D × H) of 440 × 530 × 968 mm (17.3 × 20.9 × 38.1 in); packed for shipping it measures 36 × 36 × 49 in at 250 lb.
Does this autoclave dry samples after sterilization?
Yes. The unit performs high-pressure steam sterilization followed by a dedicated drying step in one automatic cycle, with drying from 150 to 180°C so loads are ready to use right after the run.
How long can the cycle timer be set?
The programmable timer ranges from 1 to 999 hours. An interactive key-input system sequences the full cycle, and self-diagnostic functions speed error recovery.
What is the UNSPSC code for the Yamato SM301?
The Yamato SM301 is classified under UNSPSC 42281508 (autoclaves or steam sterilizers).
Where is the Yamato SM301 manufactured?
Yamato Scientific lists Japan as the country of origin for the SM301.
Is there a spec sheet or brochure for the Yamato SM301?
Yes. The Yamato SM Series Steam Sterilizer with Dryer brochure (1.2 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato SM301 compare with the other SM Series models?
Yamato builds this SM Series line in 5 sizes: 20 L (SM201), 32 L (SM301), 47 L (SM501), 50 L (SM520) and 80 L (SM820). The comparison table on this page lists capacity, temperature range, exterior and shipping weight side by side.
What safety devices does the Yamato SM301 have?
Yamato lists these safety devices for the SM301: self-diagnostic functions (sensor error, SSR short-circuit, heater disconnection, faulty main relay, dry-run detection); safety valve; electric leakage breaker; drain-bottle set-fail switch.
