Sterilizer Without Dryer 32L Overview

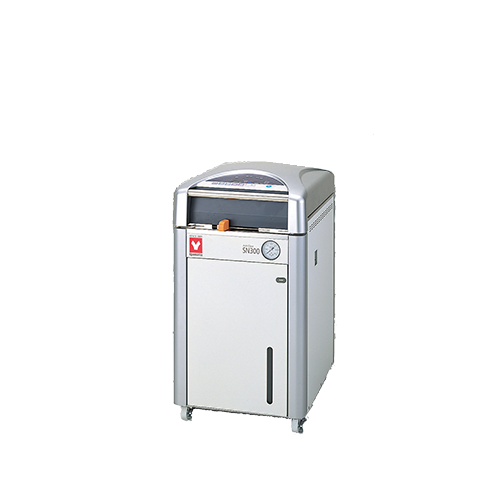

The Sterilizer Without Dryer 32L (model SN300C) is a top-loading steam sterilizer from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This autoclave holds a 32 L chamber and reaches a maximum sterilizing temperature of 135°C across a 45 to 135°C operating range. Protein modification, culture-medium work, and routine sterilization all fall within that span.
Construction pairs a SUS304 stainless steel chamber and cover with a bonderizing steel-plate exterior baked in melamine resin, finished with ABS resin trim. Stainless wetted surfaces stand up to repeated steam cycles and condensate. Top loading keeps sample handling simple and reduces awkward bending during loading and unloading.
Two voltage builds cover most facility power: SN300C runs on 100-120V and SN310C runs on 200-240V. The unit weighs 249 lbs, measures 29 × 23 × 43 in, and rolls on casters for repositioning. Yamato Scientific manufacturing is certified to ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.
Key Features
- Temperature range: 45 to 135°C operating, with a 135°C maximum suitable for protein modification.
- Multiple cycle modes: ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums.
- Custom programs: save settings for repeated runs to standardize routine cycles.
- Timer start and pre-heating: schedule cycles and reduce idle warm-up for efficient use of time.
- Cooling fan: shortens cool-down time between loads.
- Mobile and top-loading: mounted on wheels with easy top access to the chamber.
How to Choose the Right Sterilizer / Autoclave
Selecting a steam sterilizer comes down to matching chamber size, temperature capability, and control features to your daily workload and facility power. Use these axes to confirm fit before issuing a PO.
- Capacity: chamber volume must hold your typical batch of glassware, media bottles, or instruments. This model offers a 32 L chamber.
- Temperature range: verify the unit reaches the temperatures your protocols require; a 45 to 135°C range covers media, liquids, and protein modification.
- Control type: programmable presets and timer start reduce operator error on repeated cycles.
- Voltage: match the unit to available circuits — 100-120V (SN300C) or 200-240V (SN310C).
- Footprint and mobility: confirm bench or floor space for a 29 × 23 × 43 in cabinet; casters allow repositioning.
- Quality certifications: ISO-certified manufacturing supports audit and compliance documentation.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 32 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 45 to 135°C *1 |
| Max. Operating Pressure | 0.255 MPa |
| Temperature Control System | PID control by microprocessor |
| Lid | Manual upward-opening with safety interlock |
| Operation Modes | Instrument, liquid, sterilize-and-keep-warm, melt-and-keep-warm, and custom-programmed courses |
| Safety Devices | Sensor-failure detection; SSR short-circuit; broken-heater detection; idle-heating prevention; drain-bottle absence alarm; lid-lock failure detection; pressure relief valve (0.255 MPa) |
| Cooling | Axial fan motor with forced cooling |
| Internal Capacity | 32 L |
| Internal Dimensions | ø300 × D445 mm |
| Heater | 800 W × 2 |
| Material | Bonderizing steel plate baked with melamine resin coating, ABS resin (exterior) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927128 |
| Shipping Weight | 249 lbs |
| Dimensions (L × W × H) | 29 × 23 × 43 in |
| Component Size | 32 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SN-300C | 115V | EA |
| SN-310C | 220V | EA |
Documentation
More in This Series
- Compact Sterilizer 18L
- Compact Sterilizer 24L
- Compact Sterilizer 30L
- Sterilizer Without Dryer 47L
- Sterilizer Without Dryer 47L 200
- Large Capacity Sterilizer Without Dryer 50L
- Large Capacity Sterilizer Without Dryer 80L
- Large Capacity Sterilizer Without Dryer 110L
- Sterilizer With Dryer 20L
- Sterilizer With Dryer 32L
- Sterilizer With Dryer 47L
- Large Capacity Sterilizer With Dryer 50L
- Large Capacity Sterilizer With Dryer 80L
- Natural Convection Dry Sterilizer 99L
- Natural Convection Dry Sterilizer 162L
- Forced Convection Dry Sterilizer 300L
Why Buy From LabSupplies.com
LabSupplies.com ships the SN300C and SN310C as an authorized Yamato Scientific dealer, so every unit is genuine and backed by manufacturer warranty. Order directly online and our lab-equipment specialists can answer spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine units with full manufacturer warranty.
- In stock: ready to ship, no waiting on availability.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Specialist support: dedicated lab-equipment team for voltage and spec questions.
Frequently Asked Questions
What is the temperature range of the SN300C sterilizer?
The SN300C operates from 45 to 135°C, with a maximum sterilizing temperature of 135°C. That upper limit suits protein modification in addition to ordinary sterilization, culture-medium and liquid cycles, and melting of culture mediums.
What is the chamber capacity and overall footprint?
The chamber holds 32 L. The cabinet measures 29 × 23 × 43 in (L × W × H) and weighs 249 lbs, mounted on wheels so it can be repositioned within the lab.
What is the difference between the SN300C and SN310C?
Voltage is the only difference. The SN300C runs on 100-120V and the SN310C runs on 200-240V. Capacity, temperature range, materials, and features are identical, so choose the model that matches your facility power.
What materials are used in the chamber and exterior?
The chamber and cover are SUS304 stainless steel. The exterior is a bonderizing steel plate baked with melamine resin coating, with ABS resin trim, giving durable wetted surfaces that withstand repeated steam cycles.
Can cycle settings be saved for repeated use?
Yes. Custom programs can be saved and recalled for repeated runs. Timer start and pre-heating features support scheduled cycles, and a cooling fan shortens cool-down time between loads.
Is the manufacturing quality certified?
Yes. Yamato Scientific manufacturing is certified to ISO 9001:2015 (quality), ISO 14001:2015 (environmental), and ISO 45001:2018 (occupational health and safety), with documentation available to support audits and procurement review.
