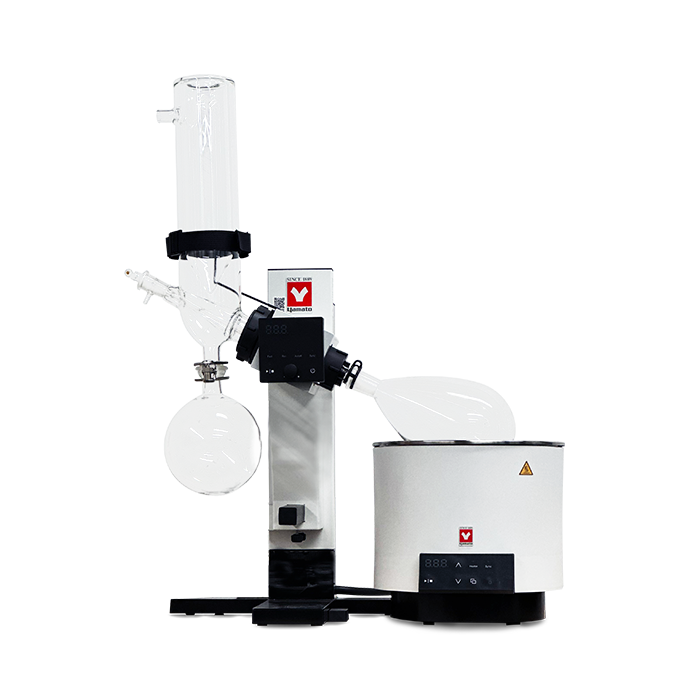

Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C Overview
The RE212A Rotary Evaporator with BM312A Water Bath and Glassware Set C is a complete distillation system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This rotary evaporator pairs a DC brushless drive with a 5 L heated water bath spanning RT +10°C to 90°C, delivering evaporation rates up to 23 ml/min across a 5–315 rpm range.
Glassware Set C uses a cold-finger vertical condenser matched to volatile, low-boiling-point solvents. Double corrugated tube condenser geometry provides 0.143 m² of cooling surface, while a standard condenser insulation kit suppresses surface condensation. A manual spring-loaded jack lifts the assembly up to 200 mm with stepless, one-touch locking.
Power input is 200–230V single-phase, 50/60 Hz, 1 A, supplied without a plug via round terminals. Exterior panels use chromium-free electrogalvanized steel with a baked-on finish plus anodized aluminum and glass-fiber-reinforced PBT resin. Shipping weight is 90 lbs with a 36 × 36 × 27 in footprint; country of origin is CH.
Key Features
- Set inversion function: glassware and bath mount on either the left or right side to suit the operator's dominant hand and bench layout.
- Rotation control: 5–315 rpm with forward, reverse, and auto-inversion modes, shown on a digital display with an 8-level brightness knob.
- Manual lift jack: spring-loaded slide mechanism raises the flask up to 200 mm with stepless, one-touch lock height adjustment.
- Glassware Set C: cold-finger vertical condenser with 0.143 m² double corrugated cooling surface, plus a standard condenser insulation kit.
- Flask compatibility: accepts 50–2000 ml evaporation flasks and 100–2000 ml receiving flasks, with an optional reducer for smaller flasks.
- Layered protection: motor overload, over/low-voltage, speed-sensor-error, and AC adapter short-circuit safeguards across the system.
How to Choose the Right Rotary Evaporator
Solvent volatility, throughput, and site power determine which rotary evaporator fits a given workflow. Match the bath, condenser, and electrical spec to your samples .
- Condenser type: a cold-finger vertical condenser, as in Glassware Set C, targets volatile and low-boiling-point solvents that escape standard coil designs.
- Bath capacity and temperature: the BM312A holds roughly 5 L and heats from RT +10°C to 90°C at ±1.0°C, sizing flasks and recovery rate accordingly.
- Rotation and evaporation rate: a 5–315 rpm range and up to 23 ml/min throughput govern how quickly batches concentrate.
- Voltage and site power: this system requires 200–230V single-phase, 50/60 Hz input wired to round terminals, so confirm available circuits.
- Seal chemistry: FKM is standard, while PTFE is recommended for ketone or ether solvents that attack standard seals.
- Footprint and inversion: the set-inversion feature lets you orient glassware and bath to fit bench space and operator handedness.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | RE-212 main unit + Glassware C + water bath |
| Glassware Set | Set C — cold-finger vertical condenser, for volatile / low-boiling-point solvents |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Water bath |
| Bath Model | BM-312-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932511 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-212-CW2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com ships this complete RE212A system directly from USA inventory, so your lab receives a genuine Yamato Scientific unit ready to install. Procurement teams work with specialists who answer spec questions before the order ships.
- Authorized Yamato Scientific dealer: genuine equipment backed by the full manufacturer warranty.
- In stock: the system is ready to ship, no backorder wait.
- Ships from USA inventory: domestic dispatch shortens lead time.
- Lab-equipment specialists: direct support for compatibility, glassware, and electrical questions.
Frequently Asked Questions
What temperature range does the BM312A water bath cover?
The BM312A water bath heats from RT +10°C to 90°C with ±1.0°C accuracy. It holds approximately 5 L within a Φ240 × H119 mm vessel and includes automatic overheat prevention and an upper-limit error safeguard.
What flask sizes are compatible with the RE212A?
The RE212A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer adapts the unit for smaller flasks below the standard range.
What are the voltage and power requirements?
This system runs on 200–230V single-phase, 50/60 Hz power drawing 1 A. Connection is made through round terminals with no plug attached, and a 2 A service outlet is provided on the bath.
Which solvents suit Glassware Set C?
Glassware Set C is built for volatile and low-boiling-point solvents using a cold-finger vertical condenser. The FKM vacuum seal is standard, while PTFE seals are recommended for ketone or ether solvents.
What rotation speed and evaporation rate does the unit deliver?
The DC brushless motor rotates from 5 to 315 rpm with forward, reverse, and auto-inversion modes. Evaporation capacity reaches up to 23 ml/min, with a digital display and control knob managing speed.
What are the shipping dimensions and weight?
The system ships at 90 lbs within a 36 × 36 × 27 in footprint. It arrives as a three-component kit comprising the RE212 main unit, Glassware Set C, and the BM312A water bath.
