Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B Overview

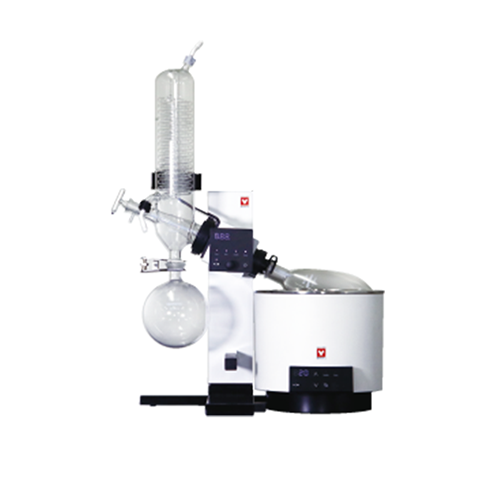

The RE202A Rotary Evaporator with BM302A Water Bath (5L) and Glassware Set B from Yamato Scientific is a complete distillation system supplied by LabSupplies.com, authorized dealer. This rotary evaporator pairs a digital main unit with a 5 L water bath rated from RT +10°C to 90°C, plus a vertical-condenser glassware set for routine solvent recovery.
Set B uses a space-saving vertical condenser, letting three units fit inside a standard fume hood. A double corrugated-tube condenser delivers 0.143 m² of cooling surface, while the DC brushless simple-servo motor drives rotation from 5 to 315 rpm. Evaporation reaches up to 23 ml/min, and an auto-inversion mode runs forward or reverse cycling.
Power is 100–115V, 50/60 Hz, 1 A with plug, and the unit ships at 90 lbs in a 36 × 36 × 27 in carton. Operating ambient temperature spans 5–35°C. Country of origin is Switzerland (CH). Exterior surfaces use chromium-free electrogalvanized steel with a baked-on finish for durable bench service.
Key Features
- Set inversion function: glassware and bath mount on either side, left or right, to suit a technician's dominant hand and the installation location.
- Manual spring-loaded jack: stepless height adjustment to a 200 mm maximum lift with one-touch lock for fast flask raising and lowering.
- Digital speed control: rotation from 5 to 315 rpm shown on a display with control knob and eight brightness levels.
- Three rotation modes: forward, reverse, and auto-inversion cover varied distillation and bumping-prevention needs.
- Condenser insulation kit: supplied as standard to suppress condensation forming on the condenser surface.
- Layered safety protection: motor overload, over/low-voltage, speed-sensor-error guards, plus AC adapter short-circuit, overcurrent, and overvoltage protection.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator means matching bath temperature, flask capacity, and site power to your solvent workload. Use the criteria below to confirm this RE202A system fits your process .
- Bath temperature range: the BM302A water bath covers RT +10°C to 90°C with ±1.0°C accuracy, suitable for water-compatible solvent recovery; high-boiling solvents may need an oil bath.
- Flask capacity: the system accepts evaporation flasks of 50–2000 ml and receiving flasks of 100–2000 ml, so confirm your typical batch volume falls in range.
- Control type: a digital speed display with control knob suits labs needing repeatable, readable rotation settings from 5 to 315 rpm.
- Voltage and site power: this unit is 100–115V, 50/60 Hz; verify your bench circuit before installation.
- Footprint: Glassware Set B's vertical condenser is space-saving, letting three units share a standard fume hood.
- Solvent chemistry: the FKM vacuum seal is standard, with a PTFE seal recommended for ketone or ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 115V |
| Type | Rotary evaporator complete system |
| Configuration | RE-202 main unit + Glassware B + water bath |
| Glassware Set | Set B — standard vertical condenser, space-saving (three fit in a standard fume hood) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Water bath |
| Bath Model | BM-302-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928019 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-202-BWA | SET | SET |
Documentation
More in This Series
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
Why Buy From LabSupplies.com
Order this Yamato Scientific rotary evaporator system directly from LabSupplies.com and receive a genuine, factory-warranted unit shipped from USA inventory. Our lab-equipment specialists answer spec questions before you commit to a purchase.
- Authorized Yamato Scientific dealer: every system is a genuine unit backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment staff help confirm configuration and compatibility.
Frequently Asked Questions
What is the temperature range of the BM302A water bath?
The BM302A water bath operates from RT +10°C to 90°C with ±1.0°C accuracy. It holds approximately 5 L (Φ240 × H119 mm) and includes automatic overheat prevention, a temperature upper-limit error guard, an overcurrent fuse, and a 2A service outlet.
What flask sizes are compatible with the RE202A?
The RE202A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer adapts the unit for smaller flasks below the standard range.
What voltage and power does this system require?
This system runs on 100–115V, 50/60 Hz at 1 A and ships with a plug. Confirm your bench circuit matches before installation.
What rotation speed and evaporation capacity does the unit deliver?
Rotation ranges from 5 to 315 rpm with evaporation capacity up to 23 ml/min. The DC brushless simple-servo motor supports forward, reverse, and auto-inversion modes selectable from a digital display.
What materials are used in the construction?
The exterior uses chromium-free electrogalvanized steel sheet with a baked-on finish, aluminum with a baked-on or anodized finish, and polybutylene terephthalate resin with fiberglass. The condenser is a double corrugated tube offering 0.143 m² of cooling surface.
What are the shipping weight and dimensions?
The system weighs 90 lbs and ships in a 36 × 36 × 27 in carton. Country of origin is Switzerland (CH), and the unit is air eligible.
