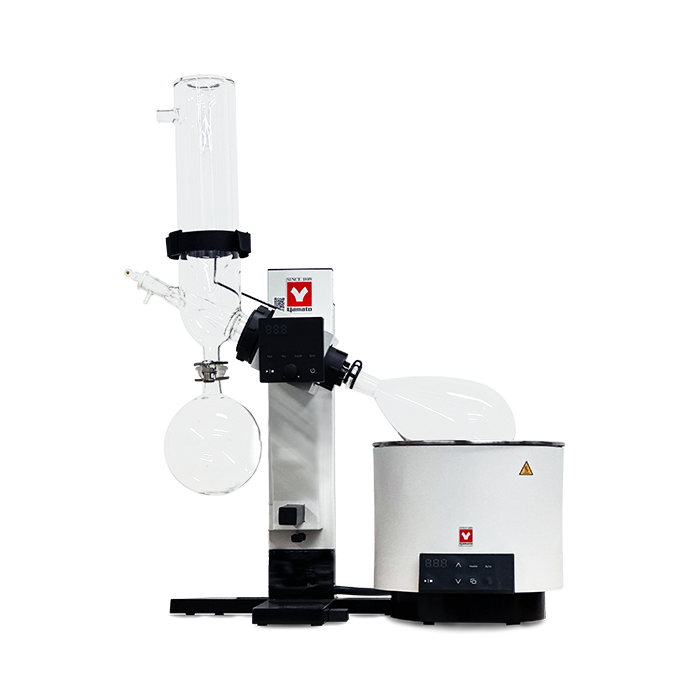

Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C Overview
The RE202CWA Rotary Evaporator System from Yamato Scientific is a complete distillation package pairing the RE202A main unit with a BM302A water bath and Glassware Set C. This 5 L system covers a rotation speed range of 5–315 rpm and an evaporation capacity up to 23 ml/min. LabSupplies.com supplies it as an authorized dealer.
Set C uses a cold-finger vertical condenser suited to volatile, low-boiling-point solvents. A double corrugated cooling tube delivers 0.143 m² of cooling surface, while the DC brushless simple-servo motor drives forward, reverse, and auto-inversion modes. Construction combines chromium-free electrogalvanized steel, anodized aluminum, and glass-fiber-reinforced PBT resin.
This configuration runs on 100–115V, 50/60 Hz at 1 A and ships in a 36 × 36 × 27 in footprint weighing roughly 90 lbs. Manufactured in Switzerland (CH), the system carries multiple protections including motor overload, over-/low-voltage, and bath overheat prevention. Plan ambient operating conditions between 5°C and 35°C.
Key Features
- Auto-inversion drive: DC brushless simple-servo motor supports forward, reverse, and automatic inversion across 5–315 rpm.
- Set inversion design: glassware and bath mount on either the left or right side to match handedness and bench layout.
- Manual spring-loaded jack: stepless flask lift to a 200 mm maximum height with one-touch locking.
- Glassware Set C: cold-finger vertical condenser engineered for volatile, low-boiling-point solvents.
- Condenser insulation kit: standard equipment that suppresses surface condensation on the condenser.
- BM302A water bath: RT +10°C to 90°C range with ±1.0°C accuracy, overheat prevention, and a 2A service outlet.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator means matching the system to your solvents, throughput, and site power. Use these axes to confirm the RE202CWA fits your workflow .
- Capacity: the 5 L bath and 50–2000 ml flask compatibility determine batch size; size the unit to your largest routine distillation.
- Temperature range: the BM302A water bath spans RT +10°C to 90°C, suited to aqueous and low-boiling solvent recovery rather than high-boiling oil-bath work.
- Glassware type: Set C with a cold-finger vertical condenser targets volatile, low-boiling-point solvents; verify your chemistry matches the condenser style.
- Voltage: this configuration is 100–115V, 50/60 Hz, 1 A, so confirm your bench circuit before ordering.
- Footprint: the 36 × 36 × 27 in shipping envelope and 90 lb weight require adequate bench depth and access.
- Seal compatibility: FKM is standard; PTFE seals are recommended for ketone and ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 115V |
| Type | Rotary evaporator complete system |
| Configuration | RE-202 main unit + Glassware C + water bath |
| Glassware Set | Set C — cold-finger vertical condenser, for volatile / low-boiling-point solvents |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Water bath |
| Bath Model | BM-302-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932504 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-202-CWA | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every RE202CWA system arrives as a genuine factory unit backed by the manufacturer warranty. Order directly and ship from USA inventory without a quote process.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated support for spec and configuration questions.
- Direct ordering: complete your purchase online without a callback requirement.
Frequently Asked Questions
What temperature range does the BM302A water bath cover?
The BM302A water bath operates from RT +10°C to 90°C with ±1.0°C accuracy. It includes automatic overheat prevention, a temperature upper-limit error function, and an overcurrent fuse.
What flask sizes are compatible with the RE202CWA?
Evaporation flasks from 50–2000 ml and receiving flasks from 100–2000 ml are compatible. An optional reducer accommodates smaller evaporation flasks.
What voltage and power does this system require?
The RE202CWA runs on 100–115V, 50/60 Hz at 1 A and ships with a plug. Confirm your bench circuit matches before ordering, as this is the 115V configuration.
What rotation speed and evaporation capacity does it deliver?
Rotation speed ranges from 5–315 rpm with evaporation capacity up to 23 ml/min. The DC brushless servo motor supports forward, reverse, and auto-inversion modes.
Which solvents is Glassware Set C designed for?
Set C is built for volatile, low-boiling-point solvents using a cold-finger vertical condenser. For ketone and ether solvents, PTFE seals are recommended over the standard FKM seal.
What are the shipping dimensions and weight?
The system ships in a 36 × 36 × 27 in envelope weighing approximately 90 lbs. It is air-eligible and ships as a complete kit from USA inventory.
