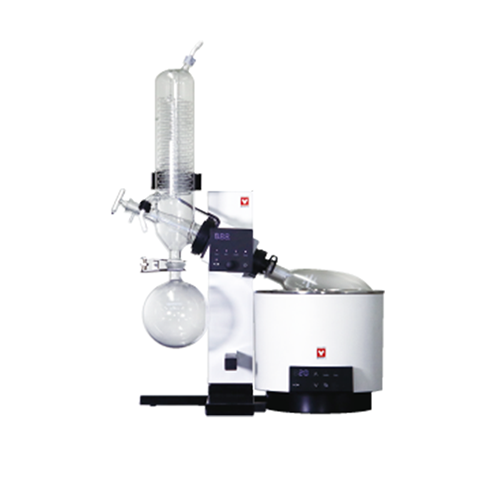

Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B Overview
The RE202A Rotary Evaporator with BO302A Oil Bath and Glassware Set B is a complete distillation system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This rotary evaporator pairs a 5 L oil bath rated from RT +10°C to 180°C with a vertical-condenser glassware set, delivering evaporation rates up to 23 ml/min.
Construction uses chromium-free electrogalvanized steel with a baked-on finish, anodized aluminum, and fiberglass-reinforced polybutylene terephthalate resin. A DC brushless simple-servo motor drives rotation across 5–315 rpm, while the double corrugated-tube condenser provides 0.143 m² of cooling surface. Manual spring-loaded jack lift reaches 200 mm with stepless, one-touch locking.
Operating on 100–115V, 50/60 Hz at 1 A, the system fits a 36 × 36 × 27 in footprint and weighs 90 lbs. Set inversion lets technicians mount glassware and bath on either side to suit handedness or bench layout. Country of origin is Switzerland.
Key Features
- Wide rotation range: DC brushless simple-servo motor drives 5–315 rpm with forward, reverse, and auto-inversion modes.
- Set inversion function: glassware and oil bath mount on the left or right side to match the operator's dominant hand and installation location.
- Manual slide jack: spring-loaded lift reaches a 200 mm maximum height with stepless adjustment and one-touch lock.
- Glassware Set B: standard vertical condenser is space-saving, allowing three units to fit in a standard fume hood.
- Condenser insulation kit: standard equipment suppresses condensation on the condenser surface.
- Layered safety: motor overload, over-/low-voltage, speed-sensor-error, and bath overheat protection with independent temperature upper-limit error and overcurrent fuse.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator means matching bath capacity, temperature reach, and control style to your solvents and throughput. Use the criteria below to confirm this system fits your workflow before ordering.
- Bath capacity and temperature: the 5 L oil bath spans RT +10°C to 180°C, suited to higher-boiling solvents that exceed water-bath limits.
- Flask compatibility: evaporation flasks from 50–2000 ml and receiving flasks from 100–2000 ml accommodate small samples through batch distillations.
- Control type: digital speed display with control knob and eight brightness levels offers repeatable, readable rotation settings.
- Voltage and site power: confirm a 100–115V, 50/60 Hz circuit, since this configuration ships as the 115V model.
- Seal chemistry: FKM seals are standard; specify PTFE for ketone or ether solvents.
- Footprint: the space-saving Set B condenser lets three units share a standard fume hood.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 115V |
| Type | Rotary evaporator complete system |
| Configuration | RE-202 main unit + Glassware B + oil bath |
| Glassware Set | Set B — standard vertical condenser, space-saving (three fit in a standard fume hood) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Oil bath |
| Bath Model | BO-302-A |
| Bath Temperature Range | RT +10°C to 180°C |
| Bath Temperature Accuracy | ±2.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928057 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-202-BOA | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com supplies the RE202A rotary evaporator system as an authorized Yamato Scientific dealer, so every order ships as a genuine factory unit backed by the manufacturer warranty.
- Authorized Yamato dealer: genuine equipment with full manufacturer warranty coverage.
- In stock: ready to order now, no waiting on backorder cycles.
- Ships from USA inventory: domestic dispatch shortens delivery timelines.
- Lab-equipment specialists: our team answers spec and configuration questions before you order.
Frequently Asked Questions
What is the temperature range of the BO302A oil bath?
The BO302A oil bath operates from RT +10°C to 180°C with ±2.0°C accuracy. This range supports higher-boiling solvents that exceed the limits of a water bath.
What flask sizes are compatible with the RE202A?
The RE202A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer adapts the unit for flasks smaller than 50 ml.
What voltage and power does this system require?
This configuration runs on 100–115V, 50/60 Hz at 1 A and includes a plug. The oil bath also provides a 2 A service outlet.
What is the rotation speed range and how is it controlled?
Rotation ranges from 5 to 315 rpm, driven by a DC brushless simple-servo motor. A digital display with control knob sets the speed across eight brightness levels, with forward, reverse, and auto-inversion modes.
What seal material is fitted and can it handle ketones or ethers?
FKM vacuum seals are standard. PTFE seals are recommended for ketone or ether solvents, so specify your solvent chemistry when ordering.
What are the dimensions and weight of the complete set?
The complete system measures 36 × 36 × 27 in and weighs 90 lbs. The space-saving Glassware Set B condenser lets three units fit in a standard fume hood.
