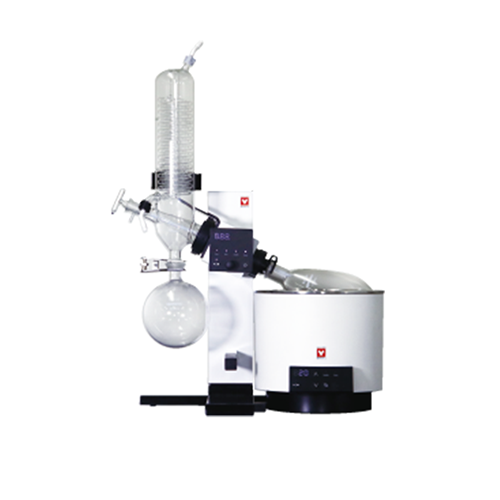

Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B Overview
The Yamato Scientific RE212A Rotary Evaporator system is a complete distillation setup pairing the RE212 main unit with Glassware Set B and a BM312A water bath rated from RT +10°C to 90°C. LabSupplies.com, an authorized dealer, supplies this 5 L 220V configuration for solvent recovery and concentration work.
Glassware Set B uses a vertical condenser with a 0.143 m² double corrugated cooling tube, keeping the footprint compact enough that three units fit one standard fume hood. A spring-loaded manual jack delivers stepless lift to 200 mm with one-touch lock. Set inversion lets you mount glassware and bath on either side.
Power draws 200–230V single-phase, 50/60 Hz at 1 A through a round terminal. Exterior panels use chromium-free electrogalvanized steel with a baked-on finish, plus anodized aluminum and glass-fiber-reinforced polybutylene terephthalate. The unit weighs 90 lbs, ships at 36 × 36 × 27 in, and is manufactured in Switzerland.
Key Features
- Rotation control: Digital speed display with control knob, 5–315 rpm, plus forward, reverse, and auto-inversion modes.
- Evaporation capacity: Up to 23 ml/min, with a double corrugated condenser providing 0.143 m² of cooling surface.
- Manual slide jack: Spring-loaded stepless lift to 200 mm maximum with one-touch lock for fast flask exchange.
- Set inversion design: Glassware and bath mount on either the left or right to suit handedness and bench layout.
- Flask compatibility: Accepts 50–2000 ml evaporation flasks and 100–2000 ml receiving flasks; FKM seal standard, PTFE recommended for ketones and ethers.
- Layered safety: Motor overload, over/low-voltage and speed-sensor-error protection, with bath overheat prevention and an overcurrent fuse.
How to Choose the Right Rotary Evaporator
Matching a rotary evaporator to your workflow means weighing throughput, solvent chemistry, and bench constraints . Use the criteria below to confirm this RE212A system fits your lab.
- Capacity: A 5 L bath and 50–2000 ml flask range suit routine concentration and recovery batches; size the receiving flask to your distillate volume.
- Temperature range: The BM312A bath covers RT +10°C to 90°C at ±1.0°C, which determines the solvents you can drive off efficiently.
- Control type: Digital speed display with auto-inversion supports reproducible, hands-free operation across repetitive runs.
- Voltage: This configuration is wired for 200–230V single-phase, 50/60 Hz; verify your circuit before installation.
- Footprint: The space-saving vertical condenser lets three units share one standard fume hood where bench area is limited.
- Seal chemistry: FKM ships standard; specify PTFE if your protocols use ketone or ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | RE-212 main unit + Glassware B + water bath |
| Glassware Set | Set B — standard vertical condenser, space-saving (three fit in a standard fume hood) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Water bath |
| Bath Model | BM-312-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928033 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-212-BW2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
Order the Yamato Scientific RE212A system directly from LabSupplies.com and receive a genuine, fully warrantied unit ready for installation.
- Authorized Yamato Scientific dealer: Every unit is factory-genuine and backed by the manufacturer warranty.
- In stock: Ready to ship from USA inventory.
- Ships from USA: Domestic fulfillment shortens lead time to your bench.
- Specialist support: Our lab-equipment team answers spec and configuration questions before you order.
Frequently Asked Questions
What is the temperature range of the BM312A water bath?
The BM312A water bath operates from RT +10°C up to 90°C with a temperature accuracy of ±1.0°C. It includes automatic and independent overheat prevention, a temperature upper-limit error function, and an overcurrent fuse.
What flask sizes does the RE212A accept?
The RE212A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer accommodates smaller evaporation flasks below the standard range.
What voltage and power supply does this system require?
This configuration runs on 200–230V single-phase, 50/60 Hz at 1 A. The connection uses a round terminal with no plug, so confirm your circuit and wiring before installation.
What rotation speed and evaporation capacity does it deliver?
Rotation speed is adjustable from 5 to 315 rpm with forward, reverse, and auto-inversion modes. Evaporation capacity reaches up to 23 ml/min using the double corrugated condenser with 0.143 m² of cooling surface.
Which vacuum seal material is fitted, and can it handle ethers?
An FKM vacuum seal is standard. For ketone or ether solvents, Yamato recommends switching to a PTFE seal to maintain chemical compatibility.
What are the system dimensions and weight for shipping and bench planning?
The system ships at 36 × 36 × 27 inches and weighs approximately 90 lbs. Its space-saving vertical condenser design lets three units fit within a single standard fume hood.
