Undercounter Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost Overview

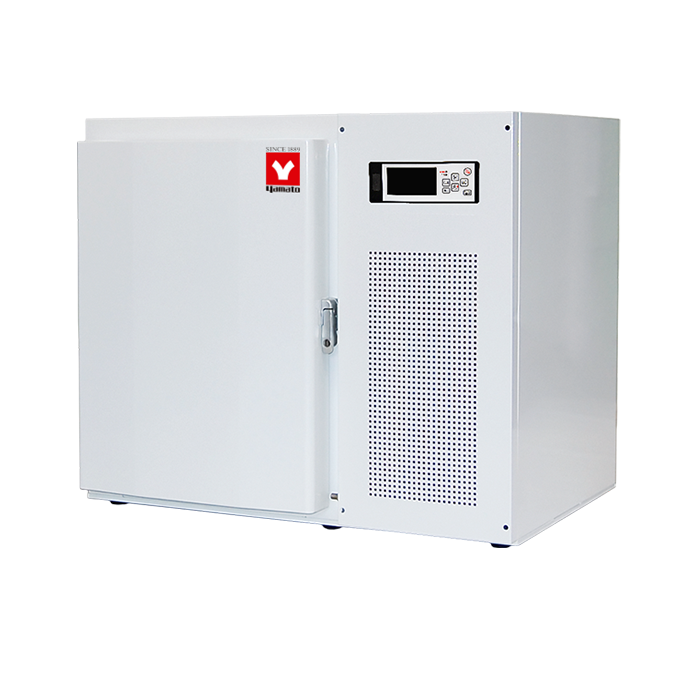

The Undercounter Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost (model ULF201UN) is a Yamato Scientific ultra-low laboratory freezer holding 94 L across a -40°C to -85°C range. LabSupplies.com supplies this unit as an authorized dealer. A digital controller with data logging, audible and visual alarms, remote alarm contacts, and battery back-up ships standard.
Stainless steel lines the interior cabinet, while electrogalvanized steel forms the exterior shell. CFC-free polyurethane insulation and a cold wall evaporator support stable cold retention. A single solid locking door secures samples, and four leveling legs steady the cabinet on uneven floors.
Power draws from a standard 115V, 60 Hz, single-phase circuit through a NEMA 5-15P plug. Exterior dimensions measure 37.5" × 28.5" × 32", and the freezer weighs 295 lbs. Built in the USA, the unit carries ETL and UL listings. Maintain 4" clearance on the sides and back.
Key Features
- Temperature range: reaches -40°C to -85°C for ultra-low sample storage.
- Digital controller: manages setpoints with onboard data logging and hi/low temperature alarms.
- Alarm system: battery-operated audible and visual alerts trigger on mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, a battery test switch, and a relay for remote alarm hook-up.
- Cabinet construction: stainless steel interior cabinet paired with an electrogalvanized steel exterior and CFC-free polyurethane insulation.
- Access and stability: single solid locking door with four leveling legs and a cold wall evaporator.
- Listings: ETL listed and UL listed.
How to Choose the Right Ultra-Low Freezer
Selecting an ultra-low freezer starts with matching the unit to your sample volume and the lowest temperature your protocols demand. Weigh footprint, power supply, and monitoring needs against your lab's existing infrastructure before purchasing.
- Capacity: confirm 3 cu.ft. (94 L) suits your sample throughput and rack layout.
- Temperature range: verify the -40°C to -85°C span covers your coldest storage protocols.
- Control type: digital control with data logging supports temperature audit trails and compliance records.
- Voltage: the 115V, 60 Hz, single-phase requirement must match an available NEMA 5-15 circuit.
- Footprint: the undercounter exterior of 37.5" × 28.5" × 32" needs 4" clearance on the sides and back.
- Safety: battery-backed audible and visual alarms protect samples during power or mechanical failure.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 3 cu.ft. |
| Temperature Range | -40°C to -85°C |
| Defrost | Manual |
| Interior Capacity | 94 L / 3 cu.ft. |
| Interior Dimensions | 14" × 19.25" × 20.75" (36 × 49 × 53 cm) |
| Exterior Dimensions | 37.5" × 28.5" × 32" (95.25 × 72 × 81 cm) |
| Temperature Control System | Digital with data logging; battery back-up; Hi/Low alarm |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Doors | Single solid, locking |
| Evaporator | Cold wall |
| Insulation | Polyurethane, CFC-free |
| Legs | Four, leveling |
| Clearance | 4" on sides and back |
| Electrical Requirements | 115V, 60 Hz, 1-phase |
| Supply Plug | NEMA 5-15P |
| Certification | ETL listed |
| Material | Interior cabinet material stainless steel Exterior cabinet material electrogalvanized steel |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930012 |
| Shipping Weight | 295 lbs |
| Dimensions (L × W × H) | 41 × 32 × 41 in |
| Component Size | 3 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| ULF-201UN | EA | EA |
Documentation
More in This Series
- Chest Style Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 5 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 9 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 21Cu.Ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Ultra Low Freezers -40°C To -80°C, 27 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -80°C, 28 cu.ft., Manual Defrost
- Upright Style Ultra Low Freezers -40°C To -80°C, 31 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -85°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Ultra Low Freezers -40°C To -80°C, 30 cu.ft., Manual Defrost
- Undercounter Ultra Low Freezers -40°C To -85°C, 2 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com ships the Yamato ULF201UN directly from USA inventory, ready to order today. Our lab-equipment team supports your purchase from spec review through delivery.
- Authorized Yamato Scientific dealer: a genuine unit backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Built in the USA: manufactured to Yamato Scientific standards.
- Specialist support: lab-equipment specialists answer spec and application questions.
Frequently Asked Questions
What is the temperature range of the Yamato ULF201UN?
It operates from -40°C to -85°C. That ultra-low span suits long-term storage of temperature-sensitive samples and reagents.
How much storage capacity and interior space does it offer?
The freezer provides 3 cu.ft. (94 L) of interior capacity. Interior dimensions measure 14" × 19.25" × 20.75" (36 × 49 × 53 cm).
What electrical supply does the ULF201UN require?
It runs on 115V, 60 Hz, single-phase power. A NEMA 5-15P supply plug connects to a standard matching circuit.
What materials form the cabinet?
The interior cabinet is stainless steel and the exterior is electrogalvanized steel. CFC-free polyurethane insulation and a cold wall evaporator complete the construction.
Does this freezer use manual or automatic defrost?
This unit uses manual defrost. Periodic manual defrosting maintains evaporator performance.
What alarm and monitoring features are included?
A battery-operated alarm provides audible and visual signals on mechanical or electrical failure. Over- and under-temperature settings, an alarm silencing switch, a battery test switch, and a relay for remote alarm hook-up come standard.
