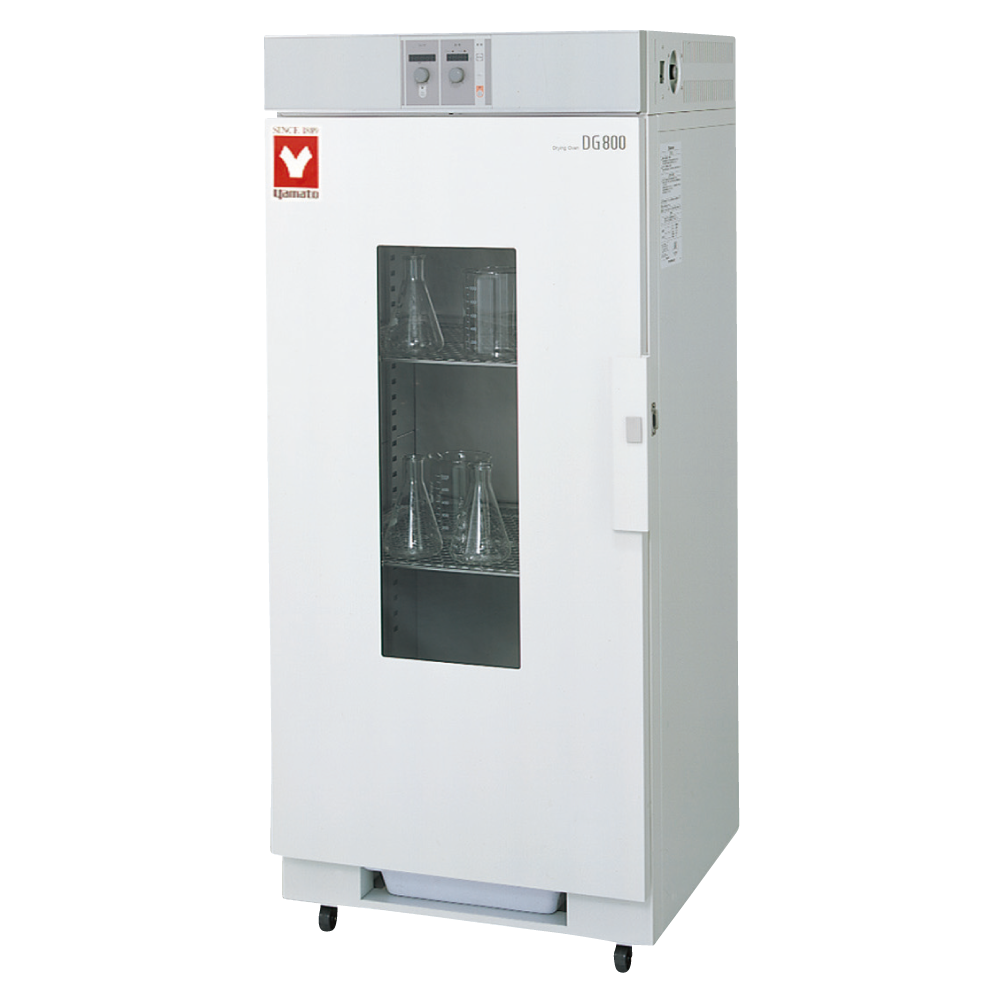

Natural Convection Glassware Drying Oven 445L Overview
The Natural Convection Glassware Drying Oven 445L (Yamato Scientific DG800C) is a gravity convection oven built for high-volume glassware drying and post-wash conditioning. With a 445 L chamber and an operating range of ambient +5 to 70°C, it dries flasks, beakers, and labware in bulk. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
A SUS304 stainless steel interior resists corrosion and wipes clean between cycles. Heat comes from a stainless steel pipe heater, while a water receiving plate at the chamber bottom captures runoff from wet glassware. Efficient insulation across the internal and external structure holds chamber temperature, and a large observation window lets technicians monitor loads without opening the door.
Bonderized steel sheet iron with a melamine resin baking finish forms the exterior. The oven measures 32 × 34 × 73 in and weighs 340 lbs, riding on casters with an adjustable foot for stable leveling on uneven floors. Choose 115V (DG800C) or 220V (DG810C). Yamato manufacturing is backed by ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certification.
Key Features
- 445 L capacity: large gravity convection chamber sized for bulk glassware drying and instrument storage after drying.
- SUS304 stainless interior: corrosion-resistant chamber that is easy to clean between cycles.
- Stainless pipe heater + water receiving plate: durable heating with a bottom plate that captures runoff from wet labware.
- Large observation window: monitor loads without opening the door and disrupting chamber temperature.
- Dial setting with digital display: temperature and timer set by dial and shown on a digital readout.
- Mobile, leveling design: casters for positioning plus an adjustable foot for stability on uneven floors.
How to Choose the Right Convection Oven
Glassware drying ovens are specified around chamber volume, achievable temperature, and how the unit will be powered and positioned in your space. Match these axes to your throughput and facility before ordering.
- Capacity: a 445 L chamber suits labs drying many flasks and beakers per cycle; confirm your peak load fits the interior volume.
- Temperature range: ambient +5 to 70°C covers standard glassware drying; verify it meets your protocol's setpoint.
- Control type: dial setting with digital display offers simple operation with at-a-glance temperature and timer readout.
- Voltage: select 115V (DG800C) or 220V (DG810C) to match the available circuit at the installation point.
- Footprint and mobility: the 32 × 34 × 73 in, 340 lb cabinet rides on casters with an adjustable foot — plan floor space and access.
- Materials and cleanability: a SUS304 stainless interior matters where corrosion resistance and easy cleaning are priorities.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 445 L |
| Voltage | 115V |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple (controller); liquid-expansion (overheat protection) |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with chemical-proof coating |
| Safety Devices | Self-diagnostic functions (abnormal temperature, automatic overheat prevention, SSR short-circuit); key lock; independent overheat protector; overcurrent leakage breaker |
| Circulation Method | Natural convection |
| Heater | SUS pipe heater, 1.34 kW |
| Operating Temperature Range | ambient +5 to 70°C *1 |
| Material | Bonderized steel sheet iron, melamine resin baking finish (exterior) Stainless steel SUS304 (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059926374 |
| Shipping Weight | 340 lbs |
| Dimensions (L × W × H) | 32 × 34 × 73 in |
| Component Size | 445 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DG-800C | 115V | EA |
| DG-810C | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DG800C and DG810C ships as a genuine factory unit with manufacturer warranty intact. Order directly online and our lab-equipment specialists are available for spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: available to order now, no waitlist.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Lab-equipment specialists: direct support for voltage, capacity, and installation questions.
Frequently Asked Questions
What is the operating temperature range of the DG800C?
The DG800C operates from ambient +5°C up to 70°C. This range suits standard glassware drying and post-wash conditioning of labware.
How large is the chamber and overall cabinet?
The chamber holds 445 L. The full cabinet measures 32 × 34 × 73 in (L×W×H) and weighs 340 lbs, riding on casters for positioning.
What is the difference between the DG800C and DG810C?
Voltage is the only difference. DG800C is the 115V model and DG810C is the 220V model; both share the same 445 L capacity, temperature range, and construction.
What materials are used in the oven construction?
The interior is SUS304 stainless steel for corrosion resistance and easy cleaning. The exterior is bonderized steel sheet iron with a melamine resin baking finish, and the heater is a stainless steel pipe element.
How is temperature controlled on this oven?
Temperature and timer are set by dial and shown on a digital display. A large observation window lets technicians monitor loads without opening the door.
Is the oven certified to recognized quality standards?
Yes. Yamato manufacturing is certified to ISO 9001:2015 (quality), ISO 14001:2015 (environmental), and ISO 45001:2018 (occupational health and safety).
