Muffle Furnace With Communication Port 11.3L Overview

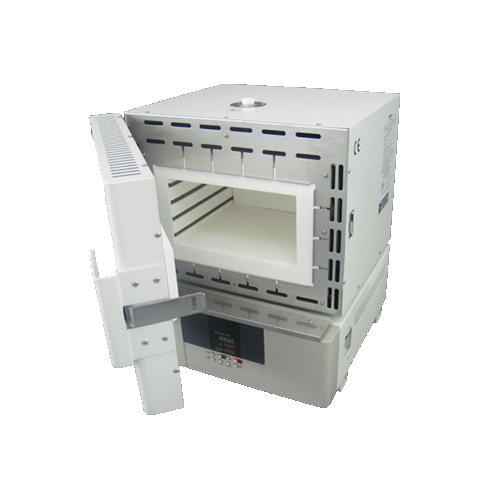

The Muffle Furnace With Communication Port 11.3L (model FO511CR) from Yamato Scientific is a high-temperature muffle furnace built around an 11.3 L chamber for ashing, ignition, gravimetric loss-on-ignition, and heat-treatment work. LabSupplies.com supplies this unit as an authorized dealer, delivering a genuine Yamato instrument backed by manufacturer support.
An integrated communication port distinguishes this configuration, letting the furnace connect to external monitoring or data-acquisition systems for documented process control. The 11.3 L muffle chamber gives laboratories room to process multiple crucibles or larger sample sets in a single run.
FO511CR operates on 220V power and ships from USA inventory. For exact temperature rating, external dimensions, weight, and certification details, contact our lab-equipment specialists, who confirm specifications directly against the manufacturer datasheet before you order.
Key Features
- Communication port: built-in interface connects the furnace to external monitoring or data-acquisition systems for documented, repeatable process control.
- 11.3 L muffle chamber: accommodates multiple crucibles or larger sample batches per run, reducing repeat cycles in high-throughput labs.
- 220V operation: single high-temperature unit specified for a 220V supply; confirm site circuit compatibility before installation.
- Laboratory muffle design: enclosed chamber construction isolates samples from heating elements for clean ashing and ignition work.
How to Choose the Right Muffle Furnace
Selecting a muffle furnace means matching chamber size, control capability, and site power to your actual workload. Use these axes to scope the right unit for your lab.
- Capacity: chamber volume (here, 11.3 L) sets how many crucibles or how large a sample load you can process per cycle.
- Temperature range: confirm the maximum operating temperature meets your ashing, ignition, or heat-treatment requirements before specifying.
- Control and data: a communication port supports external monitoring and data logging when your QC process demands documented, traceable runs.
- Voltage: verify the unit's supply requirement (this model is 220V) against the circuits available at the install location.
- Footprint and weight: confirm bench or floor space and load rating, since high-temperature furnaces are dense and need clearance for heat dissipation.
- Safety features: evaluate over-temperature protection and insulation for the environment where the furnace will run.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 11.3 L |
| Voltage | 220V |
| Operating Temperature Range | 100 to 1150°C *1 |
| Temperature Accuracy | ±2°C (at 1150°C) *2 |
| Temperature Control System | PID control (VS6 controller) |
| Sensor | R-thermocouple |
| Interior Material | Ceramic fiber |
| Exterior Material | Steel with melamine/epoxy composite resin coating; SUS304 |
| Operation Function | Fixed temperature, timer (auto start/stop), program (up to 6 patterns) |
| Safety Devices | Self-diagnostic (memory error, sensor error); earth-leakage/circuit breaker; overheat prevention device |
| Heater | Iron-chrome wire, 2.5 kW |
| Internal Dimensions | 300 × 250 × 150 mm |
| Material | Steel, Melamine, Epoxy composite resin coating, Stainless steel, SUS304 (body) Ceramic fiber (furnace and door) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927029 |
| Shipping Weight | 175 lbs |
| Dimensions (L × W × H) | 36 × 36 × 34 in |
| Component Size | 11 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| FO-511CR | EA | EA |
Documentation
More in This Series
- Muffle Furnace With Communication Port 1.5L
- Muffle Furnace With Communication Port 3.75L
- Muffle Furnace With Communication Port 7.5L
- Muffle Furnace With Communication Port 9L
- Muffle Furnace With Communication Port 17.5L
- Muffle Furnace With Communication Port 23.6L
- Muffle Furnace With Communication Port 30L
- High Performance Muffle Furnace 1.5L
- High Performance Muffle Furnace 7.5L
- High Performance Muffle Furnace 11.3L
Why Buy From LabSupplies.com
LabSupplies.com sells the Yamato Scientific FO511CR direct, so you order the unit you need without a quote-request delay.
- Authorized Yamato Scientific dealer: every unit is genuine and backed by the manufacturer warranty.
- In stock: available to order now, with no out-of-stock waiting.
- Ships from USA inventory: dispatched from domestic stock for faster delivery.
- Lab-equipment specialists: our team answers spec and compatibility questions directly so you order the correct configuration the first time.
Frequently Asked Questions
What capacity does the Yamato FO511CR muffle furnace offer?
The FO511CR provides an 11.3 L muffle chamber. That volume lets you process multiple crucibles or larger sample loads per cycle for ashing, ignition, and heat-treatment work.
What is the maximum operating temperature of the FO511CR?
The exact temperature rating is not listed in our current product data. Contact our lab-equipment specialists, who will confirm the FO511CR's maximum operating temperature against the Yamato datasheet before you order.
What power supply does the FO511CR require?
The FO511CR is configured for 220V. Verify that a matching circuit is available at your install location before purchase, and contact us if you need help confirming site compatibility.
What does the communication port on this furnace do?
The communication port lets the furnace connect to external monitoring or data-acquisition systems. That capability supports documented, traceable process control for QC and regulated workflows.
What are the external dimensions and weight of the FO511CR?
External dimensions and weight are not stated in our current product data. Contact our specialists for the confirmed footprint and load figures so you can plan bench or floor placement.
Is the FO511CR a genuine Yamato unit with warranty?
Yes. LabSupplies.com is an authorized Yamato Scientific dealer, so the FO511CR ships as a genuine unit backed by the manufacturer warranty, dispatched from USA inventory.
