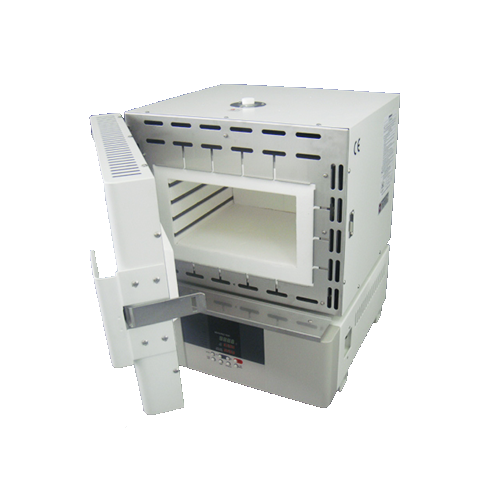

Muffle Furnace With Communication Port 23.6L Overview
The Muffle Furnace With Communication Port 23.6L (FO711CR) from Yamato Scientific is a high-temperature muffle furnace built around a 23.6 L chamber and a 100 to 1150°C operating range. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer, shipping genuine product from the USA.
Inside the chamber, ceramic fiber insulation surrounds the work zone, while the exterior combines steel, a melamine and epoxy composite resin coating, and SUS304 components. A 3.5 kW iron-chrome wire heater drives the load, and long-life R-thermocouple sensing holds accuracy to ±2°C at 1150°C. PID control through the VS6 controller manages every program step.
Yamato lists external dimensions (W × D × H) of 507 × 605 × 727 mm (20.0 × 23.8 × 28.6 in); packed for shipping it measures 36 × 36 × 38 in at 215 lb. Country of origin is listed as CH, and the unit ships from the USA. CE documentation is available for this model.
Key Features
- Wide temperature range: heats from 100 to 1150°C with ±2°C accuracy at 1150°C.
- PID program control: VS6 controller supports up to 6 patterns — 30 steps × 1, 15 steps × 2, or 10 steps × 3.
- Long-life sensing: upgraded R-thermocouple sensors paired with a 3.5 kW iron-chrome wire heater.
- Sealed chamber door: firmly sealed door delivers strong heat tightness across the work zone.
- Layered safety: self-diagnostic functions, earth-leakage breaker, overheat prevention device, lock function, calibration offset, and auto-recovery after power failure.
How to Choose the Right Muffle Furnace
Selecting a muffle furnace comes down to matching chamber size, temperature ceiling, and control capability to the work the lab performs. Use the criteria below to confirm the FO711CR fits your application.
- Capacity: the 23.6 L chamber (270 × 350 × 250 mm interior) determines batch size and sample throughput per cycle.
- Control type: PID programming with up to 6 patterns matters when processes require staged ramp, hold, and cool profiles.
- Voltage and power: confirm the 220V supply and 3.5 kW heater load against available circuits before installation.
- Footprint and weight: Yamato lists external dimensions (W × D × H) of 507 × 605 × 727 mm (20.0 × 23.8 × 28.6 in); packed for shipping it measures 36 × 36 × 38 in at 215 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 23.6 L |
| Voltage | 220V |
| Operating Temperature Range | 100 to 1150°C *1 |
| Temperature Accuracy | ±2°C (at 1150°C) *2 |
| Temperature Control System | PID control (VS6 controller) |
| Sensor | R-thermocouple |
| Interior Material | Ceramic fiber |
| Exterior Material | Steel with melamine/epoxy composite resin coating; SUS304 |
| Operation Function | Fixed temperature, timer (auto start/stop), program (up to 6 patterns) |
| Safety Devices | Self-diagnostic (memory error, sensor error); earth-leakage/circuit breaker; overheat prevention device |
| Heater | Iron-chrome wire, 3.5 kW |
| Internal Dimensions | 270 × 350 × 250 mm |
| Material | Steel, Melamine, Epoxy composite resin coating, Stainless steel, SUS304 (body) Ceramic fiber (furnace and door) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932986 |
| Shipping Weight | 215 lbs |
| External Dimensions (W × D × H) | 507 × 605 × 727 mm (20.0 × 23.8 × 28.6 in) |
| Shipping Dimensions (L × W × H) | 36 × 36 × 38 in |
| Component Size | 23 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare FO Series Models
| Model | Capacity | Shipping weight |
|---|---|---|
| FO101CR | 1.5 L | 115 lbs |
| FO201CR | 3.75 L | 132 lbs |
| FO301CR | 7.5 L | 150 lbs |
| FO411CR | 9 L | 160 lbs |
| FO511CR | 11.3 L | 175 lbs |
| FO611CR | 17.5 L | 202 lbs |
| FO711CR (this model) | 23.6 L | 215 lbs |
| FO811CR | 30 L | 234 lbs |
All models in this group share: temperature range 100 to 1150°C; accuracy ±2°C (at 1150°C).
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| FO-711CR | 797059932986 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | FO-711CR |
| UNSPSC | 40101805 — Furnaces |
| HTS code | 8514.19.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato FO Series Muffle Furnace brochure (PDF, 948 KB)
More in This Series
- Yamato FO611CR Muffle Furnace With Communication Port 17.5L
- Yamato FO811CR Muffle Furnace With Communication Port 30L
- Yamato FO511CR Muffle Furnace With Communication Port 11.3L
- Yamato FP103 High Performance Muffle Furnace 1.5L
- Yamato FP303 High Performance Muffle Furnace 7.5L
- Yamato FO411CR Muffle Furnace With Communication Port 9L
View all Laboratory Muffle Furnaces →
Frequently Asked Questions
What is the operating temperature range of the FO711CR?
The FO711CR operates from 100 to 1150°C. Temperature accuracy is rated at ±2°C at 1150°C, supported by R-thermocouple sensing and PID control through the VS6 controller.
What is the chamber capacity and interior size?
Chamber capacity is 23.6 L, with interior dimensions of 270 × 350 × 250 mm. Yamato lists external dimensions (W × D × H) of 507 × 605 × 727 mm (20.0 × 23.8 × 28.6 in); packed for shipping it measures 36 × 36 × 38 in at 215 lb.
What voltage and power does this furnace require?
The FO711CR runs on 220V. Its heating element is a 3.5 kW iron-chrome wire heater, so confirm the circuit rating against your facility supply before installation.
What materials are used in the chamber and body?
Ceramic fiber insulates the furnace interior and door. The exterior body combines steel, a melamine and epoxy composite resin coating, and SUS304 stainless steel components.
Can the furnace run multi-step temperature programs?
Yes. The VS6 PID controller supports fixed-temperature, timer, and program operation with up to 6 patterns — configurable as 30 steps × 1, 15 steps × 2, or 10 steps × 3.
What safety features are included?
Safety devices include self-diagnostic functions for memory and sensor errors, an earth-leakage circuit breaker, an overheat prevention device, a lock function, calibration offset, and auto-recovery after power failure.
What is the UNSPSC code for the Yamato FO711CR?
The Yamato FO711CR is classified under UNSPSC 40101805 (furnaces).
Where is the Yamato FO711CR manufactured?
Yamato Scientific lists China as the country of origin for the FO711CR.
Is there a spec sheet or brochure for the Yamato FO711CR?
Yes. The Yamato FO Series Muffle Furnace brochure (948 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato FO711CR compare with the other FO Series models?
Yamato builds this FO Series line in 8 sizes: 1.5 L (FO101CR), 3.75 L (FO201CR), 7.5 L (FO301CR), 9 L (FO411CR), 11.3 L (FO511CR), 17.5 L (FO611CR), 23.6 L (FO711CR) and 30 L (FO811CR). All share temperature range 100 to 1150°C and accuracy ±2°C (at 1150°C). The comparison table on this page lists capacity and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato FO711CR?
Yamato rates the FO711CR for temperature accuracy at ±2°C (at 1150°C).
