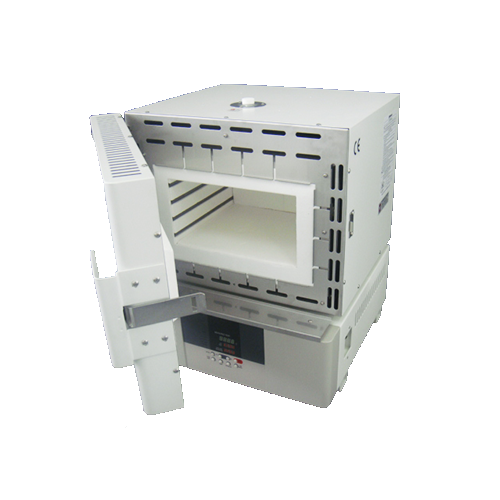

Muffle Furnace With Communication Port 9L Overview
The Muffle Furnace With Communication Port 9L (model FO411CR) from Yamato Scientific is a high-temperature muffle furnace built around a 9 L chamber for ashing, sintering, and gravimetric sample preparation. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer, shipping genuine equipment from USA inventory.
An integrated communication port lets the FO411CR connect to a PC or data system, supporting remote monitoring and record-keeping for compliance-driven workflows. Chamber materials, insulation construction, and exact thermal ratings are listed as Contact for specification, ensuring every value matches the manufacturer datasheet rather than an estimate.
Power is supplied at 220V, so site electrical capacity should be confirmed before installation. Footprint dimensions, shipping weight, and country of origin are noted as Contact for specification. Lab-equipment specialists at LabSupplies.com can verify outstanding details directly against Yamato documentation prior to purchase.
Key Features
- 9 L chamber capacity: sized for routine ashing, ignition, and sample-preparation batches in analytical and QC labs.
- Integrated communication port: connects the furnace to a PC or data system for remote monitoring and process records.
- 220V operation: single high-temperature heating unit configured for 220V site power.
- Yamato Scientific build: genuine FO411CR unit supplied with manufacturer warranty through an authorized dealer.
How to Choose the Right Muffle Furnace
Selecting a muffle furnace comes down to matching chamber size, thermal performance, control sophistication, and electrical fit to the work your lab actually runs.
- Capacity: chamber volume sets how many crucibles or samples you process per cycle; the FO411CR offers a 9 L chamber.
- Temperature range: confirm the maximum operating temperature meets your ashing or sintering protocol; verify the rated range against the datasheet.
- Control and data: a communication port, as fitted here, enables PC connection and logging for traceable, audit-ready records.
- Voltage: match the furnace to your facility supply; this model is configured for 220V.
- Footprint: measure bench or floor space and clearances before ordering; request exact dimensions when confirming the spec.
- Safety: evaluate over-temperature protection and insulation suited to your sample chemistry and operator workflow.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 9 L |
| Voltage | 220V |
| Operating Temperature Range | 100 to 1150°C *1 |
| Temperature Accuracy | ±2°C (at 1150°C) *2 |
| Temperature Control System | PID control (VS6 controller) |
| Sensor | R-thermocouple |
| Interior Material | Ceramic fiber |
| Exterior Material | Steel with melamine/epoxy composite resin coating; SUS304 |
| Operation Function | Fixed temperature, timer (auto start/stop), program (up to 6 patterns) |
| Safety Devices | Self-diagnostic (memory error, sensor error); earth-leakage/circuit breaker; overheat prevention device |
| Heater | Iron-chrome wire, 2.2 kW |
| Internal Dimensions | 200 × 300 × 150 mm |
| Material | Steel, Melamine, Epoxy composite resin coating, Stainless steel, SUS304 (body) Ceramic fiber (furnace and door) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927012 |
| Shipping Weight | 160 lbs |
| Dimensions (L × W × H) | 36 × 36 × 33 in |
| Component Size | 9 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| FO-411CR | EA | EA |
Documentation
More in This Series
- Muffle Furnace With Communication Port 1.5L
- Muffle Furnace With Communication Port 3.75L
- Muffle Furnace With Communication Port 7.5L
- Muffle Furnace With Communication Port 11.3L
- Muffle Furnace With Communication Port 17.5L
- Muffle Furnace With Communication Port 23.6L
- Muffle Furnace With Communication Port 30L
- High Performance Muffle Furnace 1.5L
- High Performance Muffle Furnace 7.5L
- High Performance Muffle Furnace 11.3L
Why Buy From LabSupplies.com
Procurement teams order the FO411CR directly from LabSupplies.com and receive a genuine Yamato Scientific unit ready for installation.
- Authorized Yamato Scientific dealer: every furnace is a genuine unit covered by the manufacturer warranty.
- In stock: the FO411CR is available now, with no back-order wait.
- Ships from USA inventory: orders dispatch from domestic stock for predictable delivery.
- Lab-equipment specialists: our team answers spec and compatibility questions before you commit.
Frequently Asked Questions
What is the maximum operating temperature of the FO411CR?
The rated maximum temperature is Contact for specification. We verify the exact thermal range against Yamato Scientific documentation on request so your protocol requirements are confirmed before purchase.
What is the chamber capacity of the FO411CR muffle furnace?
The FO411CR has a 9 L chamber capacity. Exact internal and external dimensions are Contact for specification and can be confirmed against the manufacturer datasheet prior to ordering.
What voltage does the FO411CR require?
The FO411CR is configured for 220V operation. Confirm your facility electrical supply matches this requirement before installation; our specialists can review site compatibility with you.
What does the communication port do?
The integrated communication port connects the furnace to a PC or data system. This supports remote monitoring and record-keeping for traceable, compliance-driven workflows.
What materials is the chamber and insulation made from?
Chamber and insulation construction details are Contact for specification. We confirm material specifics directly from Yamato Scientific documentation so the answer matches the official datasheet.
Is the FO411CR a genuine Yamato unit with warranty?
Yes. LabSupplies.com is an authorized Yamato Scientific dealer, so the FO411CR ships as a genuine unit with manufacturer warranty, dispatched from USA inventory.
