General Purpose Incubator With Window 567L Overview

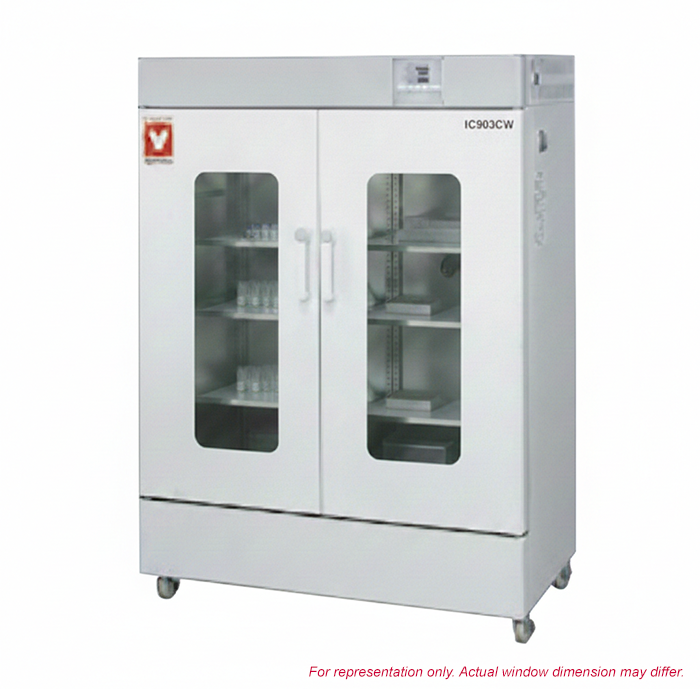

The General Purpose Incubator With Window 567L (model IC903CW) is a 567 L natural convection incubator from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Operating across ambient +5 to 80°C, this unit pairs a large chamber with dual reinforced-glass observation doors so technicians can view contents without disturbing the internal atmosphere.
Key Features
- Dual observation doors: two reinforced-glass inner doors let staff inspect samples while keeping the chamber atmosphere undisturbed.
- Natural convection air jacket: air-jacket heat transfer spreads temperature evenly to a ±1.0°C distribution across the 567 L chamber.
- PID microprocessor control: digital setting display plus integrated timer with K-thermocouple sensing and ±0.5°C accuracy at 37°C.
- Built-in safeguards: self-diagnostic checks for sensor, display, and measured-temperature errors, plus automatic overheat prevention, calibration off-set, and key lock.
- Voltage options: IC903CW for 115V supply and IC913CW for 220V supply.
How to Choose the Right Incubator
- Voltage: select IC903CW for 115V circuits or IC913CW for 220V circuits to match your facility power.
- Footprint and weight: Yamato lists external dimensions (W × D × H) of 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in); packed for shipping it measures 51 × 31 × 73 in at 550 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 567 L |
| Voltage | 115V |
| System | Natural convection |
| Operating Temperature Range | ambient +5 to 80°C *1 |
| Temperature Accuracy | ±0.5°C (at 37°C) *2 |
| Temperature Distribution | ±1.0°C *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass fiber |
| Operation Function | Fixed temperature, auto start/stop, quick auto stop |
| Safety Devices | Self-diagnostic functions (sensor error, display error, measured-temperature error); automatic overheat prevention |
| Heater | Iron-chrome wire heater, 2.2 kW |
| Internal Dimensions | 1070 × 530 × 1000 mm |
| Inner Door | Reinforced glass observation doors (×2) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927555 |
| Shipping Weight | 550 lbs |
| External Dimensions (W × D × H) | 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in) |
| Shipping Dimensions (L × W × H) | 51 × 31 × 73 in |
| Component Size | 567 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare IC Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| IC103CW | 37 L | 430 × 397 × 606 mm (16.9 × 15.6 × 23.9 in) | 112 lbs |
| IC403CW | 97 L | 560 × 606 × 820 mm (22.0 × 23.9 × 32.3 in) | 204 lbs |
| IC603CW | 159 L | 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in) | 245 lbs |
| IC803CW | 318 L | 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in) | 355 lbs |
| IC903CW (this model) | 567 L | 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in) | 550 lbs |
All models in this group share: temperature range ambient +5 to 80°C; accuracy ±0.5°C (at 37°C).
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| IC-903CW | 115V | 797059927555 |
| IC-913CW | 220V | 797059927562 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | IC-903CW, IC-913CW |
| UNSPSC | 41104401 — Gravity convection general purpose incubators |
| HTS code | 8419.89.9585 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato IC Series General Purpose Incubator brochure (PDF, 1.1 MB)
- Yamato Scientific America product page
Parts & Accessories for the IC Series
Genuine Yamato IC-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato IN804W Refrigerated Incubator Programmable With Window 286L
- Yamato IN604WMK Refrigerated Incubator Programmable 143L With Window & MK-161 Shaker
- Yamato IN804 Refrigerated Incubator Programmable 286L
- Yamato INE800 Refrigerated Eco Incubator Programmable 286L
- Yamato IN604W Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
- Yamato IN604 Refrigerated Incubator Programmable 143L
View all Laboratory Incubators →
Frequently Asked Questions
What is the temperature range of the IC903CW incubator?
The IC903CW operates from ambient +5°C up to 80°C. Temperature accuracy is ±0.5°C at 37°C, with a chamber distribution of ±1.0°C, controlled by a PID microprocessor and K-thermocouple sensor.
How large is the chamber and overall footprint?
The chamber holds 567 L with internal dimensions of 1070 × 530 × 1000 mm. Yamato lists external dimensions (W × D × H) of 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in); packed for shipping it measures 51 × 31 × 73 in at 550 lb.
What voltage does this incubator require?
Two builds are available: IC903CW runs on 115V and IC913CW runs on 220V. Both share identical chamber, control, and construction specifications; the voltage is the only difference.
Can samples be viewed without opening the incubator?
Yes. The unit uses a dual-door system with two reinforced-glass observation doors, allowing staff to inspect contents while the inner door keeps the chamber atmosphere undisturbed.
Which replacement parts and accessories are listed for the Yamato IC903CW?
Yamato lists 6 parts for the IC Series: 212246, 212266, 212822, 212823, 281596 and 42110501001. Each is linked with its description in the parts table on this page.
What is the difference between IC-903CW and IC-913CW?
IC-903CW is the 115V configuration. IC-913CW is the 220V configuration. Order the catalog number that matches your facility's electrical supply.
What is the UNSPSC code for the Yamato IC903CW?
The Yamato IC903CW is classified under UNSPSC 41104401 (gravity convection general purpose incubators).
Where is the Yamato IC903CW manufactured?
Yamato Scientific lists China as the country of origin for the IC903CW.
Is there a spec sheet or brochure for the Yamato IC903CW?
Yes. The Yamato IC Series General Purpose Incubator brochure (1.1 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato IC903CW compare with the other IC Series models?
Yamato builds this IC Series line in 5 sizes: 37 L (IC103CW), 97 L (IC403CW), 159 L (IC603CW), 318 L (IC803CW) and 567 L (IC903CW). All share temperature range ambient +5 to 80°C and accuracy ±0.5°C (at 37°C). The comparison table on this page lists capacity, exterior and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato IC903CW?
Yamato rates the IC903CW for temperature accuracy at ±0.5°C (at 37°C) and temperature distribution at ±1.0°C.
