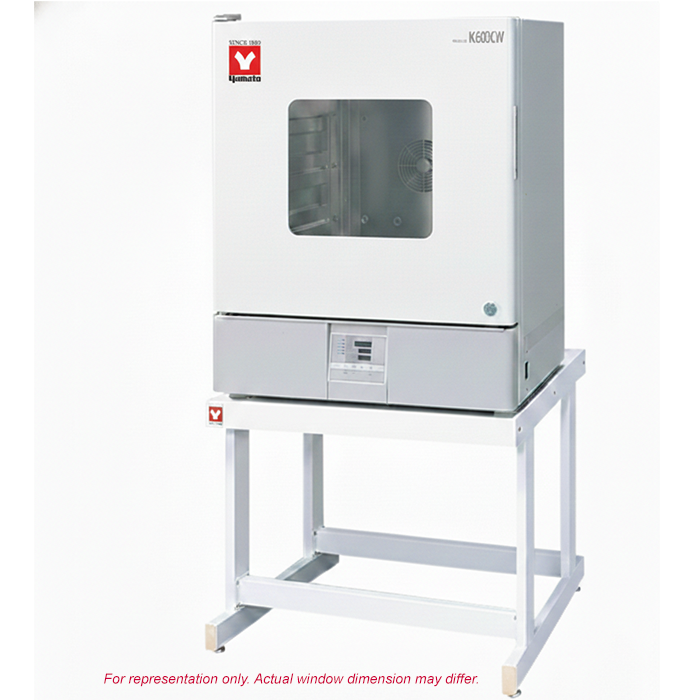

General Purpose Incubator With Window 159L Overview
Air jacket technology distributes heat evenly throughout the chamber, while PID control by microprocessor holds temperature accuracy of ±0.5°C at 37°C with ±1.0°C distribution. A K-thermocouple drives the control loop. The dual-door design pairs an outer door with a reinforced glass observation door, letting technicians inspect contents without disturbing chamber atmosphere.
Key Features
- Dual-door observation system: an outer door plus a reinforced glass inner door lets users view contents without disrupting chamber atmosphere.
- Air jacket heating: natural convection with air jacket technology delivers even, efficient heat distribution throughout the 159 L chamber.
- PID microprocessor control: holds ±0.5°C accuracy at 37°C and ±1.0°C distribution using a K-thermocouple sensor.
- Digital display and timer: simple digital setting with auto start/stop, quick auto stop, and fixed-temperature operation.
- Safety functions: self-diagnostics for sensor, display, and measured-temperature errors, plus automatic overheat prevention.
How to Choose the Right Incubator
- Capacity: the 159 L chamber (600 × 530 × 500 mm interior) sets how many plates, flasks, or samples you can run per cycle.
- Voltage: choose IC603CW for 115V circuits or IC613CW for 220V; match the unit to your facility's available power.
- Footprint and weight: Yamato lists external dimensions (W × D × H) of 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in); packed for shipping it measures 36 × 36 × 45 in at 245 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 159 L |
| Voltage | 115V |
| System | Natural convection |
| Operating Temperature Range | ambient +5 to 80°C *1 |
| Temperature Accuracy | ±0.5°C (at 37°C) *2 |
| Temperature Distribution | ±1.0°C *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass fiber |
| Operation Function | Fixed temperature, auto start/stop, quick auto stop |
| Safety Devices | Self-diagnostic functions (sensor error, display error, measured-temperature error); automatic overheat prevention |
| Heater | Iron-chrome wire heater, 0.4 kW |
| Internal Dimensions | 600 × 530 × 500 mm |
| Inner Door | Reinforced glass observation door |
| Country of Origin | China |
| GTIN (Barcode) | 797059927517 |
| Shipping Weight | 245 lbs |
| External Dimensions (W × D × H) | 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in) |
| Shipping Dimensions (L × W × H) | 36 × 36 × 45 in |
| Component Size | 159 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare IC Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| IC103CW | 37 L | 430 × 397 × 606 mm (16.9 × 15.6 × 23.9 in) | 112 lbs |
| IC403CW | 97 L | 560 × 606 × 820 mm (22.0 × 23.9 × 32.3 in) | 204 lbs |
| IC603CW (this model) | 159 L | 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in) | 245 lbs |
| IC803CW | 318 L | 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in) | 355 lbs |
| IC903CW | 567 L | 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in) | 550 lbs |
All models in this group share: temperature range ambient +5 to 80°C; accuracy ±0.5°C (at 37°C).
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| IC-603CW | 115V | 797059927517 |
| IC-613CW | 220V | 797059927524 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | IC-603CW, IC-613CW |
| UNSPSC | 41104401 — Gravity convection general purpose incubators |
| HTS code | 8419.89.9585 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato IC Series General Purpose Incubator brochure (PDF, 1.1 MB)
- Yamato Scientific America product page
Parts & Accessories for the IC Series
Genuine Yamato IC-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato IC403CW General Purpose Incubator With Window 97L
- Yamato IC103CW General Purpose Benchtop Incubator With Window 37L
- Yamato IC103C General Purpose Benchtop Incubator 37L
- Yamato IC803CW General Purpose Incubator With Window 318L
- Yamato IN604 Refrigerated Incubator Programmable 143L
- Yamato IN604W Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
View all Laboratory Incubators →
Frequently Asked Questions
What is the operating temperature range of the IC603CW incubator?
The IC603CW operates from ambient +5 to 80°C. It uses PID control by microprocessor with a K-thermocouple sensor, holding ±0.5°C accuracy at 37°C and ±1.0°C distribution across the chamber.
What is the chamber capacity and interior size?
The chamber holds 159 L with interior dimensions of 600 × 530 × 500 mm. Yamato lists external dimensions (W × D × H) of 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in); packed for shipping it measures 36 × 36 × 45 in at 245 lb.
What voltage does this incubator require?
The IC603CW runs on 115V. For 220V circuits, order the IC613CW, which is the same 159 L incubator configured for higher-voltage power. Match the model to your facility's available power.
What materials are used in the construction?
The interior is stainless steel and the exterior is cold-rolled steel plate with a melamine resin baked finish. Glass fiber provides heat insulation, and the inner observation door is reinforced glass.
What is the difference between the IC603CW and IC613CW?
Voltage is the only difference. The IC603CW is the 115V version and the IC613CW is the 220V version; both are 159 L natural convection incubators with an observation window and identical specifications otherwise.
What safety features does the incubator include?
The incubator includes automatic overheat prevention and self-diagnostic functions that detect sensor errors, display errors, and measured-temperature errors. Operation functions also include auto start/stop and quick auto stop.
Which replacement parts and accessories are listed for the Yamato IC603CW?
Yamato lists 6 parts for the IC Series: 212246, 212266, 212822, 212823, 281596 and 42110501001. Each is linked with its description in the parts table on this page.
What is the UNSPSC code for the Yamato IC603CW?
The Yamato IC603CW is classified under UNSPSC 41104401 (gravity convection general purpose incubators).
Where is the Yamato IC603CW manufactured?
Yamato Scientific lists China as the country of origin for the IC603CW.
Is there a spec sheet or brochure for the Yamato IC603CW?
Yes. The Yamato IC Series General Purpose Incubator brochure (1.1 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato IC603CW compare with the other IC Series models?
Yamato builds this IC Series line in 5 sizes: 37 L (IC103CW), 97 L (IC403CW), 159 L (IC603CW), 318 L (IC803CW) and 567 L (IC903CW). All share temperature range ambient +5 to 80°C and accuracy ±0.5°C (at 37°C). The comparison table on this page lists capacity, exterior and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato IC603CW?
Yamato rates the IC603CW for temperature accuracy at ±0.5°C (at 37°C) and temperature distribution at ±1.0°C.
