Factory order — approx. 20 weeks lead timeIC-803CW · Yamato Scientific America US stock report
Why order the IC803CW from LabSupplies.com

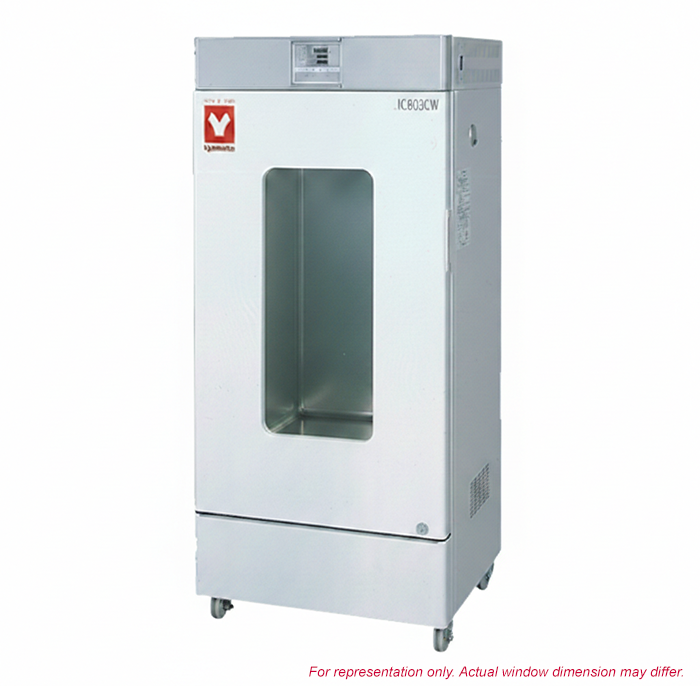

General Purpose Incubator With Window 318L Overview
The General Purpose Incubator With Window 318L (model IC803CW) is a natural convection incubator from Yamato Scientific, supplied through LabSupplies.com as an authorized dealer. Built around a 318 L chamber, this unit holds an operating temperature range of ambient +5 to 80°C. A dual-door design with a reinforced glass observation window lets staff inspect contents without opening the chamber and disturbing the internal atmosphere.
Air-jacket heating distributes warmth evenly across the stainless steel interior. PID microprocessor control paired with a K-thermocouple sensor delivers ±0.5°C accuracy at 37°C and ±1.0°C distribution. Glass fiber insulation surrounds the chamber, while the cold-rolled steel exterior carries a melamine resin baked finish. Heat is produced by a 0.7 kW iron-chrome wire heater.
Model IC803CW runs on 115V, and the IC813CW variant covers 220V installations. Yamato lists external dimensions (W × D × H) of 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in); packed for shipping it measures 32 × 30 × 73 in at 355 lb. Self-diagnostic functions, automatic overheat prevention, and a key lock support unattended operation. Country of origin is listed as CH per the manufacturer data.
Key Features
- Dual-door observation: a reinforced glass inner door with a 250 × 700 mm window allows viewing without releasing chamber heat.
- Air-jacket heating: natural convection through an air jacket distributes temperature evenly across the 318 L chamber.
- Digital control and timer: an easy-to-read digital display with auto start/stop and quick auto stop manages set temperature and run time.
- Temperature performance: PID microprocessor control with a K-thermocouple sensor maintains ±0.5°C accuracy at 37°C and ±1.0°C distribution.
- Safety suite: self-diagnostic functions for sensor, display, and measured-temperature errors, plus automatic overheat prevention and a key lock.
- Voltage options: IC803CW supports 115V circuits; IC813CW supports 220V circuits.
How to Choose the Right Incubator
- Voltage: select IC803CW for 115V service or IC813CW for 220V service to match available site power.
- Footprint: Yamato lists external dimensions (W × D × H) of 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in); packed for shipping it measures 32 × 30 × 73 in at 355 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 318 L |
| Voltage | 115V |
| System | Natural convection |
| Operating Temperature Range | ambient +5 to 80°C *1 |
| Temperature Accuracy | ±0.5°C (at 37°C) *2 |
| Temperature Distribution | ±1.0°C *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass fiber |
| Operation Function | Fixed temperature, auto start/stop, quick auto stop |
| Safety Devices | Self-diagnostic functions (sensor error, display error, measured-temperature error); automatic overheat prevention |
| Heater | Iron-chrome wire heater, 0.7 kW |
| Internal Dimensions | 600 × 530 × 1000 mm |
| Inner Door | Reinforced glass observation door (250 × 700 mm window) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927531 |
| Shipping Weight | 355 lbs |
| External Dimensions (W × D × H) | 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in) |
| Shipping Dimensions (L × W × H) | 32 × 30 × 73 in |
| Component Size | 318 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare IC Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| IC103CW | 37 L | 430 × 397 × 606 mm (16.9 × 15.6 × 23.9 in) | 112 lbs |
| IC403CW | 97 L | 560 × 606 × 820 mm (22.0 × 23.9 × 32.3 in) | 204 lbs |
| IC603CW | 159 L | 710 × 656 × 870 mm (28.0 × 25.8 × 34.3 in) | 245 lbs |
| IC803CW (this model) | 318 L | 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in) | 355 lbs |
| IC903CW | 567 L | 1180 × 656 × 1619 mm (46.5 × 25.8 × 63.7 in) | 550 lbs |
All models in this group share: temperature range ambient +5 to 80°C; accuracy ±0.5°C (at 37°C).
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| IC-803CW | 115V | 797059927531 |
| IC-813CW | 220V | 797059927548 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | IC-803CW, IC-813CW |
| UNSPSC | 41104401 — Gravity convection general purpose incubators |
| HTS code | 8419.89.9585 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato IC Series General Purpose Incubator brochure (PDF, 1.1 MB)
- Yamato Scientific America product page
Parts & Accessories for the IC Series
Genuine Yamato IC-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato IN604 Refrigerated Incubator Programmable 143L
- Yamato IN604W Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
- Yamato IC603CW General Purpose Incubator With Window 159L
- Yamato IC403CW General Purpose Incubator With Window 97L
- Yamato IC103CW General Purpose Benchtop Incubator With Window 37L
- Yamato IC103C General Purpose Benchtop Incubator 37L
View all Laboratory Incubators →
Frequently Asked Questions
What is the operating temperature range of the IC803CW incubator?
The IC803CW operates from ambient +5 to 80°C. It uses PID microprocessor control with a K-thermocouple sensor for ±0.5°C accuracy at 37°C and ±1.0°C temperature distribution.
What is the chamber capacity and interior size?
Chamber capacity is 318 L. The interior measures 600 × 530 × 1000 mm. Yamato lists external dimensions (W × D × H) of 710 × 656 × 1619 mm (28.0 × 25.8 × 63.7 in); packed for shipping it measures 32 × 30 × 73 in at 355 lb.
What is the difference between the IC803CW and IC813CW?
The only difference is electrical input. IC803CW runs on 115V and IC813CW runs on 220V; chamber, temperature range, control system, and construction are identical.
What power does this incubator require?
The incubator uses a 0.7 kW iron-chrome wire heater. Choose IC803CW for a 115V circuit or IC813CW for a 220V circuit to match site power.
What materials are used in the chamber and exterior?
The interior is stainless steel and the exterior is cold-rolled steel plate with a melamine resin baked finish. Glass fiber provides the chamber insulation.
Can contents be viewed without opening the incubator?
Yes. A dual-door system includes a reinforced glass inner door with a 250 × 700 mm window, letting staff view samples without disrupting the chamber atmosphere.
Which replacement parts and accessories are listed for the Yamato IC803CW?
Yamato lists 6 parts for the IC Series: 212246, 212266, 212822, 212823, 281596 and 42110501001. Each is linked with its description in the parts table on this page.
What is the UNSPSC code for the Yamato IC803CW?
The Yamato IC803CW is classified under UNSPSC 41104401 (gravity convection general purpose incubators).
Where is the Yamato IC803CW manufactured?
Yamato Scientific lists China as the country of origin for the IC803CW.
Is there a spec sheet or brochure for the Yamato IC803CW?
Yes. The Yamato IC Series General Purpose Incubator brochure (1.1 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato IC803CW compare with the other IC Series models?
Yamato builds this IC Series line in 5 sizes: 37 L (IC103CW), 97 L (IC403CW), 159 L (IC603CW), 318 L (IC803CW) and 567 L (IC903CW). All share temperature range ambient +5 to 80°C and accuracy ±0.5°C (at 37°C). The comparison table on this page lists capacity, exterior and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato IC803CW?
Yamato rates the IC803CW for temperature accuracy at ±0.5°C (at 37°C) and temperature distribution at ±1.0°C.
What safety devices does the Yamato IC803CW have?
Yamato lists these safety devices for the IC803CW: self-diagnostic functions (sensor error, display error, measured-temperature error); automatic overheat prevention.
