Refrigerated Eco Incubator Programmable 286L Overview

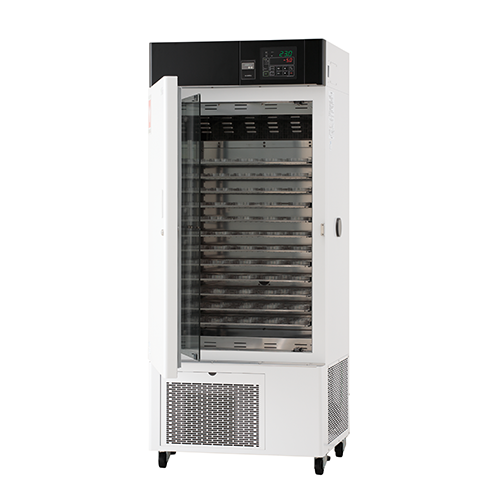

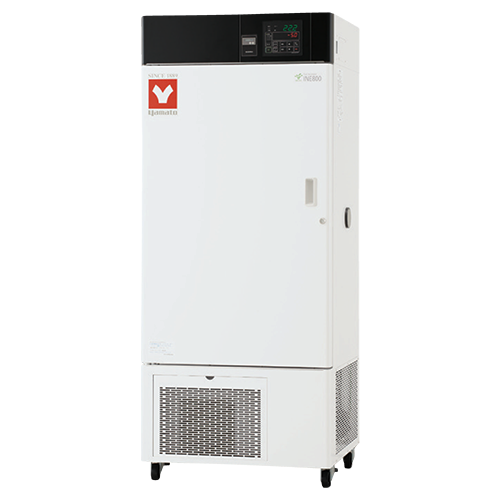

The Refrigerated Eco Incubator Programmable 286L (model INE800) from Yamato Scientific is a forced-air convection refrigerated incubator delivering a 0 to +60°C operating range across 286 liters of chamber space. LabSupplies.com stocks this unit as an authorized Yamato Scientific dealer. Programmable operation supports temperature-sensitive incubation, cold storage, and reproducible biological workflows.
A stainless steel interior pairs with a chromate-free electrogalvanized steel exterior finished in a chemical-resistant baked coating. Non-CFC styrene foam insulation and an R134a 200 W rotary refrigeration unit drive efficient cooling, while a 750 W iron-chrome wire heater handles heating. PID microprocessor control with dual Pt100Ω and K-thermocouple sensors holds ±0.2°C accuracy at 37°C.
Available in 115V and 220V configurations, the unit measures 42 × 42 × 89 inches and weighs 530 lbs. Manufactured in Japan, it ships with hot-gas-bypass defrost selectable as manual or timed auto. Yamato builds this incubator under ISO 9001:2015 and ISO 14001:2015 certified quality systems.
Key Features
- Upgraded inverter control: improves refrigeration efficiency, reduces frost buildup, and minimizes wasted power during cooling.
- Programmable operation: standard program operation with auto-stop, auto-start, quick auto stop, timer, and memory functions.
- Calibration offset: built-in offset adjustment for fine-tuning measured temperature to reference standards.
- Resource monitoring: integrated electricity and CO₂ emission monitor for tracking operational footprint.
- Precise temperature control: PID microprocessor control with ±0.2°C accuracy and ±0.5°C distribution at 37°C continuous operation.
- Dual-sensor safety: Pt100Ω controller sensor plus an independent K-thermocouple for overheat prevention.
How to Choose the Right Incubator
Selecting a refrigerated incubator means matching chamber size, temperature range, and control sophistication to your protocol. Review these axes before specifying a unit:
- Capacity: the 286 L chamber suits multi-shelf batch incubation; confirm sample volume and rack layout fit your throughput.
- Temperature range: a 0 to +60°C operating range enables below-ambient cooling for cold-sensitive cultures and assays, unlike heat-only incubators.
- Control type: PID programmable control with auto-start, timer, and memory supports unattended, repeatable temperature profiles.
- Voltage: match 115V or 220V to your facility power; verify circuit capacity before installation.
- Footprint and weight: at 42 × 42 × 89 inches and 530 lbs, confirm floor space, door clearance, and load rating.
- Safety: an independent K-thermocouple overheat cutoff protects samples and equipment during fault conditions.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 286 L |
| Voltage | 115V |
| System | Forced air convection (refrigerated, non-CFC) |
| Operating Temperature Range | 0 to +60°C (setting -5 to +65°C) *1 |
| Temperature Accuracy | ±0.2°C (continuous operation, at 37°C) *2 |
| Temperature Fluctuation | ±0.3°C (continuous operation, at 37°C) |
| Temperature Distribution | ±0.5°C (continuous operation, at 37°C) *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | Double sensor — Pt100Ω (controller); K-thermocouple (overheat prevention) |
| Interior Material | Stainless steel |
| Exterior Material | Chromate-free electrogalvanized steel plate, chemical-resistant baked finish |
| Heat Insulation | Styrene foam (non-CFC) |
| Refrigeration | 200 W rotary unit (R134a) |
| Heater | Iron-chrome wire heater, 750 W |
| Defrost | Hot-gas-bypass; manual or auto (timed) |
| Material | Chrome-free electro galvanized chemical proof bake finished steel plate (exterior) Stainless steel plate (internal) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059930982 |
| Shipping Weight | 530 lbs |
| Dimensions (L × W × H) | 42 × 42 × 89 in |
| Component Size | 286 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| INE-800-115V | 115V | EA |
| INE-800-220V | 220V | EA |
Documentation
More in This Series
- Refrigerated Incubator Programmable With Window 286L
- General Purpose Incubator With Window 567L
- Refrigerated Incubator Programmable 143L With Window & Mk-161 Shaker
- Refrigerated Incubator Programmable 286L
- Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
- Refrigerated Incubator Programmable 143L
View all Laboratory Incubators →
Why Buy From LabSupplies.com
LabSupplies.com ships the INE800 directly from USA inventory as an authorized Yamato Scientific dealer. Every unit is a genuine factory product backed by the manufacturer warranty, ready to order without a quote request.
- Authorized Yamato Scientific dealer — genuine unit with full manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Lab-equipment specialists available for spec and configuration questions.
Frequently Asked Questions
What temperature range does the INE800 cover?
The INE800 operates from 0 to +60°C, with a setting range of -5 to +65°C. Forced-air convection and R134a refrigeration enable below-ambient cooling for cold-sensitive incubation and storage.
What is the chamber capacity and overall size?
Chamber capacity is 286 liters. The exterior measures 42 × 42 × 89 inches and the unit weighs 530 lbs, so confirm floor space, door clearance, and load rating before installation.
Is the incubator available for 220V power?
Yes. The INE800 is offered in both 115V (INE-800-115V) and 220V (INE-800-220V) configurations. Match the voltage to your facility power and verify circuit capacity.
What materials are used in the chamber construction?
The interior is stainless steel. Exterior panels are chromate-free electrogalvanized steel with a chemical-resistant baked finish, and insulation is non-CFC styrene foam.
How accurate is the temperature control?
Temperature accuracy is ±0.2°C with ±0.3°C fluctuation and ±0.5°C distribution during continuous operation at 37°C. PID microprocessor control manages the chamber via a Pt100Ω sensor.
What is the difference between the two INE800 models?
The only difference is supply voltage. INE-800-115V runs on 115V and INE-800-220V runs on 220V; chamber, capacity, temperature range, and construction are identical.
