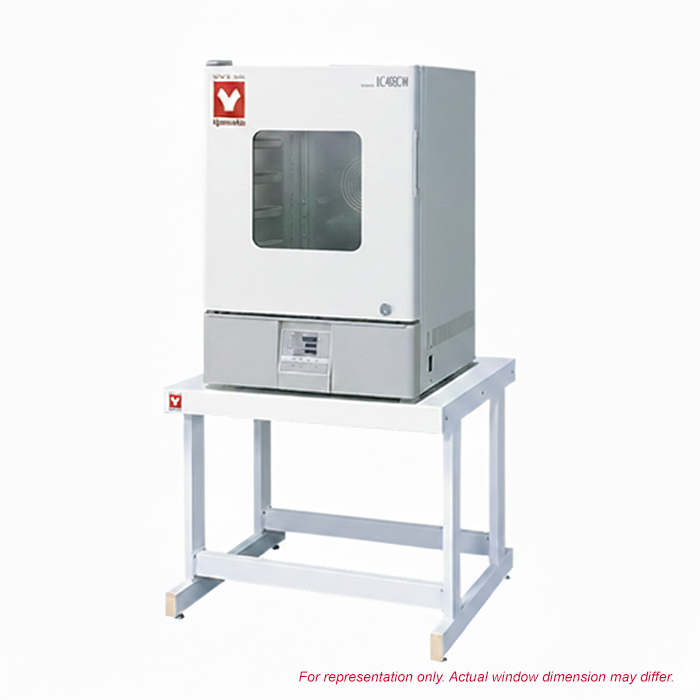

General Purpose Incubator With Window 97L Overview
The General Purpose Incubator With Window 97L (model IC403CW) from Yamato Scientific is a natural convection incubator offering 97 liters of chamber capacity across an operating range of ambient +5 to 80°C. LabSupplies.com, an authorized dealer, supplies this unit for routine culturing, drying, and sample conditioning. Its dual-door design lets technicians view contents through an observation window without opening the chamber and disturbing the internal atmosphere.
Stainless steel forms the interior, while a cold-rolled steel exterior carries a melamine resin baked finish for durability. Glass fiber insulation surrounds the chamber, and an air jacket distributes heat evenly to hold temperature distribution within ±1.0°C. A 0.3 kW iron-chrome wire heater drives the system, with a K-thermocouple sensor feeding PID control by microprocessor for ±0.5°C accuracy at 37°C.
Operators select between 115V (IC403CW) and 220V (IC413CW) versions to match site power. Exterior dimensions measure 36 × 36 × 43 inches and the unit weighs 204 lbs, placing it as a benchtop-class chamber that needs a sturdy surface. Country of origin is listed as CH. Self-diagnostic functions, automatic overheat prevention, and a key lock are standard.
Key Features
- Dual-door observation window: a reinforced glass inner door with a 250 × 280 mm window lets contents be viewed without releasing chamber air.
- Natural convection with air jacket: even, efficient heat distribution holds temperature distribution to ±1.0°C across the 97 L chamber.
- PID microprocessor control: K-thermocouple sensing delivers ±0.5°C accuracy at 37°C, set through a digital display and timer.
- Operation functions: fixed temperature, auto start/stop, and quick auto stop support unattended and scheduled runs.
- Safety devices: self-diagnostic checks for sensor, display, and measured-temperature errors plus automatic overheat prevention and key lock.
- Voltage options: IC403CW runs on 115V and IC413CW runs on 220V to match laboratory power supply.
How to Choose the Right Incubator
Matching an incubator to your workflow comes down to capacity, temperature performance, and the power available at your bench. Use these axes to confirm the IC403CW fits your protocol before ordering.
- Capacity: the 97 L chamber and 450 × 480 × 450 mm interior set how many plates, flasks, or samples you can run per cycle.
- Temperature range: an ambient +5 to 80°C span covers standard 37°C culturing through warmer drying and conditioning tasks.
- Control type: PID microprocessor control with a K-thermocouple gives ±0.5°C accuracy at 37°C for protocols that demand tight stability.
- Voltage: choose IC403CW (115V) or IC413CW (220V) to match your facility's circuits and avoid converters.
- Footprint and weight: 36 × 36 × 43 inches and 204 lbs require a rated bench or stand with clearance for the dual doors.
- Safety and monitoring: self-diagnostic functions, overheat prevention, and a key lock matter for unattended and shared-lab operation.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 97 L |
| Voltage | 115V |
| System | Natural convection |
| Operating Temperature Range | ambient +5 to 80°C *1 |
| Temperature Accuracy | ±0.5°C (at 37°C) *2 |
| Temperature Distribution | ±1.0°C *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass fiber |
| Operation Function | Fixed temperature, auto start/stop, quick auto stop |
| Safety Devices | Self-diagnostic functions (sensor error, display error, measured-temperature error); automatic overheat prevention |
| Heater | Iron-chrome wire heater, 0.3 kW |
| Internal Dimensions | 450 × 480 × 450 mm |
| Inner Door | Reinforced glass observation door (250 × 280 mm window) |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927494 |
| Shipping Weight | 204 lbs |
| Dimensions (L × W × H) | 36 × 36 × 43 in |
| Component Size | 97 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| IC-403CW | 115V | EA |
| IC-413CW | 220V | EA |
Documentation
More in This Series
- General Purpose Benchtop Incubator With Window 37L
- General Purpose Benchtop Incubator 37L
- General Purpose Incubator With Window 159L
- General Purpose Incubator With Window 318L
- Refrigerated Incubator Programmable 143L
- Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
View all Laboratory Incubators →
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every IC403CW ships as a genuine unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists stand ready for spec and configuration questions.
- Authorized dealer: genuine Yamato Scientific equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for technical and voltage questions.
- Voltage choice at checkout: select 115V or 220V to match your facility.
Frequently Asked Questions
What temperature range does the IC403CW incubator cover?
The IC403CW operates from ambient +5 to 80°C. PID microprocessor control with a K-thermocouple sensor holds ±0.5°C accuracy at 37°C and ±1.0°C temperature distribution across the chamber.
How large is the chamber and what are the interior dimensions?
The chamber holds 97 liters, with interior dimensions of 450 × 480 × 450 mm. Exterior dimensions measure 36 × 36 × 43 inches and the unit weighs 204 lbs.
What is the difference between the IC403CW and IC413CW?
Voltage is the only difference. The IC403CW runs on 115V and the IC413CW runs on 220V; both share the same 97 L capacity, temperature range, and features.
What materials are used in the interior and exterior?
The interior is stainless steel. Its exterior is cold-rolled steel plate with a melamine resin baked finish, and glass fiber insulation surrounds the chamber.
Can I view samples without opening the incubator?
Yes. A reinforced glass inner door with a 250 × 280 mm observation window lets you view contents while the dual-door system keeps the chamber atmosphere undisturbed.
What safety features are included?
Standard safety devices include self-diagnostic functions for sensor, display, and measured-temperature errors, plus automatic overheat prevention and a key lock for shared or unattended use.
