Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of this model to comply with EPA and CARB refrigerant requirements.
Why order the IN804W from LabSupplies.com

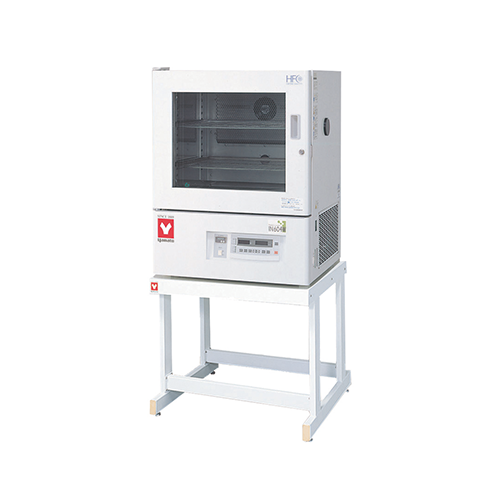

Refrigerated Incubator Programmable With Window 286L Overview
Buyers select 115V or 220V to match site power. Yamato lists external dimensions (W × D × H) of 710 × 645 × 1630 mm (28.0 × 25.4 × 64.2 in); packed for shipping it measures 39 × 39 × 78 in at 475 lb. Manufactured in Japan, it is backed by ISO 9001:2015 and ISO 14001:2015 documentation.
Key Features
- PID temperature control: ±0.3°C accuracy in continuous operation, with programmable setpoints.
- Temperature distribution: ±1.0°C uniformity at 37°C in continuous operation.
- Triplex glass door: dual outer glazing plus inner door for heat retention, with a W516 × H416 mm observation window and key.
- Refrigeration and heating: air-cooled hermetic 300 W compressor (R404A) paired with a 750 W iron-chrome wire heater.
- Defrost management: manual ON / auto OFF defrost with timer and cycle operation.
- Dual sensing: Pt100Ω controller sensor plus K-thermocouple overheat prevention.
How to Choose the Right Incubator
Refrigerated incubators differ by chamber size, achievable temperature range, and control sophistication. Match these axes to your protocol.
- Temperature range: the −10 to +50°C span enables sub-ambient work that heat-only units cannot reach.
- Control type: PID control with programmable steps supports ramped or cyclic profiles rather than single fixed setpoints.
- Voltage: select 115V or 220V to match available site power and avoid transformer add-ons.
- Footprint: Yamato lists external dimensions (W × D × H) of 710 × 645 × 1630 mm (28.0 × 25.4 × 64.2 in); packed for shipping it measures 39 × 39 × 78 in at 475 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 286 L |
| Voltage | 115V |
| System | Forced air convection (refrigerated) |
| Operating Temperature Range | -10 to +50°C *1 |
| Temperature Accuracy | ±0.3°C (continuous operation) *2 |
| Temperature Distribution | ±1.0°C (continuous operation, at 37°C) *2 |
| Temperature Control System | PID control |
| Sensor | Pt100Ω (controller); K-thermocouple (overheat prevention) |
| Interior Material | Stainless steel |
| Exterior Material | Chrome-free electrogalvanized steel plate, chemical-proof baked finish |
| Heat Insulation | Styrene foam |
| Defrost | Manual ON / auto OFF; timer; cycle operation |
| Refrigeration | Air-cooled hermetic compressor, 300 W (R404A) |
| Heater | Iron-chrome wire heater, 750 W |
| Observation Window | W516 × H416 mm (with key) |
| Material | Chrome-free electro galvanized chemical proof bake finished steel plate (exterior) Stainless steel (furnace) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059930944 |
| Shipping Weight | 475 lbs |
| External Dimensions (W × D × H) | 710 × 645 × 1630 mm (28.0 × 25.4 × 64.2 in) |
| Shipping Dimensions (L × W × H) | 39 × 39 × 78 in |
| Component Size | 286 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare IN Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| IN604W | 143 L | 710 × 645 × 913 mm (28.0 × 25.4 × 35.9 in) | 310 lbs |
| IN804W (this model) | 286 L | 710 × 645 × 1630 mm (28.0 × 25.4 × 64.2 in) | 475 lbs |
All models in this group share: temperature range -10 to +50°C; accuracy ±0.3°C (continuous operation).
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| IN-804W-115V | 115V | 797059930944 |
| IN-804W-220V | 220V | 797059930951 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | IN-804W-115V, IN-804W-220V |
| UNSPSC | 41104423 — Refrigerated incubators |
| HTS code | 8419.89.9585 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato IN Series Refrigerated Incubator brochure (PDF, 1.0 MB)
- Yamato Scientific America product page
More in This Series
- Yamato IC903CW General Purpose Incubator With Window 567L
- Yamato INE800 Refrigerated Eco Incubator Programmable 286L
- Yamato IN604WMK Refrigerated Incubator Programmable 143L With Window & MK-161 Shaker
- Yamato IN804 Refrigerated Incubator Programmable 286L
- Yamato IN604W Refrigerated Incubator Programmable With Window & Shaker Power Hook Up 143L
- Yamato IN604 Refrigerated Incubator Programmable 143L
View all Laboratory Incubators →
Frequently Asked Questions
What is the operating temperature range of the IN804W?
The IN804W operates from −10 to +50°C. This sub-ambient capability supports low-temperature tests and environmental conditioning that heat-only incubators cannot perform.
How large is the chamber and the overall unit?
The chamber holds 286 L. Yamato lists external dimensions (W × D × H) of 710 × 645 × 1630 mm (28.0 × 25.4 × 64.2 in); packed for shipping it measures 39 × 39 × 78 in at 475 lb.
What voltage options are available?
Two voltage configurations are offered: 115V (IN-804W-115V) and 220V (IN-804W-220V). Select the one matching your site power; both share identical specifications otherwise.
How accurate and uniform is the temperature control?
Temperature control holds ±0.3°C accuracy in continuous operation. Distribution uniformity is ±1.0°C at 37°C, managed by PID control with a Pt100Ω sensor.
What materials are used in the interior and exterior?
The interior is stainless steel. The exterior uses chrome-free electrogalvanized steel plate with a chemical-proof baked finish, and styrene foam provides insulation.
What is the difference between IN-804W-115V and IN-804W-220V?
IN-804W-115V is the 115V configuration. IN-804W-220V is the 220V configuration. Order the catalog number that matches your facility's electrical supply.
What is the UNSPSC code for the Yamato IN804W?
The Yamato IN804W is classified under UNSPSC 41104423 (refrigerated incubators).
Where is the Yamato IN804W manufactured?
Yamato Scientific lists Japan as the country of origin for the IN804W.
Is there a spec sheet or brochure for the Yamato IN804W?
Yes. The Yamato IN Series Refrigerated Incubator brochure (1.0 MB PDF) is linked under Documents & Downloads on this page.
How does the Yamato IN804W compare with the other IN Series models?
Yamato builds this IN Series line in 2 sizes: 143 L (IN604W) and 286 L (IN804W). All share temperature range -10 to +50°C and accuracy ±0.3°C (continuous operation). The comparison table on this page lists capacity, exterior and shipping weight side by side.
