Forced Convection Oven Programmable Energy Saving 150L Overview

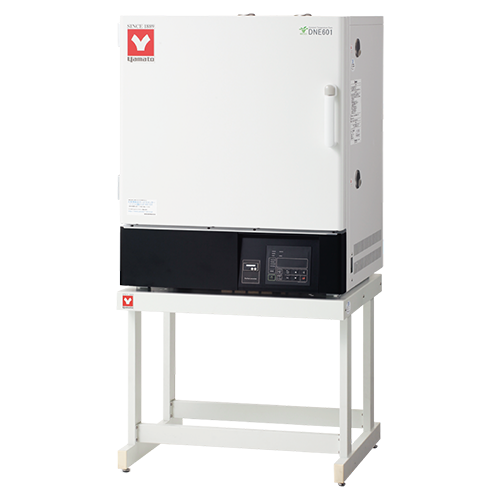

The Forced Convection Oven Programmable Energy Saving 150L (model DNE601) from Yamato Scientific is a 150 L forced convection laboratory oven operating from ambient +20°C up to 210°C. LabSupplies.com, an authorized dealer, supplies this energy-saving eco-oven engineered to cut power consumption and CO₂ emission while holding precise temperatures across the full range.
Construction pairs a stainless steel interior chamber with a chrome-free electrogalvanized carbon steel exterior finished in a chemical-proof baking coating. A high-precision controller drives temperature performance and displays CO₂ and power discharge, while program operation supports up to 99 steps and 99 repeatable patterns for unattended multi-stage protocols.
Offered in 115V (DNE601) and 220V (DNE611) configurations to match your site power, each unit measures 36 × 36 × 48 inches and weighs 260 lbs. Manufactured in Japan, the oven is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 quality and environmental certifications.
Key Features
- Energy-saving design: eco-oven engineered for lower power consumption and reduced CO₂ emission.
- Programmable control: high-precision controller runs up to 99 steps across 99 repeatable patterns for multi-stage protocols.
- Performance display: onboard readout of CO₂ and power discharge alongside temperature.
- Support functions: calibration offset, power-failure recovery mode, and save/access of user setting information come standard.
- Data access: cable holes allow data acquisition from internal test devices.
- Expandable platform: various option settings enable straightforward system upgrades.
How to Choose the Right Convection Oven
Selecting a forced convection oven comes down to matching chamber size, temperature range, control sophistication, and site infrastructure to your workflow. Use the criteria below to confirm the DNE601 fits your application before ordering.
- Capacity: a 150 L chamber suits mid-to-high throughput drying, curing, and sterilization batches; confirm your load volume against available interior space.
- Temperature range: ambient +20°C to 210°C covers most labware drying and material conditioning; verify your protocol's setpoint sits within this band.
- Control type: programmable 99-step, 99-pattern operation favors recurring multi-stage protocols over simple single-setpoint work.
- Voltage: choose 115V (DNE601) or 220V (DNE611) to match your facility's available circuit.
- Footprint: plan for a 36 × 36 × 48 inch unit weighing 260 lbs and confirm bench or floor space and load rating.
- Sustainability: energy-saving operation and CO₂/power discharge display support labs tracking environmental metrics.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 150 L |
| Max Temperature | 210°C |
| Voltage | 115V |
| Circulation Method | Forced convection (energy-saving) |
| Temperature Control System | PID control by microcomputer |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Ecological energy-saving design; variable air-flow |
| Operating Temperature Range | ambient +20 to 210°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet coated w/ chemical-proof baking finish (exterior) Stainless steel plate (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926572 |
| Shipping Weight | 260 lbs |
| Dimensions (L × W × H) | 36 × 36 × 48 in |
| Component Size | 150 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DNE-601 | 115V | EA |
| DNE-611 | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DNE601 and DNE611 ships as a genuine factory unit covered by the manufacturer warranty. Order directly from in-stock USA inventory and reach our lab-equipment specialists for any specification question.
- Authorized Yamato Scientific dealer: genuine units with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Voltage options: 115V (DNE601) and 220V (DNE611) available to match your site power.
- Specialist support: dedicated lab-equipment team for spec and configuration questions.
Frequently Asked Questions
What is the maximum operating temperature of the DNE601 convection oven?
The DNE601 operates from ambient +20°C up to a maximum of 210°C. This forced convection range covers laboratory drying, curing, and material conditioning protocols.
What is the chamber capacity and overall size of this oven?
The chamber capacity is 150 L. The complete unit measures 36 × 36 × 48 inches (L × W × H) and weighs 260 lbs, so plan bench or floor space and load rating accordingly.
What is the difference between the DNE601 and DNE611?
Voltage is the only difference. The DNE601 is the 115V model and the DNE611 is the 220V model; both share the 150 L capacity, 210°C maximum temperature, and programmable control.
What materials are used in the oven's construction?
The interior chamber is stainless steel plate. The exterior is chrome-free electrogalvanized carbon steel coated with a chemical-proof baking finish for durability.
Does this oven support programmable multi-stage operation?
Yes. The high-precision controller runs program operation with up to 99 steps and 99 repeatable patterns, plus support functions including calibration offset and power-failure recovery mode.
Where is the Yamato DNE601 manufactured and is it certified?
The oven is manufactured in Japan. Yamato Scientific holds ISO 9001:2015 quality and ISO 14001:2015 environmental management certifications.
