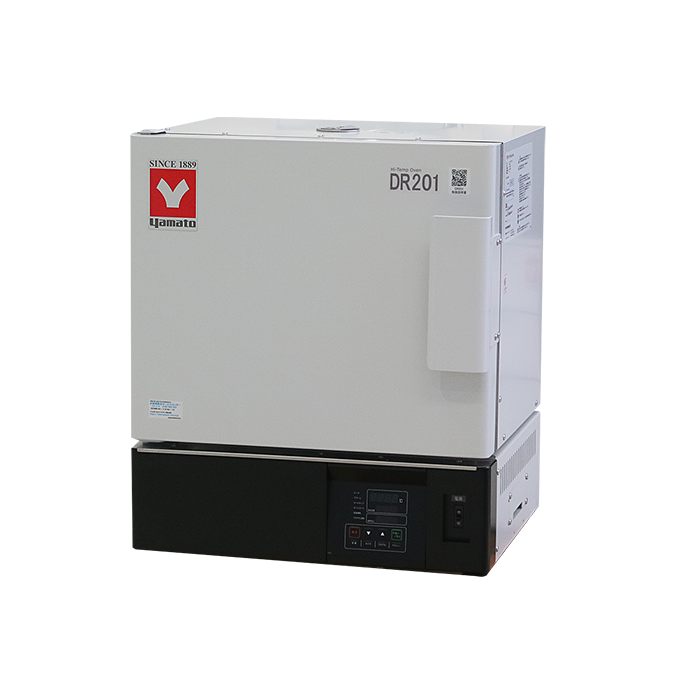

High Temperature Natural Convection Oven Programmable 13.75L Overview
The High Temperature Natural Convection Oven Programmable 13.75L (model DR201), supplied by LabSupplies.com as an authorized Yamato Scientific dealer, is a programmable gravity convection unit operating from 300°C to 700°C across a 13.75 L chamber. Engineers deploy it as a constant temperature oven, a drying oven, and an electric furnace for ashing or sintering.
Interior surfaces use stainless steel SUS304, while the exterior carries a steel plate melamine resin coating. High-accuracy control holds the setpoint across the elevated temperature band. A high-operability controller manages temperature, measured temperature, and overheat-prevention values through the operation menu and ▲/▼ keys.
Available in 115V and 220V configurations, the oven measures 28 × 28 × 34 inches and weighs 111 lbs. Manufactured in Japan, this DR201 carries ISO 9001:2015 and ISO 14001:2015 certifications. Confirm footprint and shipping weight against bench space and freight requirements before installation.
Key Features
- Wide temperature range: high-accuracy control from 300°C to 700°C.
- Triple-function design: serves as a constant temperature oven, a drying oven, and an electric furnace for ashing and sintering.
- Digital setup: temperature, measured temperature, and overheat-prevention temperature are set via the operation menu and ▲/▼ keys.
- Programmable operation: supports fixed temperature, quick auto stop, auto stop, and auto start modes.
- Durable construction: SUS304 stainless steel interior with a melamine resin coated steel plate exterior.
- High-operability controller: menu-driven interface for repeatable, technician-friendly programming.
How to Choose the Right Convection Oven
Selecting a high-temperature convection oven comes down to matching the chamber, thermal range, and site power to your workflow. Weigh these axes before specifying a unit.
- Temperature range: verify the oven reaches your process setpoint; the DR201 covers 300°C to 700°C for ashing, sintering, and high-temperature drying.
- Capacity: a 13.75 L chamber suits small-batch and bench workflows; size the chamber to your largest sample or fixture.
- Control type: programmable digital control with auto start and auto stop supports unattended, repeatable runs.
- Voltage: confirm 115V or 220V availability against your facility's circuit and outlet.
- Footprint and weight: at 28 × 28 × 34 inches and 111 lbs, ensure adequate bench support and clearance.
- Material compatibility: an SUS304 stainless interior resists corrosion during demanding thermal cycles.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 13.75 L |
| Voltage | 115V |
| Circulation Method | Natural convection |
| Temperature Accuracy | ±5°C (at 700°C) *2 |
| Temperature Distribution | ±25°C (at 700°C) *2 |
| Temperature Gradient | 30°C (at 700°C) |
| Temperature Control System | PID control by microcomputer |
| Sensor | K-thermocouple |
| Heater | Iron-chrome wire heater, 1.3 kW |
| Interior Material | Stainless steel sheet metal |
| Exterior Material | Chromium-free electrogalvanized steel sheet, baked-on finish |
| Heat Insulation | Ceramic fiber / rock wool |
| Safety Devices | Self-diagnostic functions (automatic overheat prevention, sensor failure, heater disconnection, SSR short-circuit, relay/memory error); overcurrent leakage breaker; overheat prevention device |
| Material | Steel plate melamine resin coating (exterior) Stainless steel SUS304 (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932146 |
| Shipping Weight | 111 lbs |
| Dimensions (L × W × H) | 28 × 28 × 34 in |
| Component Size | 13.75 L |
*2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DR-201-115V | 115V | EA |
| DR-201-220V | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
Purchase the DR201 directly from LabSupplies.com and receive a genuine Yamato Scientific unit backed by the manufacturer warranty. Our lab-equipment specialists answer spec and configuration questions so your order ships correctly the first time.
- Authorized Yamato Scientific dealer: genuine units with full manufacturer warranty.
- In stock: ready for processing without backorder delays.
- Ships from USA inventory: domestic fulfillment for faster transit.
- Dedicated specialists: lab-equipment experts available for spec and voltage questions.
Frequently Asked Questions
What is the temperature range of the Yamato DR201?
The DR201 operates from 300°C to 700°C with high-accuracy control. This range supports constant-temperature work, high-temperature drying, ashing, and sintering.
What is the chamber capacity and how large is the oven?
The chamber holds 13.75 L. Exterior dimensions are 28 × 28 × 34 inches and the unit weighs 111 lbs, so confirm bench support and clearance before installation.
What voltage options are available?
Two voltage configurations are offered: a 115V version and a 220V version. Select the one that matches your facility's available circuit and outlet.
What materials are used in construction?
The interior is stainless steel SUS304 for corrosion resistance during thermal cycles. The exterior uses a steel plate with a melamine resin coating.
Can the DR201 be used for ashing and sintering?
Yes. The DR201 functions as a constant temperature oven, a drying oven, and an electric furnace, making it suitable for ashing, sintering, and high-temperature drying.
Is the oven programmable for unattended runs?
Yes. Programmable operation includes fixed temperature, quick auto stop, auto stop, and auto start, with digital setting of temperature and overheat-prevention values via the menu and ▲/▼ keys.
