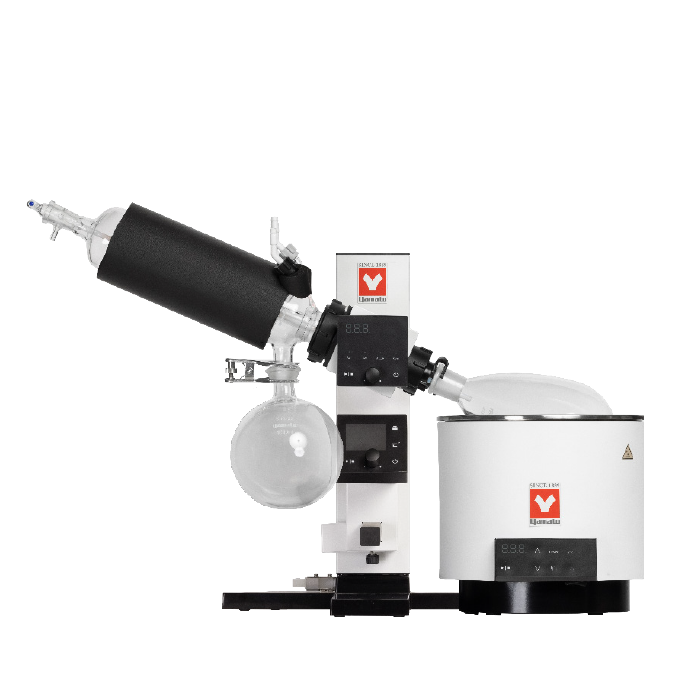

Rotary Evaporator (Main Unit) Digital With Vacuum Regulator Overview
The Rotary Evaporator (Main Unit) Digital With Vacuum Regulator (model REV202M) is a benchtop rotary evaporator from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Rotation spans 5–315 rpm with evaporation throughput up to 23 ml/min, supporting evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml.
Engineering centers on a DC brushless servo motor driving forward, reverse, and auto-inversion modes. A double corrugated condenser provides 0.143 m² of cooling surface, while the manual spring-loaded jack raises glassware to 200 mm with stepless, one-touch locking. FKM seals ship as standard; PTFE seals are recommended for ketone and ether solvents.
Operation runs across a 5–35°C ambient range on a 100–115V, 50/60 Hz, 1 A supply. Net weight is roughly 10.5 kg, keeping the unit manageable on a standard bench. Manufactured in China, the system integrates a VR-102S vacuum controller with a 2.3-inch color LCD and a 0–1013 hPa setting range.
Key Features
- Digital rotation control: 5–315 rpm with a control knob, digital speed display (8 brightness levels), and forward, reverse, and auto-inversion modes driven by a DC brushless servo motor.
- Integrated VR-102S vacuum controller: 2.3-inch color LCD, 0–1013 hPa setting range, and manual, gradient, and auto modes with hold, auto-leak, and auto-clean functions.
- Manual spring-loaded lift: raises glassware to a 200 mm maximum height with stepless adjustment and one-touch locking.
- Double corrugated condenser: delivers 0.143 m² of cooling surface for efficient solvent recovery.
- Configurable set inversion: glassware and bath mount on either the left or right side to suit bench layout.
- Layered safety: motor overload, over-/low-voltage, and speed-sensor-error protection, plus controller pressure-sensor, leak, and high-pressure error detection with auto-leak on fault.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator comes down to matching distillation volume, solvent chemistry, and bench power to your daily workflow. Review these axes .
- Capacity: confirm flask compatibility against your batch sizes — this unit accepts 50–2000 ml evaporation flasks and 100–2000 ml receiving flasks, with an optional reducer for smaller flasks.
- Rotation range: a 5–315 rpm range with forward, reverse, and auto-inversion modes covers gentle concentration through faster evaporation up to 23 ml/min.
- Control type: digital speed control and an integrated vacuum controller add repeatability through manual, gradient, and auto pressure profiles versus manual-only setups.
- Voltage: choose the 115V (REV202M) or 220V (REV212M) build to match your facility power and avoid step-up transformers.
- Solvent compatibility: standard FKM seals suit most work, while PTFE seals are advised for ketone and ether solvents.
- Footprint and lift: a roughly 10.5 kg unit with a 200 mm manual jack fits standard benches and simplifies flask changes.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | Rotary evaporator main unit with vacuum controller (digital, manual lift) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Vacuum Controller | Integrated VR-102S — 2.3" color LCD, vacuum setting range 0–1013 hPa |
| Vacuum Control Valve | OVR10 solenoid valve |
| Vacuum Control Modes | Manual / Gradient / Auto, with hold, auto-leak and auto-clean |
| Vacuum Controller Safety | Communication, pressure-sensor, memory, leak and high-pressure error detection with auto-leak on fault |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Net Weight | ~10.5 kg |
| Country of Origin | China |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| REV-202M-A | 115V | EA |
| REV-212M-A | 220V | EA |
More in This Series
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
Why Buy From LabSupplies.com
LabSupplies.com ships this Yamato Scientific rotary evaporator directly from USA inventory, so your order moves the moment it is placed. Our lab-equipment specialists answer spec questions before purchase and stand behind every genuine unit.
- Authorized Yamato Scientific dealer: genuine main unit backed by manufacturer warranty.
- In stock: ready to order now, no backorder wait.
- Ships from USA inventory: domestic dispatch on placed orders.
- Specialist support: dedicated lab-equipment team for configuration and spec questions.
Frequently Asked Questions
What is the operating temperature range of the REV202M rotary evaporator?
The unit operates across a 5–35°C ambient temperature range. This rating reflects the surrounding bench environment for safe, reliable operation.
What flask sizes does this rotary evaporator accept?
It accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer supports smaller evaporation flasks.
Which voltage options are available for this rotary evaporator?
Two builds are offered: the REV202M runs on 100–115V and the REV212M runs on 220V, both at 50/60 Hz and 1 A. Choose the model that matches your facility power.
What vacuum seals are used, and are they solvent compatible?
FKM seals are fitted as standard. PTFE seals are recommended for ketone and ether solvents to maintain sealing performance.
What rotation speeds and modes does the motor support?
Rotation is adjustable from 5 to 315 rpm. A DC brushless servo motor drives forward, reverse, and auto-inversion modes with a digital display and control knob.
How does the integrated vacuum controller work?
The unit includes a VR-102S vacuum controller with a 2.3-inch color LCD and a 0–1013 hPa setting range. It offers manual, gradient, and auto control modes plus hold, auto-leak, and auto-clean functions.
