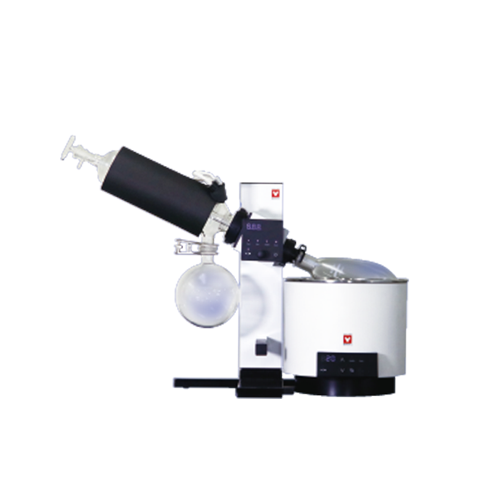

Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A Overview
The Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A is a complete RE212A rotary evaporator system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This set pairs the RE212A main unit with Glassware Set A and a 5 L BM312A water bath heating to 90°C. Solvent recovery reaches up to 23 ml/min across a 5–315 rpm rotation range.
Glassware Set A uses a traditional diagonal condenser with a double corrugated tube delivering 0.143 m² of cooling surface, intended for use with an external chiller. A DC brushless servo motor drives forward, reverse, and auto-inversion modes. Manual spring-loaded jack travel reaches 200 mm with stepless, one-touch lock positioning. Set inversion lets glassware and bath mount left or right.
Power input is 200–230V single-phase, 50/60 Hz at 1 A through a round terminal without plug. The unit ships at 90 lbs with a 36 × 36 × 27 in carton footprint and originates from Switzerland. Exterior construction uses chromium-free electrogalvanized steel with baked-on finish, anodized aluminum, and glass-fiber-reinforced polybutylene terephthalate resin.
Key Features
- Glassware Set A: traditional diagonal condenser with double corrugated tube and 0.143 m² cooling surface, designed for chiller-assisted condensation.
- Rotation control: 5–315 rpm with forward, reverse, and auto-inversion modes, driven by a DC brushless simple-servo motor.
- Manual lift jack: spring-loaded mechanism with 200 mm stepless travel and one-touch lock for fast flask raising.
- Set inversion design: glassware and bath mount on either side to suit dominant hand and bench location.
- BM312A water bath: 5 L capacity (Φ240 × H119 mm), RT +10°C to 90°C, ±1.0°C accuracy, with 2A service outlet.
- Layered safety: motor overload, over/low-voltage and speed-sensor protection, plus bath overheat prevention, upper-limit error detection, and overcurrent fuse.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator means matching solvent load, throughput, and site power to the right glassware and bath configuration. Use these axes to confirm the RE212A system fits your workflow.
- Capacity: evaporation flasks from 50–2000 ml and receiving flasks from 100–2000 ml define batch size; confirm your typical volumes fall in range.
- Bath temperature: the BM312A heats from RT +10°C to 90°C at ±1.0°C, suitable for water-bath distillation of common solvents.
- Condenser type: Glassware Set A uses a diagonal condenser meant to run with an external chiller, so factor in chiller availability.
- Voltage and power: this set requires 200–230V single-phase, 50/60 Hz; verify bench circuits match the round-terminal input.
- Footprint and handedness: set inversion allows left or right mounting, so plan bench space against the 36 × 36 × 27 in shipping size.
- Solvent chemistry: FKM vacuum seals ship standard, with PTFE recommended for ketone or ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | RE-212 main unit + Glassware A + water bath |
| Glassware Set | Set A — traditional diagonal condenser (use with chiller) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Water bath |
| Bath Model | BM-312-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928026 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-212-AW2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com supplies the RE212A system as an authorized Yamato Scientific dealer, so every order ships as a genuine factory unit with manufacturer warranty intact. Place your order directly and our lab-equipment specialists are available for configuration and spec questions.
- Authorized Yamato Scientific dealer: genuine equipment backed by the full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for glassware, bath, and chiller pairing questions.
Frequently Asked Questions
What temperature range does the BM312A water bath reach?
The BM312A water bath heats from RT +10°C to 90°C with ±1.0°C accuracy. It holds approximately 5 L (Φ240 × H119 mm) and includes a 2A service outlet.
What flask sizes are compatible with the RE212A?
The RE212A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer supports smaller evaporation flasks.
What voltage and power does this system require?
This set runs on 200–230V single-phase, 50/60 Hz at 1 A. Power connects through a round terminal supplied without a plug, so confirm your bench circuit before installation.
What rotation speed and evaporation rate does the unit deliver?
Rotation ranges from 5 to 315 rpm with forward, reverse, and auto-inversion modes. Evaporation capacity reaches up to 23 ml/min, driven by a DC brushless servo motor.
Does Glassware Set A require an external chiller?
Yes. Glassware Set A uses a traditional diagonal condenser with a double corrugated tube and 0.143 m² cooling surface, designed to operate with an external chiller.
What vacuum seal material is used, and what about aggressive solvents?
FKM vacuum seals are standard on this unit. PTFE seals are recommended when working with ketone or ether solvents to maintain sealing performance.
